SANYU SY5000 Series - Wiring and Terminal Connections; Basic Running Wiring Diagram

12

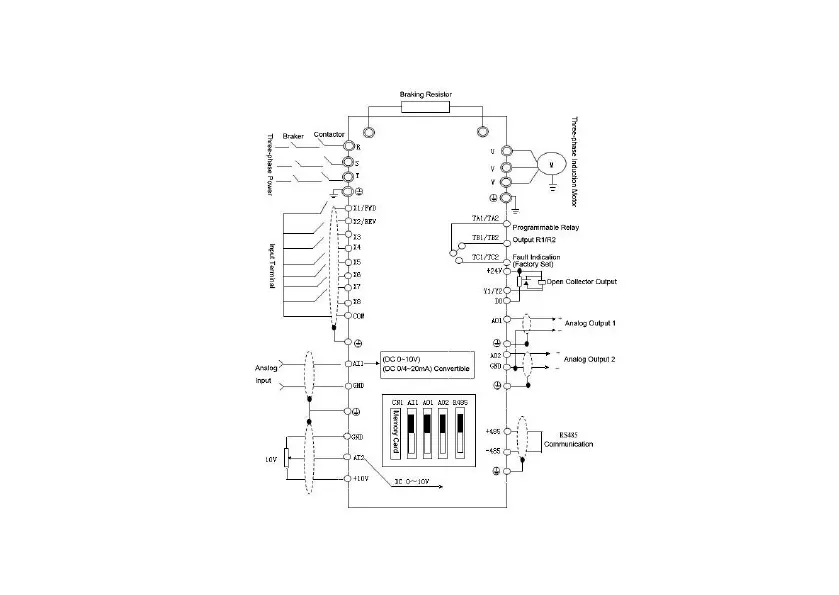

2.5 Basic Running Wiring
The wiring parts of VFD include major loop and control loop. Open the cover of I/O terminals, users can see the major
loop terminal and control loop terminal, and must conduct the wiring according to the following diagram.
