Saplings Kerry cot - Fittings and Hardware Identification; Assembly Instructions; Stage 1: Attach Fixed Side to Ends; Stage 2: Install Mattress Base

Fig 3

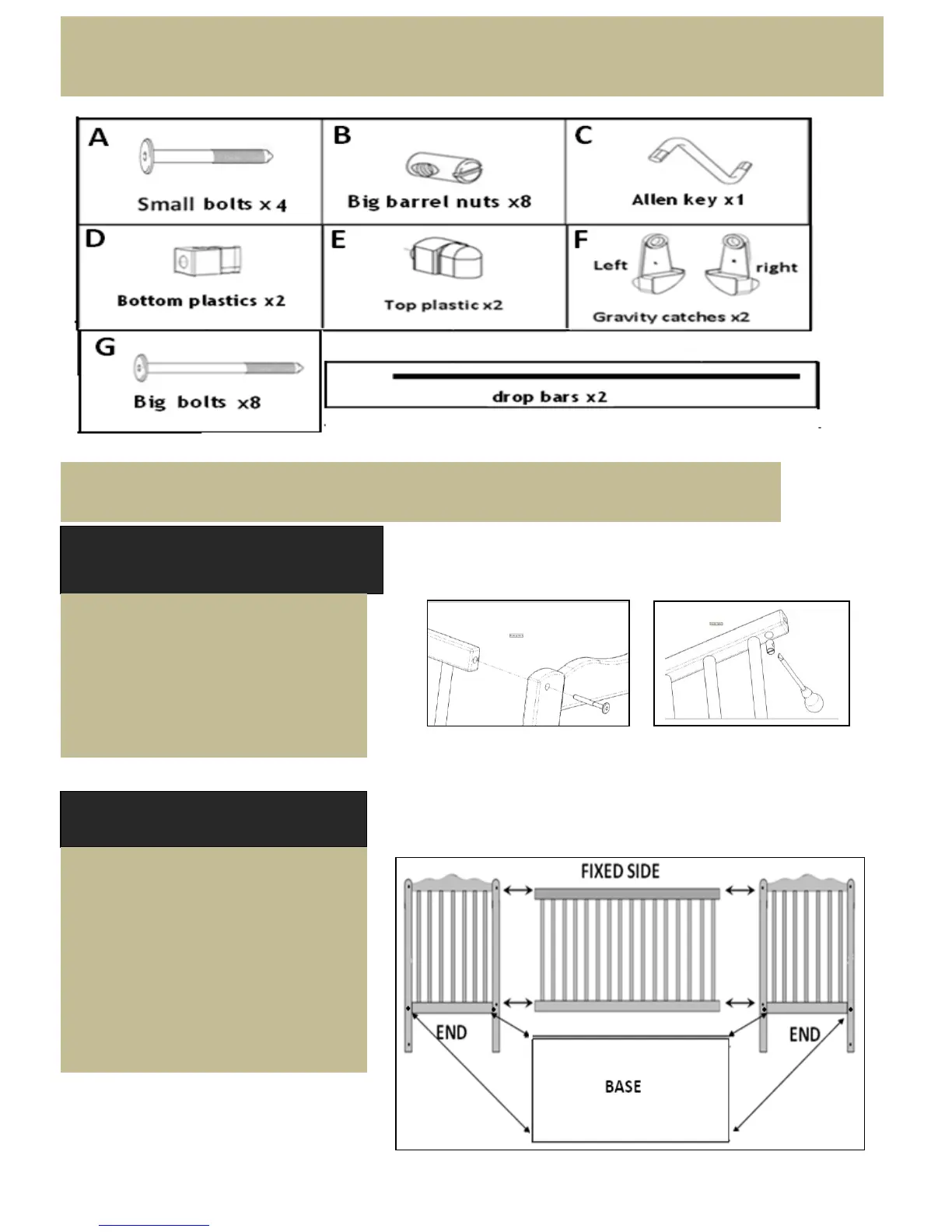

Components–fittings please check all fittings are present
Assembly instructions
Stage 1 fixed side to ends
Secure fixed side (part 3) to
the cot ends (part 1) using
the bolts (part G) and nuts
(part B) as in (fig. 1 & 2)
Fig 1
Fig 2
Stage 2 bases to ends
Place the mattress base
(part 4) in position (Fig. 3).
(Making sure this way up
sticker in on top of base)
Using the bolts (part G) and
barrel nuts, (part B) secure
to end. (See fig 3)
