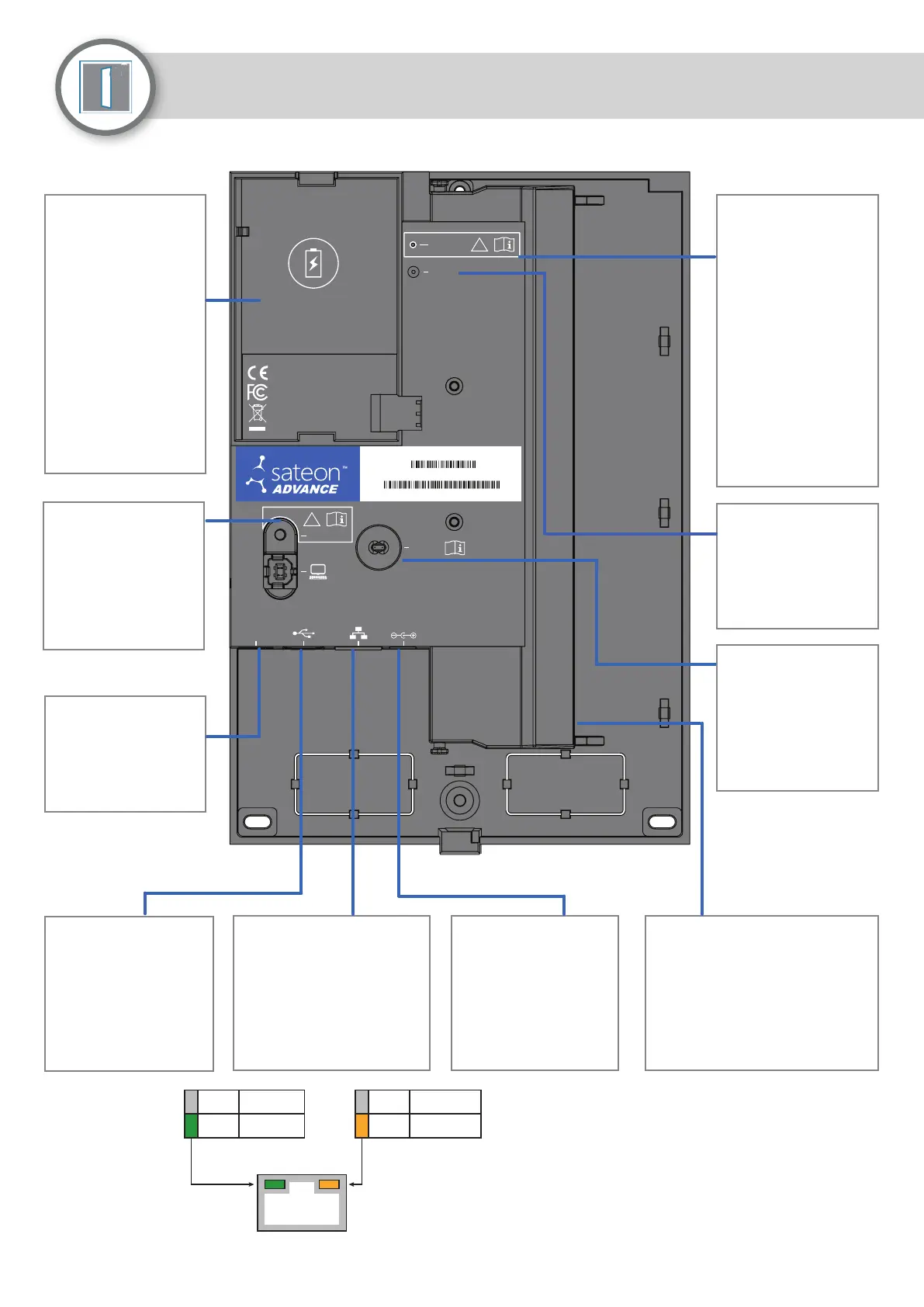

MAC ADDRESS
0001CE20001
SAT-ADV-C-MLT-00000001
Load/Clear
Status
Reset
!
!
12V 5A MAX
RS-485
A B S
Optical
Tamper
Sateon Single Tampo Printing 1v0
Battery
An optional Lithium
Polymer 6,000mAh
battery may be
used to provide a
battery back-up
service during power
outages.
Only the battery
supplied by
Grosvenor (Part No.
SAT-ADV-BAT-S) may
be used.
See Notes on page 4.
Load/Clear
Used to reset
confi guration data.
Can be used in three
diff erent ways; see
Notes on page 4.
Reset
The Reset button
triggers a complete
system reboot
in the case of an
unresponsive system.
It is recessed to
prevent accidental
activation and can
be depressed using a
suitable tool or a pen.
Warning: Use ony
when requested by
Grosvenor Technical
Support.
Optical Tamper
No connection is
needed; the optical
tamper is operational
when the case is
closed.
RS485 Port
Used for host comms
when RS485 is used to
connect controllers.
See page 5.
Ethernet Port
For IP host comms and
required for confi guration.
10/100 BASE-T
Full duplex, POE/POE+
Ethernet Port indicators
are shown below.
Status LED
The Controller Status
LED reports the
controller state.
See Notes on page 4.
Power In
12V DC 5A Max
For full details of
power options and
requirements, see
page 3.
USB Ports
Two USB 2.0 Type A
ports; intended for
Grosvenor-approved
USB products only.
Can be used to update
controller fi rmware.
Blade Connection
One 2 Door Blade or one I/O
Blade can be installed. See Door
Blade Installation Guide for details
of confi guring doors and locks.
See I/O Blade Installation Guide
for details of confi guring extra
inputs and outputs.
Flashes for
Ethernet activity
No Activity
Amber
O
100 Mbps
No Link
Green
O
Page 2
