Planning, transport, installation
LASERTEC 40
Page 47

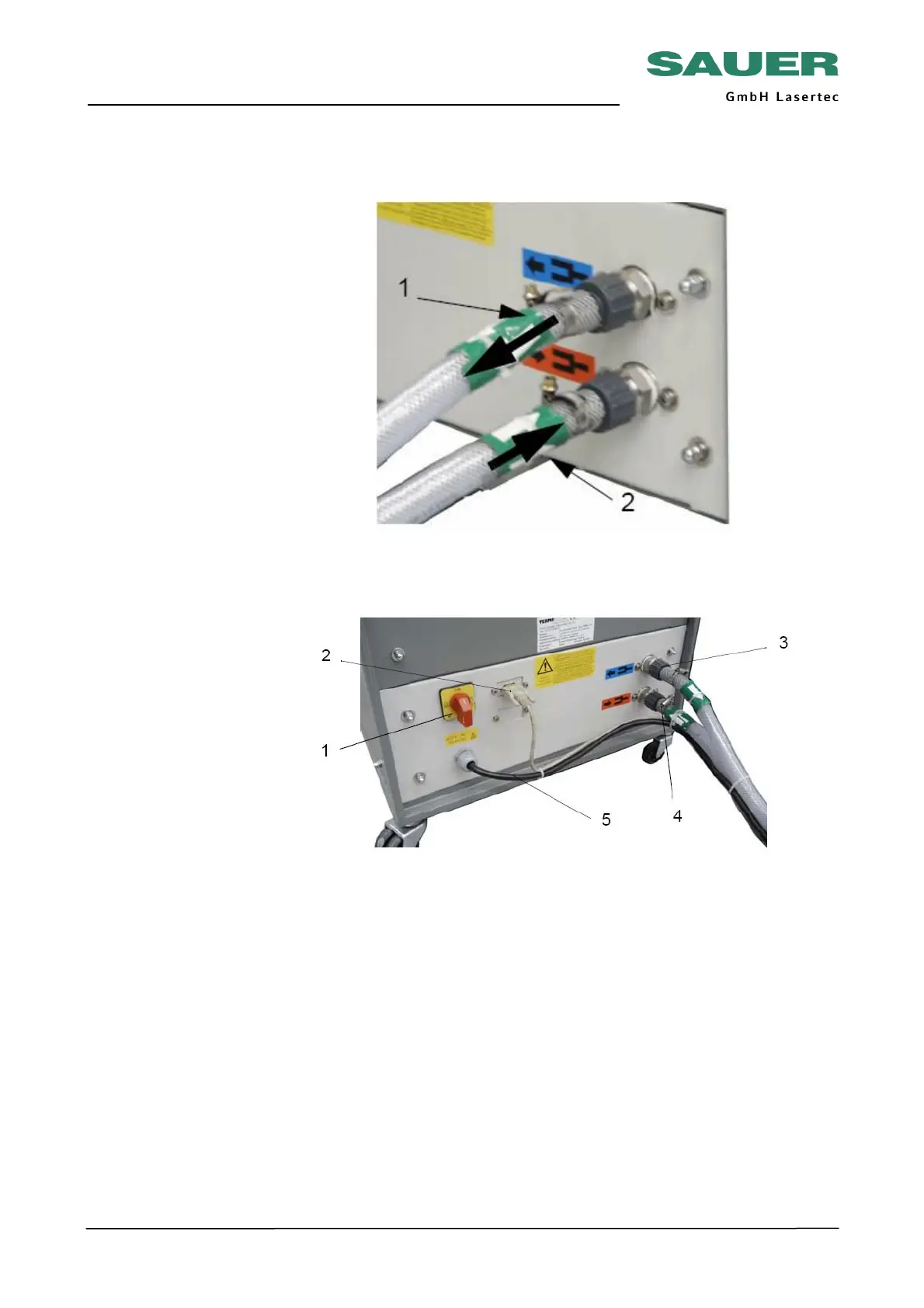

1 Water feeder line (to laser) BLUE
2 Water return line (from laser) RED
• Install cooling water inlet and outlet below the service door and
connect to the water-air cooler.
1 Power switch
2 Serial data cable
3 Water feeder (to laser) BLUE
4 Water return line (from laser) RED
5 Voltage supply 3x 400V 50/60 Hz
