Planning, transport, installation
LASERTEC 40
Page 58
Fluid connection for the CO
2
-jet cleaning system option
Compressed air
Fluid condition:
• oil-free
• dry, pressure dew point -40°C or better
• Pressure range 6 – 16 bar
• Typical operating pressure and consumption: 15 bar and 550 l/min
(approx. 35m³/h)
• Connection to standard compressed air supply (NW 7,2)

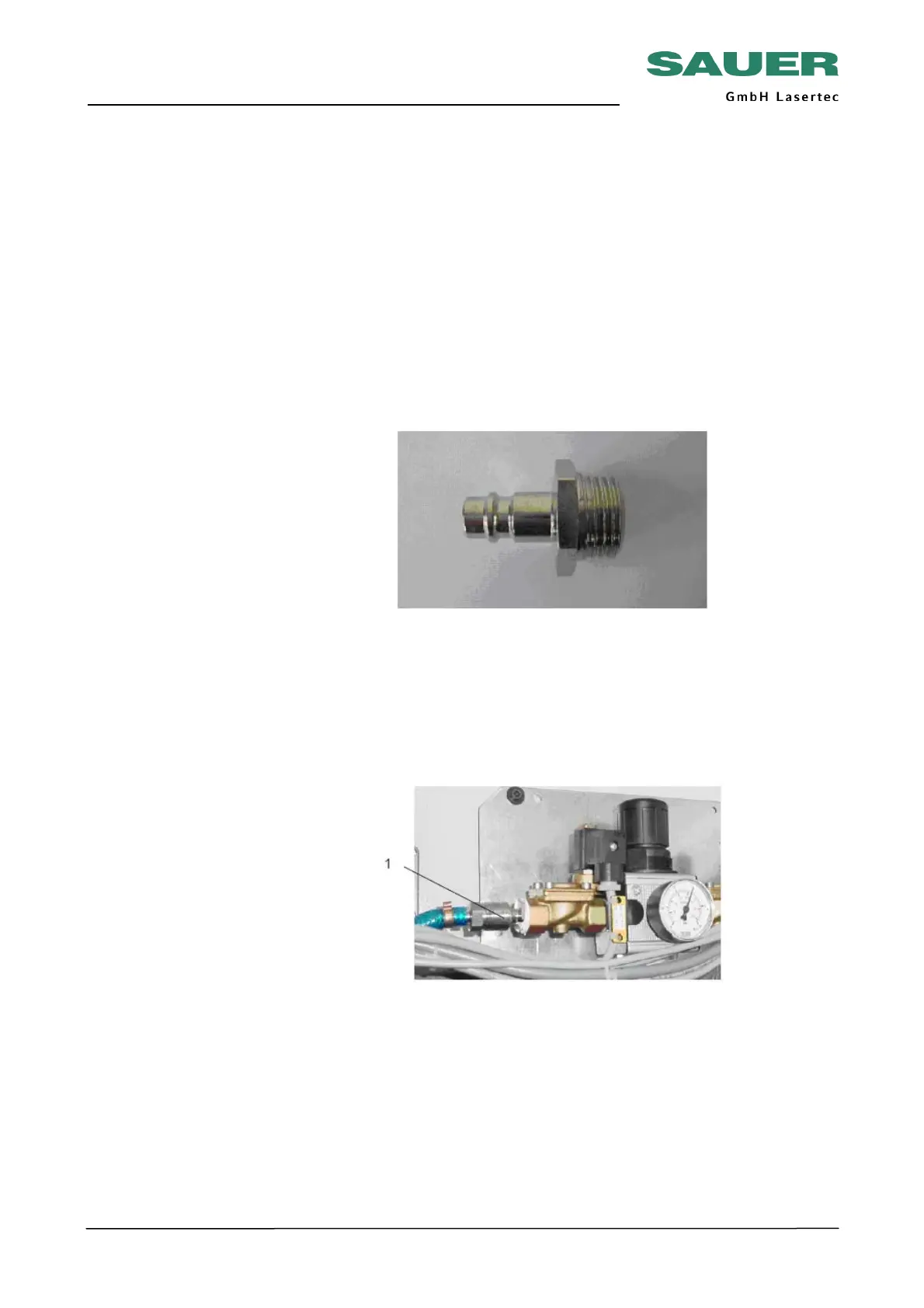

• Coupling DL-plug*NW7,2*1/2" AG, Ident.No. 2470209
• The customer must provide connection to the fluid supply panel with
appropriate hose and coupling.
• The fluid supply panel is located behind the maintenance door, on
machine rear side.
1 Compressed air connection
