SBM B6 SX - Page 3

3

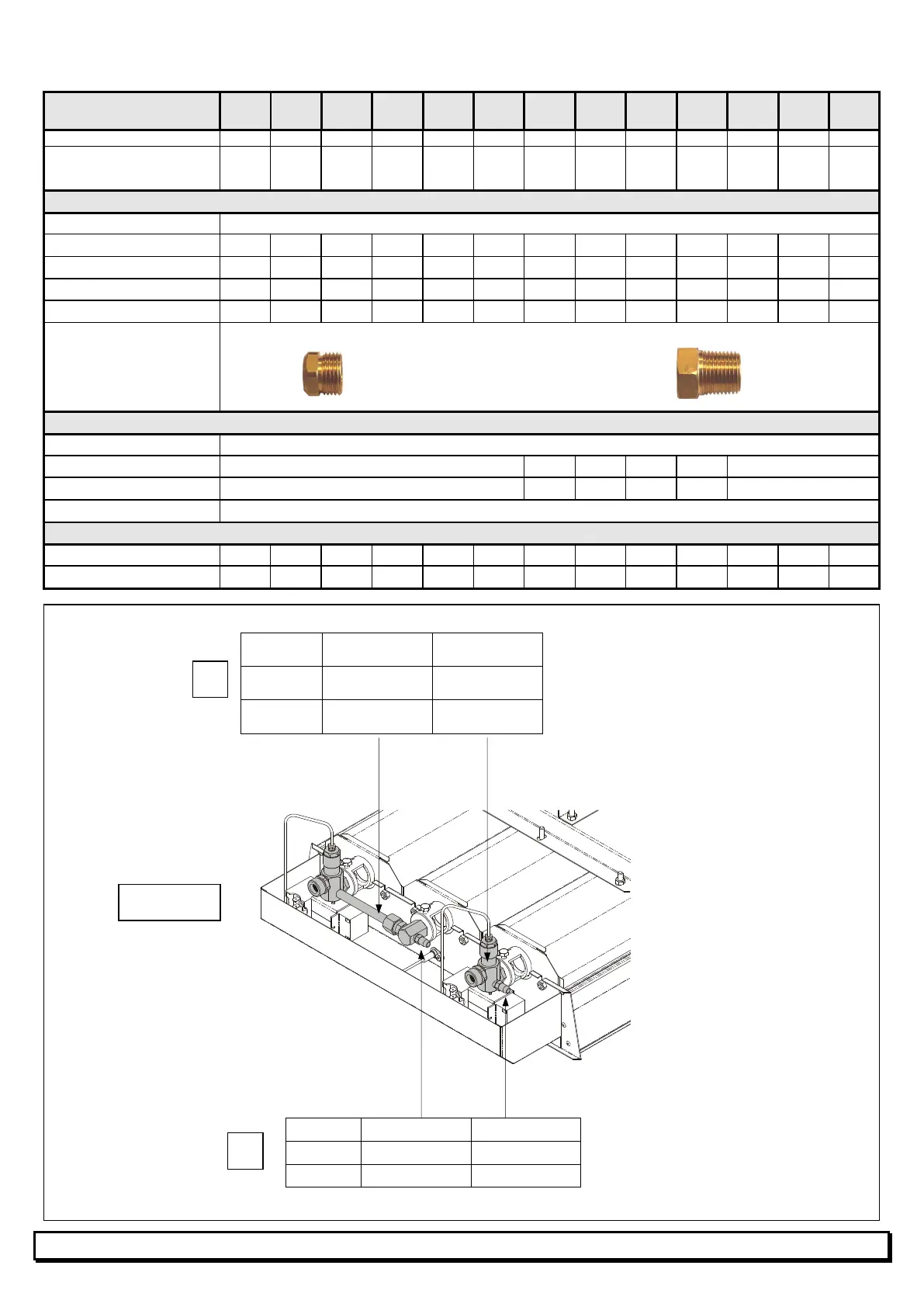

GAZ : G31 (Propane) - Category : I
3P
MODEL
B6
SX
B8
SX
B10
SX
B12
SX
B16
SX
B20
SX
B20
2SX
B24
SX
B24
2SX
B32
SX
B32
2SX
B4
8
2SX
B64
2SX
Weight (kg) 2.5 2.9 3.1 3.4 4.1 5.0 5.0 5.5 5.5 6.7 6.7 9.4 12.2
Net calorific value
Qn (kW) Hi
2.50 3.30 3.80 5.10 6.75 7.60 7.60 10.20 10.20 13.50 13.50 20.25 27.00
GAS
Inlet pressure 30 mbar
Injection pressure (mbar) 30.0 21.0 21.0 28.0 30.0 21.0 21.0 28.0 28.0 28.0 30.0
(See B)
28.0
Gas consumption (kg/h) 0.195 0.260 0.300 0.400 0.530 0.595 0.595 0.800 0.800 1.055 1.055
1.590
2.110
Ø prim. Inject. (1/100 mm) - 130 145 220 - 210 2x145 260 2x220 - -
(See A)
-
Ø sec. Inject. (1/100 mm) 82 105 110 125 137 2x110 2x110 2x125 2x125 2x137 2x137
(See A)
4x137
Gas input connection
Fitting G1/2" cylindrical (ISO 228-1) or Tapered fitting R1/2" conical (ISO 7-1)
ELECTRICITY
Power supply 230V (+10% -15%) - 50Hz Neutral mandatory
Consumption 0.1A 2x0.1A 0.1A 2x0.1A 0.1A 2x0.1A
Individual fuse 0.25A 2x0.25A 0.25A 2x0.25A 0.25A 2x0.25A
Ignition cycle length 45 seconds
VENTILATION
Combustion air (m
3
/h) 2.30 3.10 3.60 4.80 6.30 7.10 7.10 9.60 9.60 12.60 12.60 18.90 25.20
Req. air change (m
3
/h) 25 33 38 51 67.5 76 76 102 102 135 135 202.5 270
G20
prim : -
sec : 2 x 195
prim : 320
sec : 195
G31-37
prim : 370
sec : 2 x 135
prim : -
sec : 135
G31-30
prim : -
sec : 2 x 137
prim : -
sec : 137
G20
16,7 mbar 16,7 mbar
G31
-
37
34,0 mbar 37,0 mbar
G31
-
30
28,0 mbar 30,0 mbar
B48-2SX
A
B
