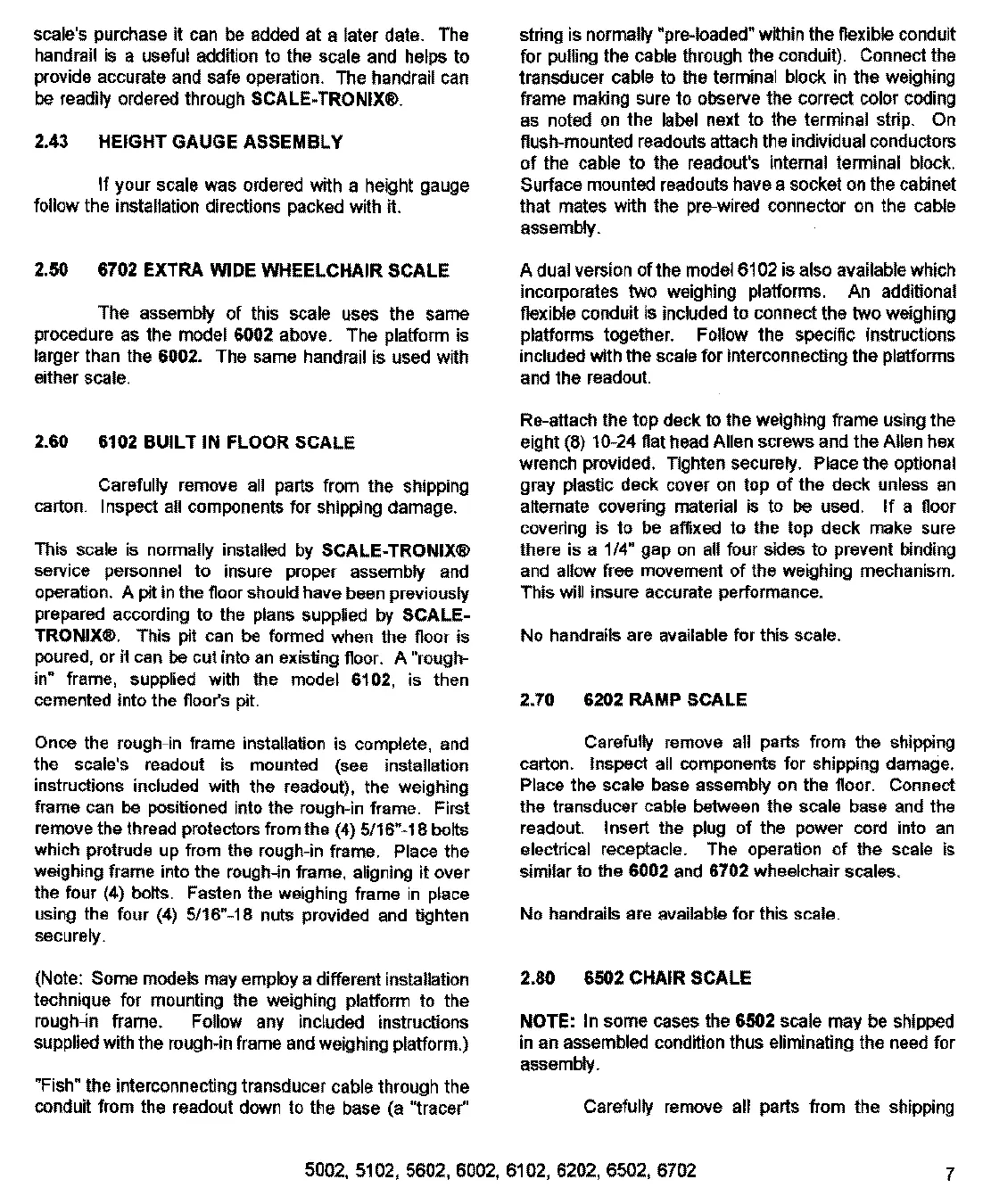

scale's purchase it can be added at a later date. The
handrail is a useful addition to the scale and helps to
provide accurate and safe operation. The handrail can
be readily ordered through SCALE-TRONIX®.
2.43 HEIGHT GAUGE ASSEMBLY
If your scale was ordered with a height gauge
follow the installation directions packed with it.
2.50 6702 EXTRA WIDE WHEELCHAIR SCALE
The assembly of this scale uses the same
procedure as the model 6002 above. The platform is
larger than the 6002. The same handrail is used with
either scale.
2.60 6102 BUILT IN FLOOR SCALE
Carefully remove all parts from the shipping
carton. Inspect all components for shipping damage.
This scale is normally installed by SCALE-TRONIX®
service personnel to insure proper assembly and
operation. A pit in the fleor should have been previously
prepared according to the plans supplied by SCALE-
TRONIX®. This pit can be formed when the floor is
poured, or it can be cut into an existing floor. A "rough-
in" frame, supplied with the model 6102, is then
cemented into the floors pit.
Once the rough-in frame installation is complete, and
the scale's readout is mounted (ses installation
instructions included with the readout), the weighing
frame can be positioned into the rough-in frame. First
remove the thread protectors from the (4) 5/16”-18 bolts
which protrude up from the rough-in frame. Place the
weighing frame into the rough-in frame, aligning it over
the four (4) bolts. Fasten the weighing frame in place
using the four (4) 5/16”-18 nuts provided and tighten
securely.
(Note: Some models may employ a different installation
technique for mounting the weighing platform to the
roughán frame. Follow any included instructions
supplied with the rough-in frame and weighing platform.)
"Fish" the interconnecting transducer cable through the
conduit from the readout down to the base (a “tracer”
string is normally “pre-loaded” within the flexible conduit
for pulling the cable through the conduit). Connect the
transducer cable to the terminal block in the weighing
frame making sure to observe the correct color coding
as noted on the label next to the terminal strip. On
flush-mounted readouts attach the individual conductors
of the cable to the readout's internal terminal block.
Surface mounted readouts have a socket on the cabinet
that mates with the pre-wired connector on the cable
assembly.
A dual version of the model 6102 is also available which
incorporates two weighing platforms. An additional
flexible conduit is included to connect the two weighing
platforms together. Follow the specific instructions
included with the scale for interconnecting the platforms
and the readout.
Re-attach the top deck to the weighing frame using the
eight (8) 10-24 flat head Allen screws and the Allen hex
wrench provided. Tighten securely. Place the optional
gray plastic deck cover on top of the deck unless an
alternate covering material is to be used. If a floor
covering is to be affixed to the top deck make sure
there is a 1/4" gap on all four sides to prevent binding
and allow free movement of the weighing mechanism.
This will insure accurate performance.
No handrails are available for this scale.
2.70 6202 RAMP SCALE
Carefully remove ali parts from the shipping
carton. Inspect all components for shipping damage.
Place the scale base assembly on the floor. Connect
the transducer cable between the scale base and the
readout. insert the plug of the power cord into an
electrical receptacle. The operation of the scale is
similar to the 6002 and 6702 wheelchair scales.
No handrails are available for this scale.
2.80 6502 CHAIR SCALE
NOTE: In some cases the 6502 scale may be shipped
in an assembled condition thus eliminating the need for
assembly.
Carefully remove all paris from the shipping
5002, 5102, 5602, 6002, 6102, 6202, 6502, 6702 7
