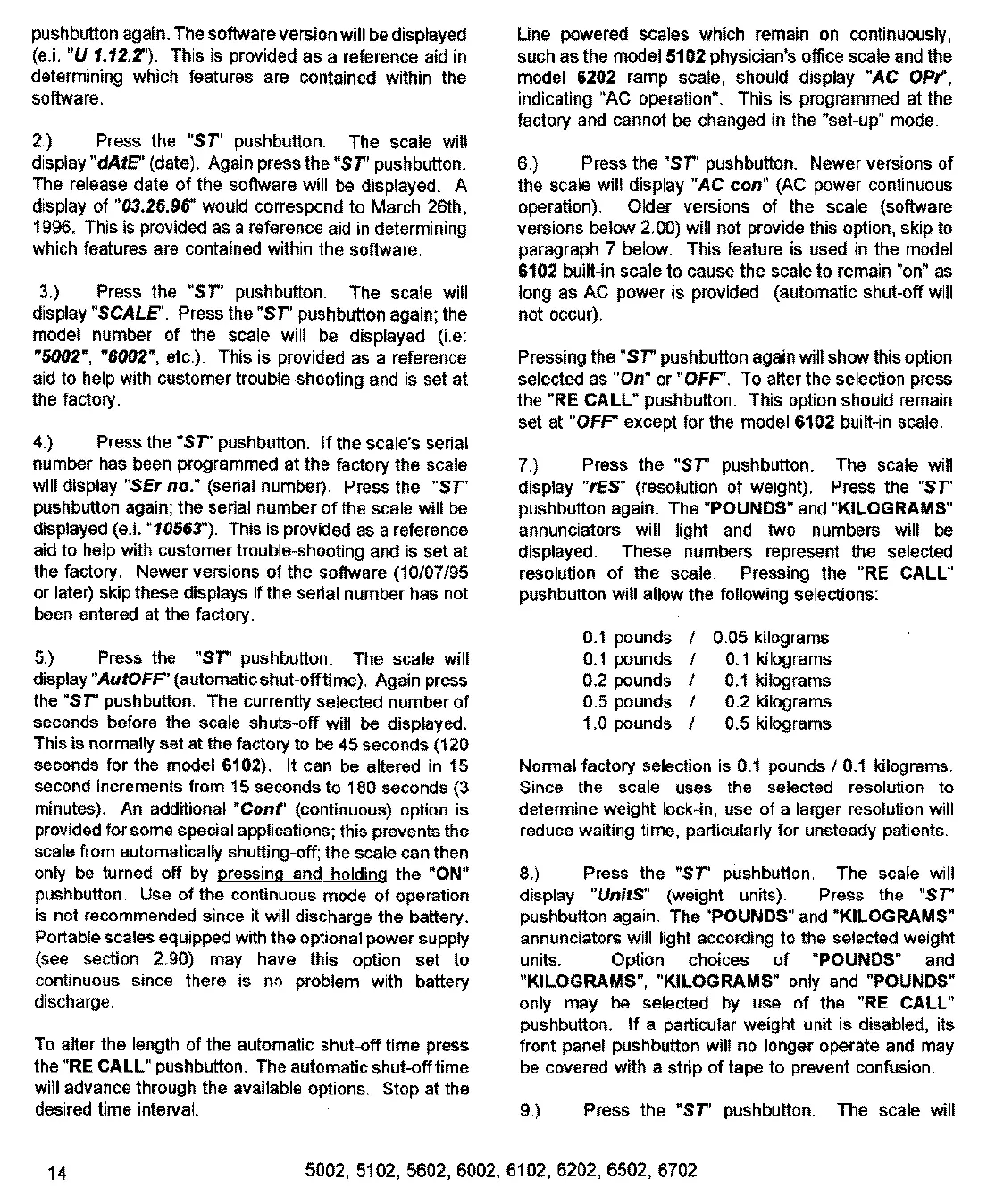

pushbutton again. The software version will be displayed
(ei. "YU 1.42.2). This is provided as a reference aid in
determining which features are contained within the
software.
2) Press the “ST’ pushbutton. The scale will
display "dAtE” (date). Again press the “ST” pushbutton.
The release date of the software will be displayed. A
display of "03.26.96" would correspond to March 26th,
1996. This is provided as a reference aid in determining
which features are contained within the software.
3) Press the "ST" pushbutton. The scale will
display "SCALE". Press the "ST" pushbutton again; the
model number of the scale will be displayed (i.e:
"5002", "6002", etc.). This is provided as a reference
aid to help with customer trouble-shooting and is set at
the factory.
4) Press the "ST" pushbutton. If the scale’s serial
number has been programmed at the factory the scale
will display "SEr no." (serial number). Press the "ST"
pushbutton again; the serial number of the scale will be
displayed (e.i. "10563"). This is provided as a reference
aid to help with customer trouble-shooting and is set at
the factory. Newer versions of the software (10/07/95
or later) skip these displays if the serial number has not
been entered at the factory.
5) Press the “ST” pushbutton. The scale will
display "AutOFF" (automatic shut-off time). Again press
the “ST” pushbutton. The currently selected number of
seconds before the scale shuts-off will be displayed.
This is normally set at the factory to be 45 seconds (120
seconds for the model 6102). lt can be altered in 15
second increments fram 15 seconds to 180 seconds (3
minutes). An additional "Conf (continuous) option is
provided for some special applications; this prevents the
scale from automatically shutting-off; the scale can then
only be turned off by pressing and holding the "ON"
pushbutton. Use of the continuous mode of operation
is not recommended since it will discharge the battery.
Portable scales equipped with the optional power supply
(see section 2.90) may have this option set to
continuous since there is no problem with battery
discharge.
Ta alter the length of the automatic shut-off time press
the "RE CALL" pushbutton. The automatic shut-off time
will advance through the available options. Stop at the
desired time interval.
Line powered scales which remain on continuously,
such as the model §102 physician's office scale and the
mode! 6202 ramp scale, should display "AC ОРГ,
indicating "AC operation”. This is programmed at the
factory and cannot be changed in the "set-up" mode.
6} Press the "ST" pushbutton. Newer versions of
the scale will display "AC con" (AC power continuous
operation), Older versions of the scale (software
versions below 2.00) will not provide this option, skip to
paragraph 7 below. This feature is used in the model
6102 built-in scale to cause the scale to remain “on” as
long as AC power is provided (automatic shut-off will
not occur).
Pressing the "ST" pushbutton again will show this option
selected as "On" or "OFF". To alter the selection press
the "RE CALL” pushbutton. This option should remain
set at "OFF" except for the model 6102 built-in scale.
7) Press the "ST" pushbutton. The scale will
display "YES" (resolution of weight), Press the "ST"
pushbutton again. The "POUNDS" and "KILOGRAMS"
annunciators will light and two numbers will be
displayed. These numbers represent the selected
resolution of the scale. Pressing the "RE CALL"
pushbutton will allow the following selections:
0.1 pounds / 0.05 kilograms
0.1 pounds / 0.1 kilograms
0.2 pounds / 0.1 kilograms
0.5 pounds / 0.2 kilograms
1,0 pounds / 0.5 kilograms
Normal factory selection is 0.1 pounds / 0.1 kilograms.
Since the scale uses the selected resolution to
determine weight lock-in, use of a larger resolution will
reduce waiting time, particularly for unsteady patients.
8) Press the "ST pushbutton, The scale will
display "UnitS" (weight units) Press the "ST"
pushbutton again. The "POUNDS" and “KILOGRAMS”
annunciators will light according to the selected weight
units. Option choices of "POUNDS" and
"KILOGRAMS", "KILOGRAMS" only and "POUNDS"
only may be selected by use of the "RE CALL"
pushbutton. If a particular weight unit is disabled, its
front panel pushbutton will no longer operate and may
be covered with a strip of tape to prevent confusion.
9) Press the “ST” pushbutton. The scale will
