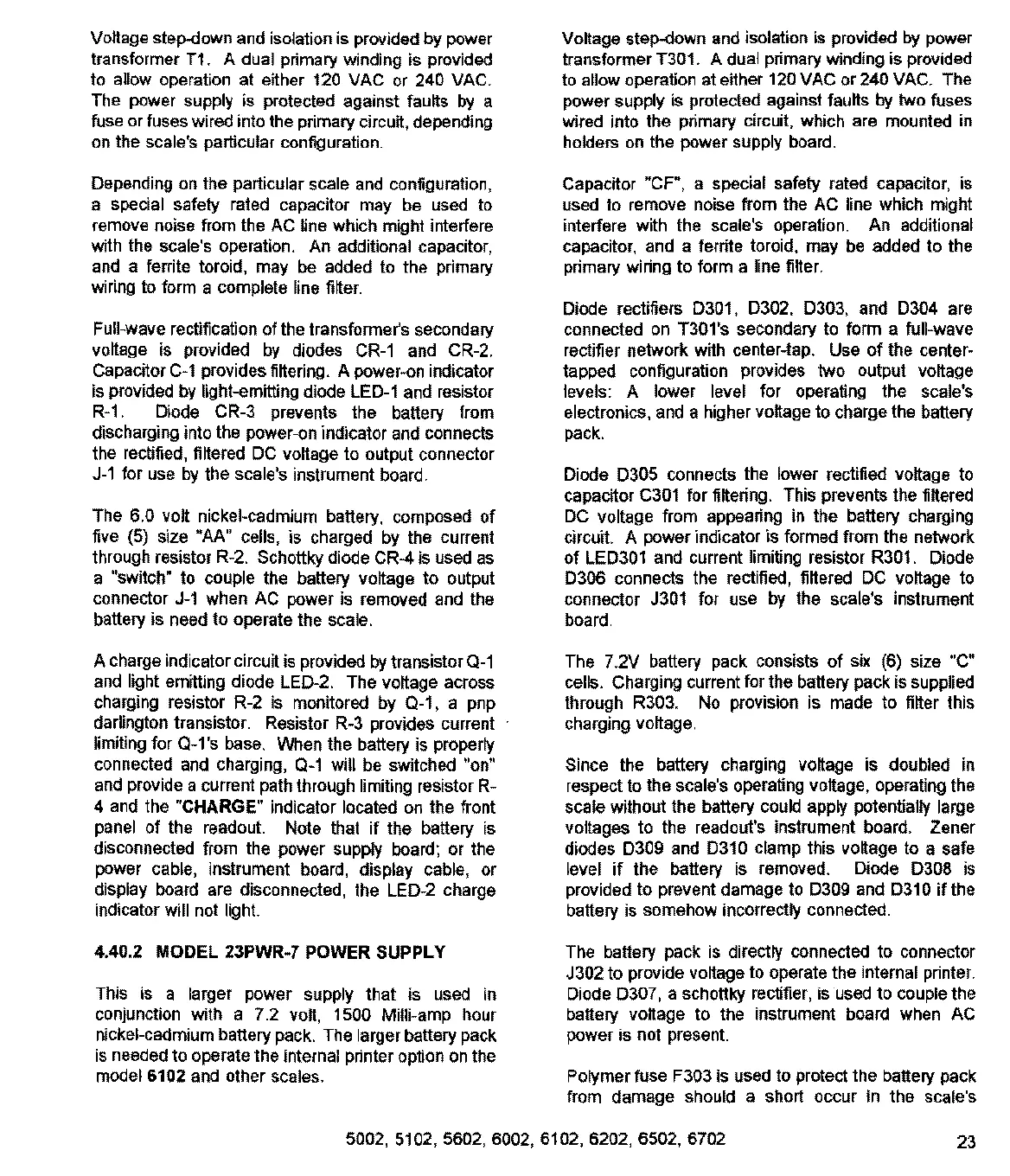

Voltage
step-down
and
isolation
is
provided
by
power
transformer
Tt. A
dual
primary
winding
is
provided
to
allow
operation
at
either
120
VAC
or
240
VAC.
The
power
supply
is
protected
against
faults
by
a
fuse
or
fuses
wired
into
the
primary
circuit,
depending
on
the
scale's
particular
configuration.
Depending
on
the
particular
scale
and
configuration,
a
special
safety
rated
capacitor
may
be
used
to
remove
noise
from
the
AC
line
which
might
interfere
with the
scale's
operation.
An
additional
capacitor,
and
a
fertite
toroid,
may
be
added
fo
the
primary
wiring
to
form
a
complete
line
filter.
Full-wave
rectification
of
the
transformers
secondary
voltage
is
provided
by
diodes
CR-1
and
CR-2.
Capacitor
C-1
provides
filtering.
A
power-on
indicator
is
provided
by
light-emitting
diode
LED-1
and
resistor
R-1.
Diode
CR-3
prevents
the
battery
from
discharging
into
the
power-on
indicator
and
connects
the
rectified,
filtered
DC
voltage
to
output
connector
4-1 for
use
by
the
scale's
instrument
board.
The
6.0
voit
nickel-cadmium
battery,
composed
of
five
(5)
size
“AA”
cells,
is
charged
by
the
current
through
resistor
R-2.
Schottky
diode
CR-4
is
used
as
a
“switch”
to
couple
the
battery
voltage
to
output
connector
J-1
when
AC
power
is
removed
and
the
battery
is
need
to
operate
the
scale.
A
charge
indicator
circuit
is
provided
by
transistor
Q-1
and
light
emitting
diode
LED-2.
The
voltage
across
charging
resistor
R-2
is
monitored
by
Q-1,
a
pnp
darlington
transistor.
Resistor
R-3
provides
current
-
limiting
for
Q-1's
base.
When
the
battery
is
properly
connected
and
charging,
Q-1
will
be
switched
"on"
and
provide
a
current
path
through
limiting
resistor
R-
4
and
the
"CHARGE"
indicator
located
on
the
front
panel
of
the
readout.
Note
that
if
the
battery
is
disconnected
from
the
power
supply
board;
or
the
power
cable,
instrument
board,
display
cable,
or
display
board
are
disconnected,
the
LED-2
charge
indicator
will
not
light.
4.40.2
MODEL
23PWR-7
POWER
SUPPLY
This
is
a
larger
power
supply
that
is
used
in
conjunction
with
a
7.2
volt,
1500
Milli-amp
hour
nickel-cadmium
battery
pack.
The
larger
battery
pack
is
needed
to
operate
the
internal
printer
option
on the
mode!
6102
and
other
scales,
Voltage
step-down
and
isolation
is
provided
by
power
transformer
T301.
A
dual
primary
winding
is
provided
to
allow
operation
at
either
120
VAC
or
240
VAC.
The
power
supply
is
protected
against
faults
by
two
fuses
wired
into
the
primary
circuit,
which
are
mounted
in
holders
on the
pawer
supply
board.
Capacitor
"CF",
a
special
safety
rated
capacitor,
is
used
to
remove
noise
from
the
AC
line
which
might
interfere
with
the
scale's
operation.
An
additional
capacitor,
and
a
ferrite
toroid,
may
be
added
to
the
primary
wiring
to
form
a
line
filter.
Diode
rectifiers
D301, D302, D303,
and
D304
are
connected
on
T301's
secondary
to
form
a
ful-wave
rectifier
network
with
center-tap.
Use
of
the
center-
tapped
configuration
provides
two
output
voltage
levels:
А
lower
level
for
operating
the
scale's
electronics,
and
a
higher
voltage
to
charge
the
battery
pack.
Diode
D305
connects
the
lower
rectified
voltage
to
capacitor
C301
for
filtering.
This
prevents
the
filtered
DC
voltage
from
appearing
in
the
battery
charging
circuit.
A
power
indicator
is
formed
from
the
network
of
LED301
and
current
limiting
resistor
R301.
Diode
D306
connects
the
rectified,
filtered
DC
voltage
to
connector
J301
for
use
by
the
scale's
instrument
board.
The
7.2V
battery
pack
consists
of
six (6)
size
"C*
cells.
Charging
current
for
the
battery
pack
is
supplied
through
R303.
No
provision
is
made
to
fitter
this
charging
voltage.
Since
the
battery
charging
voltage
is
doubied
in
respect
to
the
scale's
operating
voltage,
operating
the
scale
without
the
battery
could
apply
potentially
large
voltages
to
the
readout's
instrument
board.
Zener
diodes
D309
and
D310
clamp
this
voltage
to
a
safe
level
if
the
battery
is
removed.
Diode
D308
is
provided
to
prevent
damage
to
D309
and
D310
if
the
battery
is
somehow
incorrectly
connected.
The
battery
pack
is
directly
connected
to
connector
J302
to
provide
voltage
to
operate
the
internal
printer.
Diode
D307,
a
schottky
rectifier,
is
used
to
couple
the
battery
voltage
to
the
instrument
board
when
AC
power
is
not
present.
Palymer
fuse
F303
is
used
to
protect
the
battery
pack
from
damage
should
a
short
occur
in
the
scale's
$002,
5102,
5602, 6002,
6102,
6202,
6502,
6702
23
