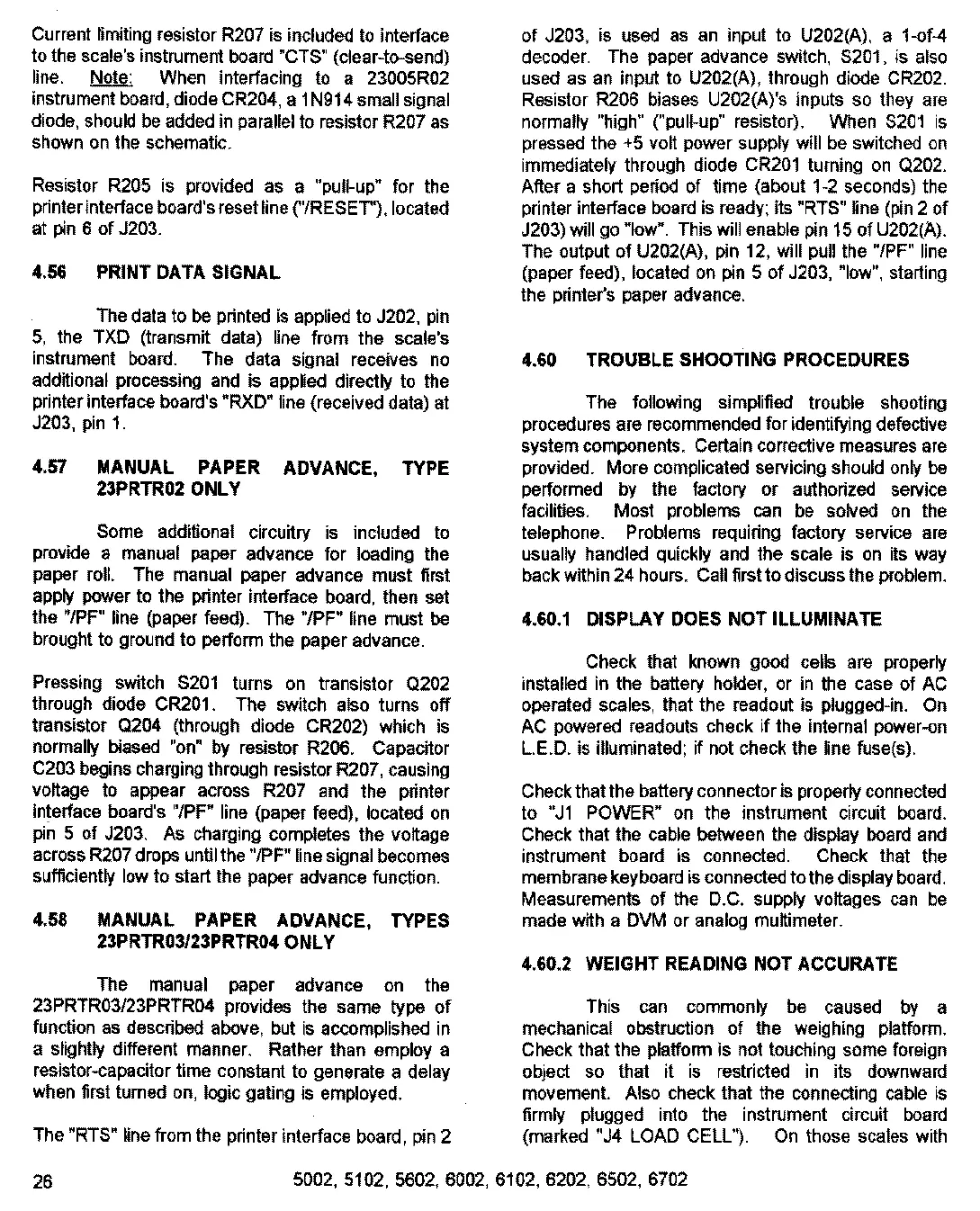

Current
limiting
resistor
R207
is
included
to
interface
to
the
scale's
instrument
board
"CTS"
(clear-to-send)
line.
Note:
When
interfacing
to
a
23005R02
instrument
board,
diode
CR204,
a
1N914
small
sígnal
diode,
should
be
added
in
parallel
to
resistor
R207
as
shown
on the
schematic.
Resistor
R205
is
provided
as
a
“pull-up”
for
the
printer
interface
board's
reset
line
C/RESETY,
located
at
pin
6
of
J203.
4.56
PRINT
DATA
SIGNAL
The
data
to
be
printed
is
applied
to
J202,
pin
5,
the
TXD
(transmit
data)
line
from
the
scale's
instrument
board.
The
data
signal
receives
no
additional
processing
and
is
applied
directly
to
the
printer
interface
board's
"RXD"
line
(received
data)
at
3203,
pin
1.
4.57
MANUAL
PAPER
ADVANCE,
TYPE
23PRTR02
ONLY
Some
additional
circuitry
is
included
to
provide
a
manual
paper
advance
for
loading
the
paper
roll.
The
manual
paper
advance
must
first
apply
power
to
the printer
interface
board, then
set
the
"PF"
line
(paper
feed).
The
“/PF”
line
must
be
brought
to
ground
to
perform
the
paper
advance.
Pressing
switch
S201
turns
on
transistor
Q202
through
diode
CR201.
The
switch
also
turns
off
transistor
Q204
(through diode
CR202)
which
is
normally
biased
"on"
by
resistor
R206.
Capacitor
C203
begins
charging
through
resistor
R207,
causing
voltage
to
appear
across
R207
and
the printer
interface
board's
"/PF"
line
(paper
feed),
located
on
pin
5
of
J203.
As
charging
completes
the
voltage
across
R207
drops
until
the
PF"
line
signal
becomes
sufficiently
low
to
start
the
paper
advance
function.
4.58
MANUAL
PAPER
ADVANCE,
TYPES
23PRTRO3/23PRTRO4
ONLY
The
manual
paper
advance
on
the
23PRTRO3/23PRTRO4
provides
the
same
type
of
function
as
described
above,
but
is
accomplished
in
a
slightly
different
manner.
Rather
than
employ
a
resistor-capacitor
time
constant
to
generate
a
delay
when
first
turned
on,
logic
gating
is
employed.
The
"RTS"
line
from
the
printer
interface
board,
pin
2
of
J203,
is
used
as
an
input
to
U202(A),
a
1-of-4
decoder.
The
paper
advance
switch,
S201,
is
also
used
as
an input
to
U202(A),
through
diode
CR202.
Resistor
R206
biases
U202(A)'s
inputs
so
they
are
normally
“high”
("pull-up”
resistor),
When
S201
is
pressed
the
+5
volt
power
supply
will
be
switched
on
immediately
through
diode
CR201
turning
on
Q202.
After
a
short
period
of
time
(about
1-2
seconds)
the
printer
interface
board
is
ready;
its
"RTS"
line (pin
2
of
4203)
will
go
“low”.
This
will
enable
pin
15
of
U202(A).
The
output
of
U202(A),
pin 12,
will
pull
the
"/PE"
line
(paper
feed),
located
on
pin
5
of
J203,
"low",
starting
the
printer’s
paper
advance.
4.60
TROUBLE
SHOOTING
PROCEDURES
The
following
simplified
trouble
shooting
procedures
are
recommended
for
identifying
defective
system
components.
Certain
corrective
measures
are
provided.
More
complicated
servicing
should
only
be
performed
by
the
factory
or
authorized
service
facilities.
Most
problems
can
be
solved
on the
telephone.
Problems
reguiring
factory
service
are
usually
handled
quickly
and
the
scale
is
on
its
way
back
within
24
hours.
Call
first
to
discuss
the
problem.
4.60.1
DISPLAY
DOES
NOT
ILLUMINATE
Check
that
known
good
cells
are
properly
installed
in
the
battery
holder,
or
in
the
case
of
AC
operated
scales,
that
the
readout
is
plugged-in.
On
AC
powered
readouts
check
if
the
internal
power-on
LE.D.
is
illuminated;
if
not
check
the
line
fuse(s).
Check
that
the
battery
connector
is
properly
connected
to
“J1
POWER”
on
the
instrument
circuit
board.
Check
that
the
cable
between
the
display
board
and
instrument
board
is
connected.
Check
that
the
membrane
keyboard
is
connected
to
the
display
board.
Measurements
of
the
D.C.
supply
voltages
can
be
made
with
a
DVM
or
analog
multimeter.
4.60.2:
WEIGHT
READING
NOT
ACCURATE
This
can
commonly
be
caused
by
a
mechanical
obstruction
of
the
weighing
platform,
Check
that
the
platform
is
not
touching
some
foreign
object
so
that
it
is
restricted
in
its
downward
movement.
Also
check
that
the
connecting
cable
is
firmly
plugged
into
the
instrument
circuit
board
(marked
"44
LOAD
CELL").
On
those
scales
with
26
5002, 5102,
5602, 8002,
6102,
6202, 6502,
6702
