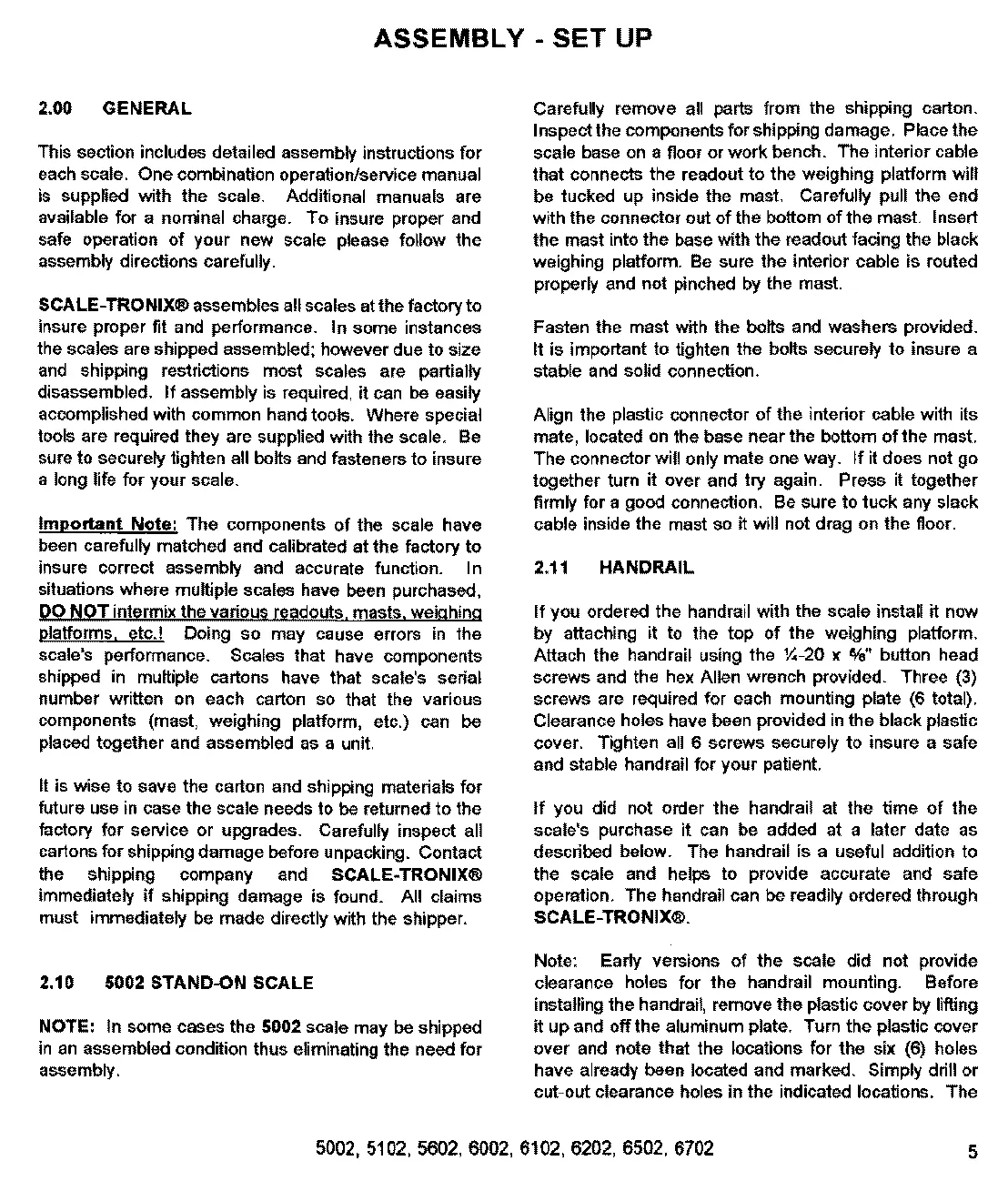

ASSEMBLY

-

SET

UP

200

GENERAL

This

section

includes

detailed

assembly

instructions

for

each

scale.

One

combination

operation/service

manual

is

supplied

with

the

scale.

Additional

manuals

are

available

for

a

nominal

charge.

To

insure

proper

and

safe

operation

of

your

new

scale

please

follow

the

assembly

directions

carefully.

SCALE-TRONIX®

assembles

all

scales

at

the

factory

to

insure

proper

fit

and

performance.

in

some

instances

the

scales

are

shipped

assembled;

however

due

to

size

and

shipping

restrictions

most

scales

are

partially

disassembled.

If

assembly

is

required,

it

can

be

easily

accomplished

with

common

hand

tools.

Where

special

tools

are

required

they

are

supplied

with

the

scale.

Be

sure

to

securely

tighten

all

baits

and

fasteners

to

insure

a

long

life

for

your

scale.

Important

Note:

The

components

of

the

scale

have

been

carefully

matched

and

calibrated

at

the

factory

to

insure

correct

assembly

and

accurate

function.

In

situations

where

multiple

scales

have

been

purchased,

DO

NOT

intermix

the

various

readouts,

masts,

weighing

platforms,

etc.!

Doing

so

may

cause

errors

in

the

scale’s

performance.

Scales

that

have

components

shipped

in

multiple

cartons

have

that

scale's

serial

number

written

on

each

carton

so that the

various

components

(mast,

weighing

platform,

etc.)

can

be

placed

together

and

assembled

as

a

unit.

It

is

wise

to

save

the

carton

and

shipping

materials

for

future

use

in

case

the

scale

needs

to

be

returned

to

the

factory

for

service

or

upgrades.

Carefully

inspect

all

cartons

for

shipping

damage

before

unpacking.

Contact

the

shipping

company

and

SCALE-TRONIX®

immediately

if

shipping

damage

is

found.

All

claims

must

immediately

be

made

directly

with

the

shipper.

2.10

5002

STAND-ON

SCALE

NOTE:

in

some

cases

the

5002

scale

may

be

shipped

in

an

assembled

condition

thus

eliminating

the

need

for

assembly.

Carefully

remove

all

parts

from

the

shipping

carton.

Inspect

the

components

for

shipping

damage.

Place

the

scale

base

on

a

floor

or

work

bench.

The

interior

cable

that

connects

the

readout

to

the

weighing

platform

will

be

tucked

up

inside

the

mast. Carefully

pull

the

end

with

the

connector

out

of

the

bottom

of

the

mast.

Insert

the

mast

into

the

base

with

the

readout

facing

the

black

weighing

platform.

Be

sure

the

interior

cable

is

routed

properly

and

not

pinched

by

the

mast.

Fasten

the

mast

with

the bolts

and

washers

provided.

tt

is

important

to

tighten

the bolts

securely

to

insure

a

stable

and

solid

connection.

Align

the

plastic

connector

of

the

interior

cable

with

its

mate,

located

on the

base

near

the

bottom

of

the

mast.

The

connector

will

only

mate

one

way.

If

it

does

not

go

together

turn

it

over

and

try

again.

Press

it

together

firmly

for

a

good

connection.

Be

sure

to

tuck

any

slack

cable

inside

the

mast

so

it

will

not

drag

on

the

floor.

2.41

HANDRAIL

Hf

you

ordered

the

handrail

with

the

scale

install

it

now

by

attaching

it

to

the

top

of

the

weighing

platform.

Attach

the

handrail

using

the

%-20

x

96"

button

head

screws

and

the

hex

Allen

wrench

provided.

Three

(3)

screws

are

required

for

each

mounting

plate

(6

total).

Clearance

holes

have

been

provided

in

the

black

plastic

cover.

Tighten

all

6

screws

securely

to

insure

a

safe

and

stable

handrail

for

your

patient,

If

you

did not

order

the

handrail

at

the

time

of

the

scale's

purchase

if

can

be

added

at

a

later

date

as

described

below.

The

handrail

is

a

useful

addition

to

the

scale

and

helps

to

provide

accurate

and

safe

operation.

The

handrail

can

be

readily

ordered

through

SCALE-TRONIX®.

Note:

Early

versions

of

the

scale

did

not

provide

clearance

holes

for

the

handrail

mounting.

Before

installing

the

handrail,

remove

the plastic

cover

by

lifting

it

up

and

off

the

aluminum

plate.

Turn

the plastic

cover

over and

note

that

the

locations

for

the

six

(6)

holes

have

already

been

located

and

marked.

Simply

drill

or

cut-out

clearance

holes

in

the

indicated

locations.

The

5002, 5102,

5602, 6002, 6102, 6202, 6502,

6702

5
