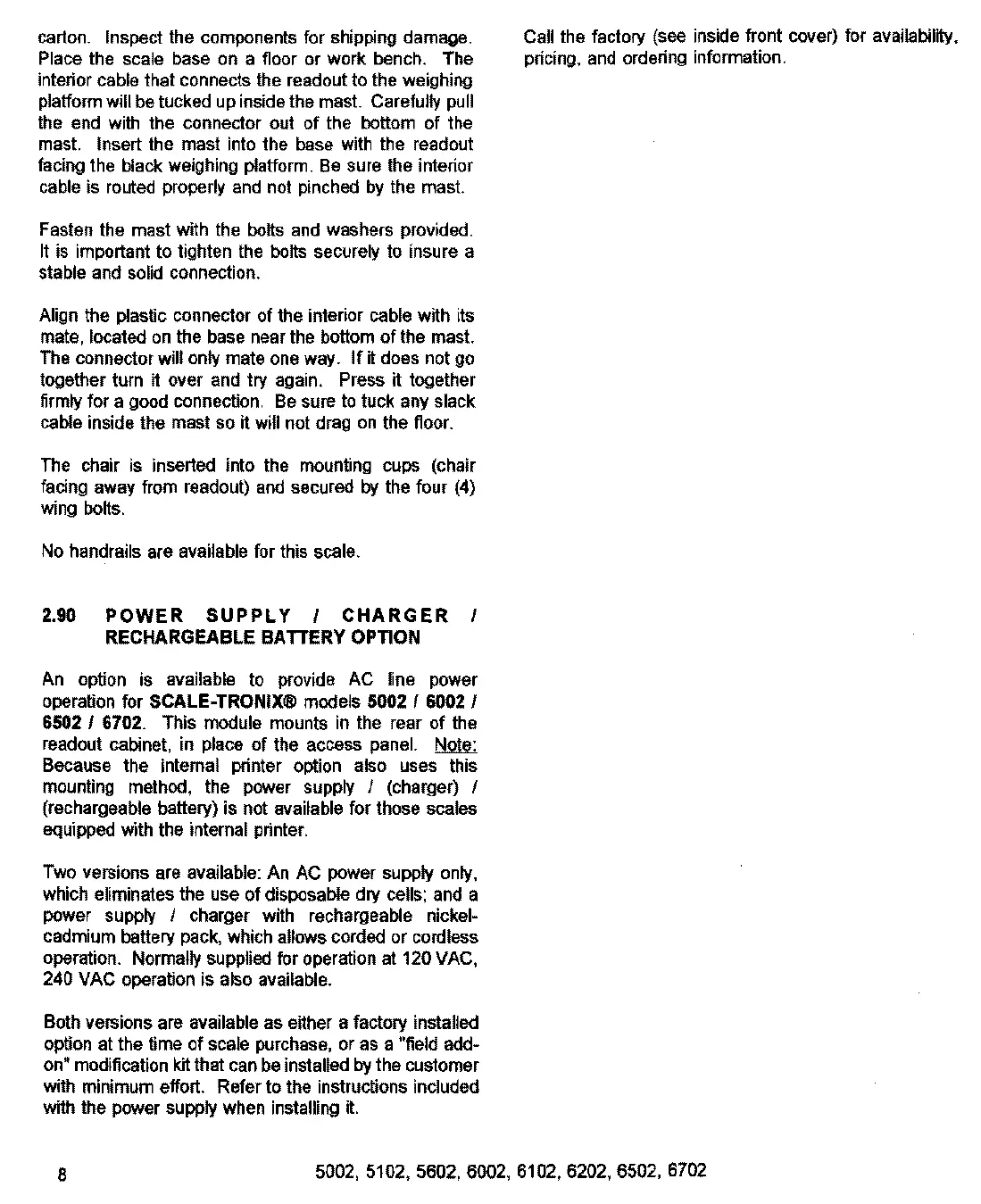

carton. Inspect the components for shipping damage.
Place the scale base on a floor or work bench. The
interior cable that connects the readout to the weighing
platform will be tucked up inside the mast. Carefully pull
the end with the connector out of the bottom of the
mast, Insert the mast into the base with the readout
facing the biack weighing platform. Be sure the interior
cable is routed properly and not pinched by the mast.
Fasten the mast with the bolts and washers provided.
It is important to tighten the bolts securely to insure a
stable and solid connection.
Align the plastic connector of the interior cable with its
mate, located on the base near the bottom af the mast.
The connector will only mate one way. If it does not go
together turn it over and try again. Press it together
firmly for a good connection. Be sure to tuck any slack
cable inside the mast so it will not drag on the floor.
The chair is inserted into the mounting cups (chair
facing away from readout) and secured by the four (4)
wing bolts.
No handrails are available for this scale.
2.90 POWER SUPPLY / CHARGER /
RECHARGEABLE BATTERY OPTION
An option is available to provide AC line power
operation for SCALE-TRONIX® models 5002 / 6002 /
6502 / 6702. This module mounts in the rear of the
readout cabinet, in place of the access panel. Note:
Because the internal printer option also uses this
mounting method, the power supply / (charger) /
(rechargeable battery) is not available for those scales
equipped with the internal printer.
Two versions are available: An AC power supply only,
which eliminates the use of disposable dry cells; and a
power supply / charger with rechargeable nickel-
cadmium battery pack, which allows corded or cordless
operation. Normally supplied for operation at 120 VAC,
240 VAC operation is also available.
Both versions are available as either a factory installed
option at the time of scale purchase, or as a “field add-
on" modification kit that can be installed by the customer
with minimum effort. Refer to the instructions included
with the power supply when installing it.
Call the factory (see inside front cover) for availability,
pricing, and ordering information.
8 5002, 5102, 5602, 6002, 6102, 6202, 6502, 6702
