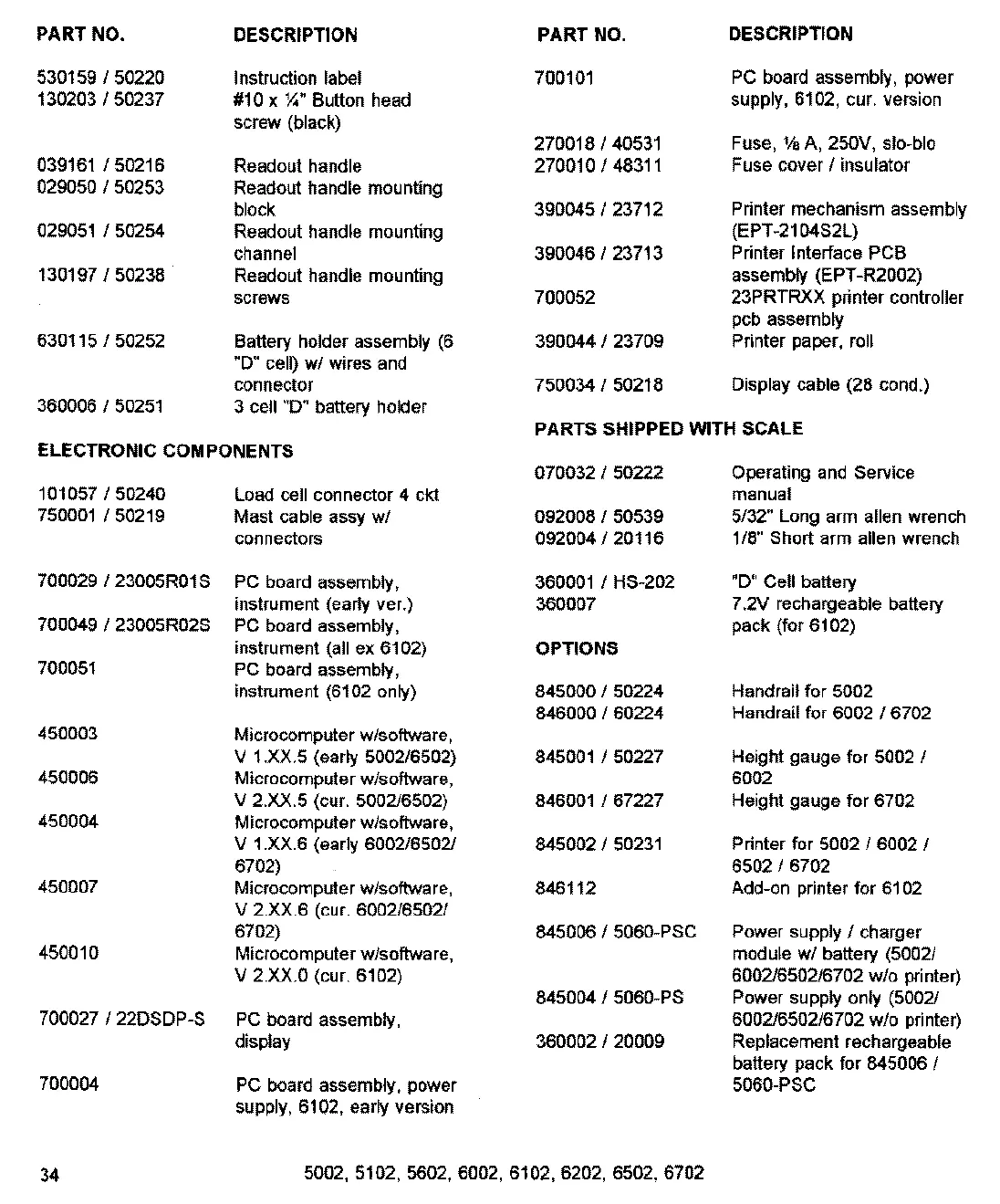

Scale-Tronix 6702 - Page 35

PART NO.
530159 / 50220
130203 / 50237
039161 / 50216
029050 / 50253
029051 / 50254
130197 / 50238
630115 / 50252
360006 / 50251
BESCRIPTION
Instruction label
#10 x %” Button head
screw (black)
Readout handle
Readout handle mounting
block
Readout handle mounting
channel
Readout handie mounting
Screws
Battery holder assembly (6
*D" cell) w/ wires and
connector
3 cell “D” battery holder
ELECTRONIC COMPONENTS
101057 / 50240
750001 / 50219
700029 / 23005R01S
700049 / 23005R025
700051
450003
450006
450004
450007
450010
700027 / 22DSDP-S
700004
34
Load cell connector 4 ckt
Mast cable assy w/
connectors
PC board assembly,
instrument {early ver.)
PC board assembly,
instrument (all ex 6102)
PC board assembly,
instrument (6102 only)
Microcomputer w/software,
V 1.XX.5 (early 5002/6502)
Microcomputer w/software,
V 2.XX.5 (cur. 5002/6502)
Microcomputer w/software,
V 1.XX.6 (early 6002/6502/
6702)
Microcomputer w/software,
V 2.XX.8 (cur. 6002/6502/
6702)
Microcomputer w/software,
V 2.XX.0 (cur. 6102)
PC board assembiy,
display
PC board assembly, power
supply, 5102, early version
5002, 5102, 5602, 6002, 6102, 6202, 6502, 6702
PART NO.
700101
270018 / 40531
270010 / 48311
390045 / 23712
390046 / 23713
700052
390044 / 23709
750034 / 50218
DESCRIPTION
PC board assembly, power
supply, 6102, cur. version
Fuse, % A, 250V, slo-blo
Fuse cover / insulator
Printer mechanism assembly
(EPT-210482L)
Printer Interface PCB
assembly (EPT-R2002)
23PRTRXX printer controller
pob assembly
Printer paper, roll
Display cable (28 cond.)
PARTS SHIPPED WITH SCALE
070032 / 50222
092008 / 50539
092004 / 20116
360001 / HS-202
360007
OPTIONS
845000 / 50224
846000 / 60224
845001 / 50227
846001 / 67227
845002 / 50231
846112
845006 / 5060-PSC
845004 / 5060-PS
360002 / 20009
Operating and Service
manual
5/32" Long arm allen wrench
1/8" Short arm allen wrench
"D* Cell battery
7.2N rechargeable battery
pack (for 6102)
Handrail for 5002
Handrail for 6002 / 6702
Height gauge for 5002 /
6002
Height gauge for 6702
Printer for 5002 / 6002 /
8502 / 6702
Add-on printer for 6102
Power supply / charger
module w/ battery (5002/
6002/6502/6702 w/o printer)
Power supply only (5002/
6002/6502/6702 w/o printer)
Replacement rechargeable
battery pack for 845006 /
5060-PSC
