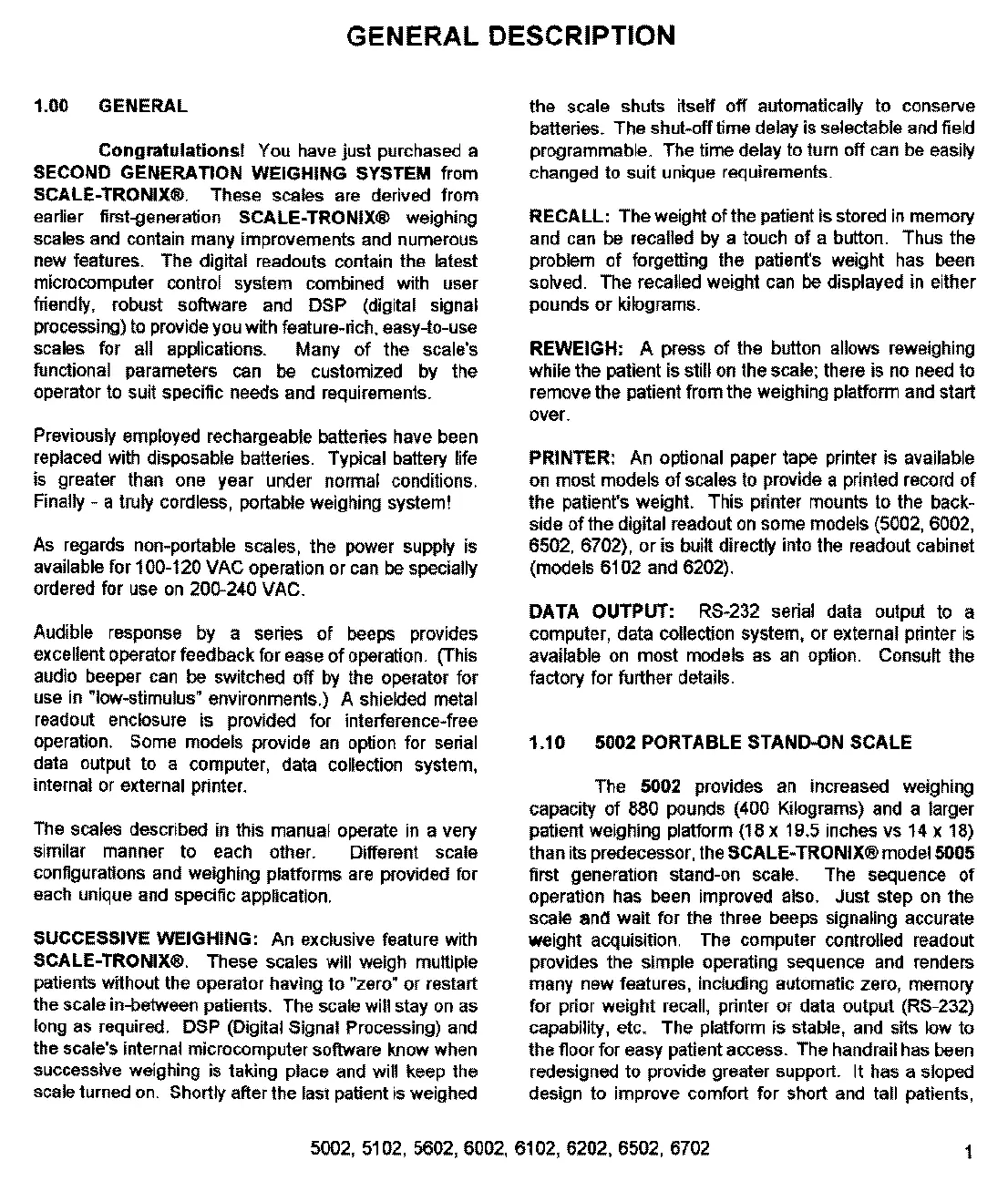

GENERAL DESCRIPTION
1.00 GENERAL
Congratulations! You have just purchased a
SECOND GENERATION WEIGHING SYSTEM from
SCALE-TRONIX®. These scales are derived from
earlier first-generation SCALE-TRONIX® weighing
scales and contain many improvements and numerous
hew features. The digital readouts contain the latest
microcomputer control system combined with user
friendly, robust software and DSP (digital signat
processing) to provide you with feature-rich, easy-to-use
scales for all applications. Many of the scale's
functional parameters can be customized by the
operator to suit specific needs and requirements.
Previously employed rechargeable batteries have been
replaced with disposable batteries. Typical battery life
is greater than one year under normal conditions.
Finally - a truly cordless, portable weighing system!
As regards non-portable scales, the power supply is
available for 100-120 VAC operation or can be specially
ordered for use on 200-240 VAC.
Audible response by a series of beeps provides
excellent operator feedback for ease of operation. (This
audio beeper can be switched off by the operator for
use in “low-stimulus” environments.) A shielded metal
feadout enclosure is provided for interference-free
operation. Some models provide an option for serial
data output to a computer, data collection system,
internal or external printer.
The scales described in this manual operate in a very
similar manner to each other. Different scale
configurations and weighing platforms are provided for
each unique and specific application.
SUCCESSIVE WEIGHING: An exclusive feature with
SCALE-TRONIX®. These scales will weigh multiple
patients without the operator having to "zero" or restart
the scale in-between patients. The scale will stay on as
long as required, DSP (Digital Signal Processing) and
the scale's internal microcomputer software know when
successive weighing is taking place and will keep the
scale turned on. Shortly after the last patient is weighed
the scale shuts itself off automatically to conserve
batteries. The shut-off time delay is selectable and field
programmable. The time delay to tum off can be easily
changed to suit unique requirements.
RECALL: The weight of the patient is stored in memory
and can be recalled by a touch of a button. Thus the
problem of forgetting the patients weight has been
solved. The recalled weight can be displayed in either
pounds or kilograms.
REWEIGH: A press of the button allows reweighing
while the patient is still on the scale; there is no need to
remove the patient from the weighing platform and start
over.
PRINTER: An optional paper tape printer is available
on most models of scales to provide a printed record of
the patients weight. This printer mounts to the back-
side of the digital readout on some models (5002, 6002,
6502, 6702), or is built directly into the readout cabinet
(models 6102 and 6202).
DATA OUTPUT: RS-232 serial data output to a
computer, data collection system, or external printer is
available on most models as an option. Consult the
factory for further details.
1.10 5002 PORTABLE STAND-ON SCALE
The 5002 provides an increased weighing
capacity of 880 pounds (400 Kilograms) and a larger
patient weighing platform (18 x 19.5 inches vs 14 x 18)
than its predecessor, the SCALE-TRONIX® model 5005
first generation stand-on scale. The sequence of
operation has been improved also. Just step on the
scale and wait for the three beeps signaling accurate
weight acquisition. The computer controlled readout
provides the simple operating sequence and renders
many new features, including automatic zero, memory
for prior weight recall, printer or data output (RS-232)
capability, etc, The platform is stable, and sits low to
the floor for easy patient access. The handrail has been
redesigned to provide greater support. It has a sloped
design to improve comfort for short and tall patients,
5002, 5102, 5602, 6002, 6102, 6202, 6502, 6702 4
