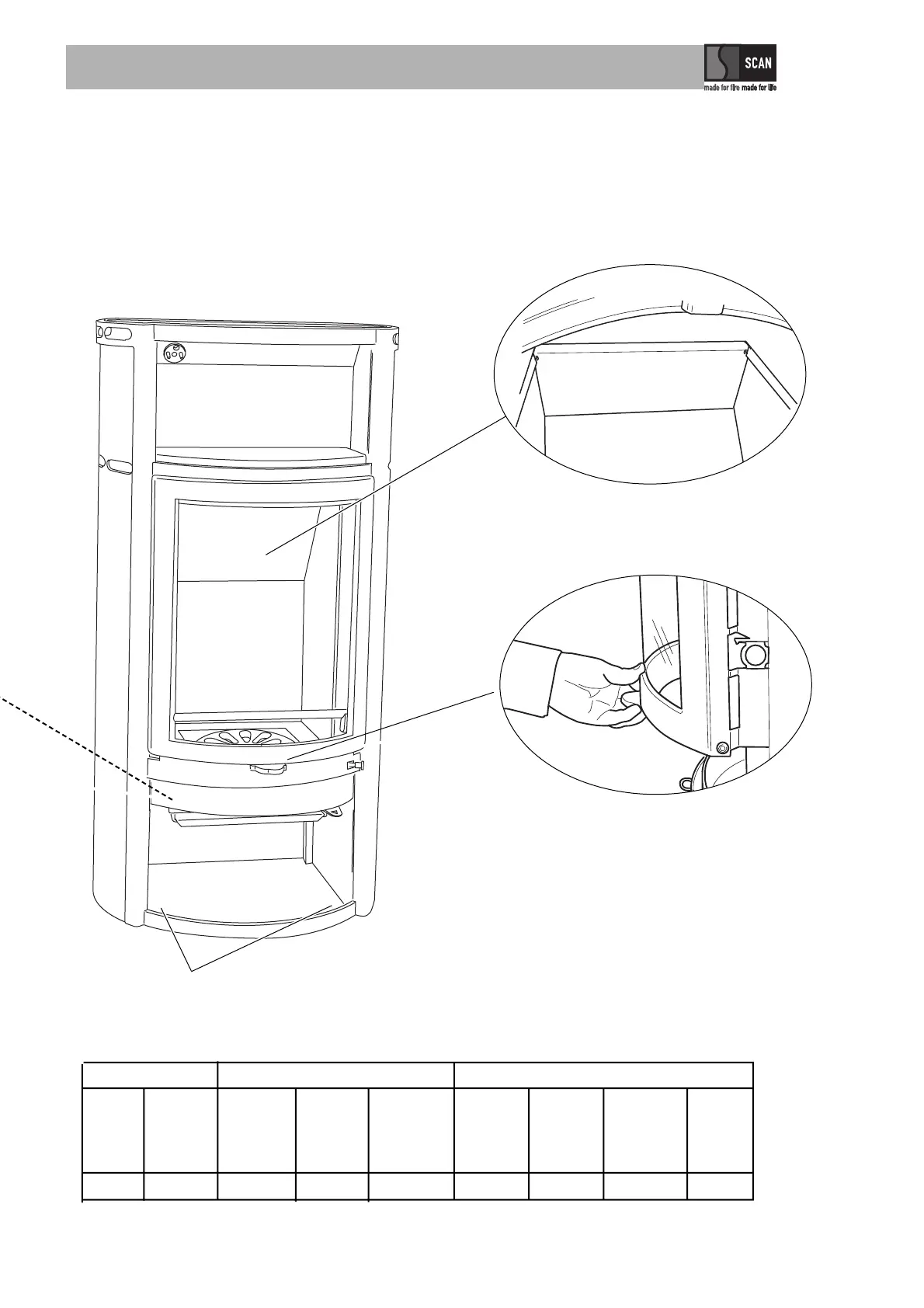

Ceramic smoke deflector
In order to dismount the ceramic smoke deflector, lift the
plate off the pins in the lateral combustion chamber plates
and take it down.
Accessories
For this model you can have the following accessories:
Handle
The door is opened by pulling up the handle.
Adjustment screws
The stove has two adjustment screws on the bottom that can
be used for levelling the stove.
• Lateral covering in soapstone or
ceramic tiles
• Top plate in soapstone or ceramic tile
• Baking-compartment door
• Small grill
• Swivel grill
• Steel floor plate
• Connection piece for fresh-air intake
Self-closing door (BA 1)
The stove can be delivered with a self-closing function
at the factory.
SCAN 29
Wires and wheels
Smooth operation of your wires and wheels requires
regular maintenance with a special grease purchased
through your local authorised dealer.
Data for calculation of the chimney
Stove
model
SCAN
Connecting
adaptor
mm
1
Density of
flue gas
flow
g/s
2
Flue gas
tempera-
ture
o
C
3
Minimum
draft
Pa
4
Density of
flue gas
flow
g/s
5
Flue gas
temperature
o
C
6
Minimum
draft
Pa
7
0,8
Minimum
draft
Pa
29
150 - - - 6 310 12 10
With closed doorsWith open doors
Column 2 and 5 show the flue gas temperature in the connecting adaptor
Column 3 and 6 show the lowest/minimum draft in Pa by rated value
Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value
