Adjustment of the handle

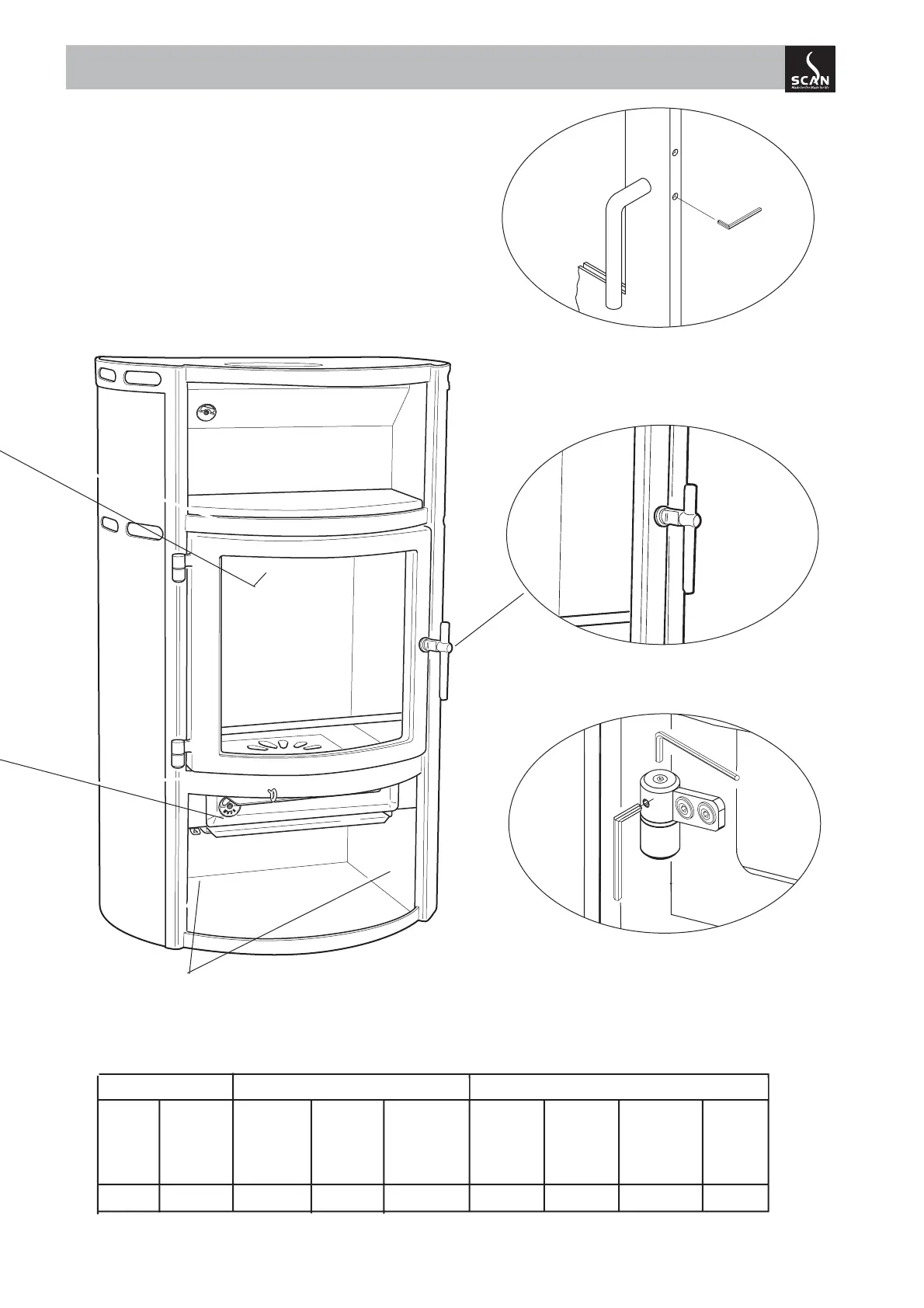

You can adjust the handle by loosening the screw
opposite the handle. The vertical position of the
handle can be adjusted with the other screw.
Accessories
For this model you can have the following accessories:
S
C
A
N
Handle
The door is opened by turning the handle counter-
clockwise.
Adjustment screws
The stove has two adjustment screws on the bot-
tom that can be used for levelling the stove.
Self-closing door (BA 1)
The door is prepared with a self-closing function at the fac-
tory. If you tighten the spring with the hexagon spanner, the
door will close automatically when you let go of it.
• Lateral covering in soapstone or
ceramic tiles
• Top plate in soapstone or ceramic
tile
• Baking-compartment door
• Connection piece for fresh-air
intake
• Swivel grill
• Steel floor plate
• Large grill
SCAN 3
Stove
model
SCAN
Connecting
adaptor
mm
1
Density of
flue gas
flow
g/s
2
Flue gas
tempera-
ture
o
C
3
Minimum
draft
Pa
4
Density of
flue gas
flow
g/s
5
Flue gas
temperature
o
C
6
Minimum
draft
Pa
7
0,8
Minimum
draft
Pa
3
180 - - - 9 310 15 12
With closed doorsWith open doors
Column 2 and 5 show the flue gas temperature in the connecting adaptor
Column 3 and 6 show the lowest/minimum draft in Pa by rated value
Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value
Data for calculation of the chimney
The stove can be prepared for an external air supply where fresh
air is let directly into the combustion chamber (must be mounted
from the factory).
