Accessories

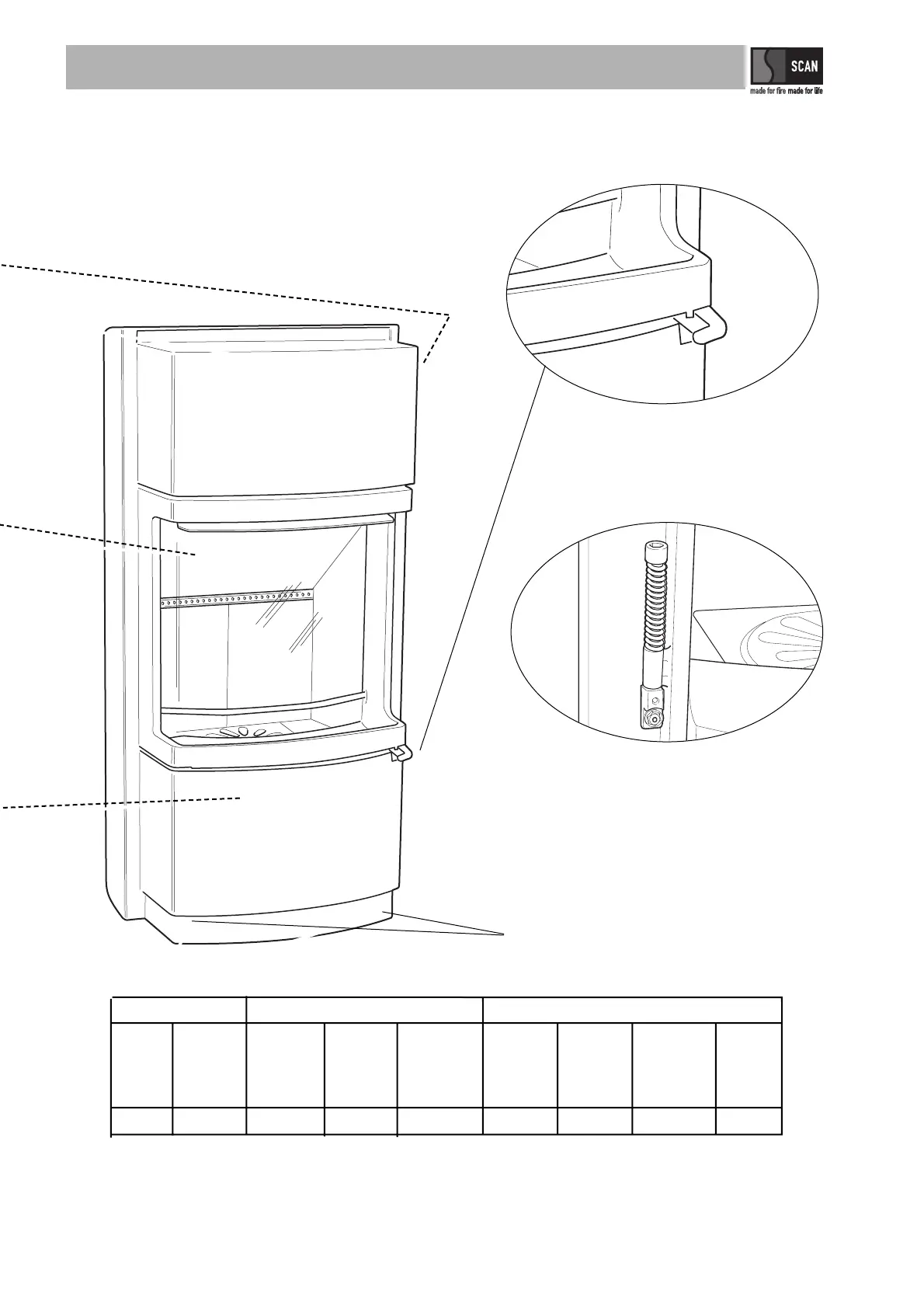

For this model you can have the following accessories:
Handle
The handle is elegantly integrated into the
front of the stove. Pull out the handle to
open.
Adjustment screws
The stove has two adjustment screws on
the bottom that can be used for levelling
the stove.
Self-closing door (BA 1)
The door is prepared with a self-closing function
at the factory. If you tighten the spring with the
hexagon spanner, the door will close automati-
cally when you let go of it.
• Soapstone top plate
• Steel floor plate
• Connection piece for fresh-air intake
You should read this manual as well as the General Instructions for Installation before beginning the installation.
SCAN 38
Data for calculation of the chimney
Stove
model
SCAN
Connecting
adaptor
mm
1
Density of
flue gas
flow
g/s
2
Flue gas
tempera-
ture
o
C
3
Minimum
draft
Pa
4
Density of
flue gas
flow
g/s
5
Flue gas
temperature
o
C
6
Minimum
draft
Pa
7
0,8
Minimum
draft
Pa
38
180 - - - 9 370 12 10
With closed doorsWith open doors
Column 2 and 5 show the flue gas temperature in the connecting adaptor
Column 3 and 6 show the lowest/minimum draft in Pa by rated value
Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value
