This document outlines the battery replacement procedure for the NOVA R and MULTIMATCH R devices, which are likely portable lighting solutions given the presence of a battery and light intensity controls. The guide, dated June 2, 2021, and authored by RU, is intended for users performing maintenance on these specific models.

Function Description:

The NOVA R and MULTIMATCH R devices appear to be robust, portable work lights designed for various applications where illumination is required. Their primary function is to provide adjustable light output, indicated by the presence of a control panel with percentage-based brightness settings (100%, 75%, 50%, 25%, 10%) and corresponding hour indicators for battery life at different intensity levels (1, 3, 5, 10 hours). This suggests that the devices are battery-powered and offer flexible lighting options to suit different tasks and conserve power when full brightness is not needed. The inclusion of a USB port implies a dual function: it can likely be used for charging the device itself and potentially for charging other small electronic devices, making it a versatile tool in a work environment. The durable construction, hinted at by the need for a back cover and internal components, suggests it's built to withstand demanding conditions.

Usage Features:

The devices offer intuitive control over their lighting output. Users can select different brightness levels, ranging from full power (100%) down to a low-power mode (10%). This adjustability is crucial for various scenarios, from illuminating a large workspace to providing subtle light for close-up tasks or extending battery life. The hour indicators next to each brightness setting provide immediate feedback on expected runtimes, allowing users to plan their work effectively without unexpected power loss. The presence of a USB port significantly enhances the device's utility. Beyond its primary function as a light source, it can act as a portable power bank, enabling users to charge smartphones, tablets, or other USB-powered tools directly from the device's internal battery. This feature is particularly valuable in remote locations or during power outages where access to conventional charging points is limited. The design, with a removable back cover, suggests a modular approach, allowing for user-level maintenance, specifically battery replacement, which extends the product's lifespan and reduces reliance on professional repair services.

Maintenance Features:

The manual focuses exclusively on battery replacement, indicating that this is a key user-serviceable aspect of the device's maintenance. The process is broken down into clear, sequential steps, making it accessible even for users with limited technical expertise.

Removing the back cover: This initial step, involving the removal of screws, grants access to the internal components. The visual guide clearly marks the screw locations, simplifying the process.
Unplugging the flat cable: This step highlights the modular design of the internal electronics, where components are connected via easily detachable cables. The image clearly shows the flat cable and the direction for unplugging it, emphasizing the importance of careful handling to avoid damage.
Unplugging the battery connector: This is a critical step for isolating the battery from the rest of the device. The visual aid precisely points out the battery connector, ensuring users can identify and disconnect it correctly.
Removing and mounting the new battery: This is the core of the maintenance procedure. The guide shows the battery secured by screws, indicating that it's firmly held in place but easily removable. The emphasis on "mounting the new battery" implies a straightforward swap.
Connecting the battery to the battery connector: This step reverses the disconnection process, ensuring the new battery is properly integrated. The recommendation to "secure the connector with a small dab of hot glue" is a practical tip for enhancing durability and preventing accidental disconnections, especially in devices that might experience vibrations or impacts during use.
Connecting the flat cable: Reconnecting this cable, with a specific note on its orientation, reinforces the importance of correct assembly for the device to function properly.
Mounting the back cover: The final step involves reassembling the device, ensuring all internal components are protected.

The detailed, step-by-step instructions, coupled with clear photographic guidance, make the battery replacement process straightforward and user-friendly. This approach to maintenance empowers users to extend the life of their devices, reducing waste and the need for professional repairs, which aligns with principles of product longevity and sustainability. The design allows for easy access to the battery, suggesting that battery degradation over time is an anticipated factor in the product's lifecycle, and the manufacturer has provided a clear path for users to address it.

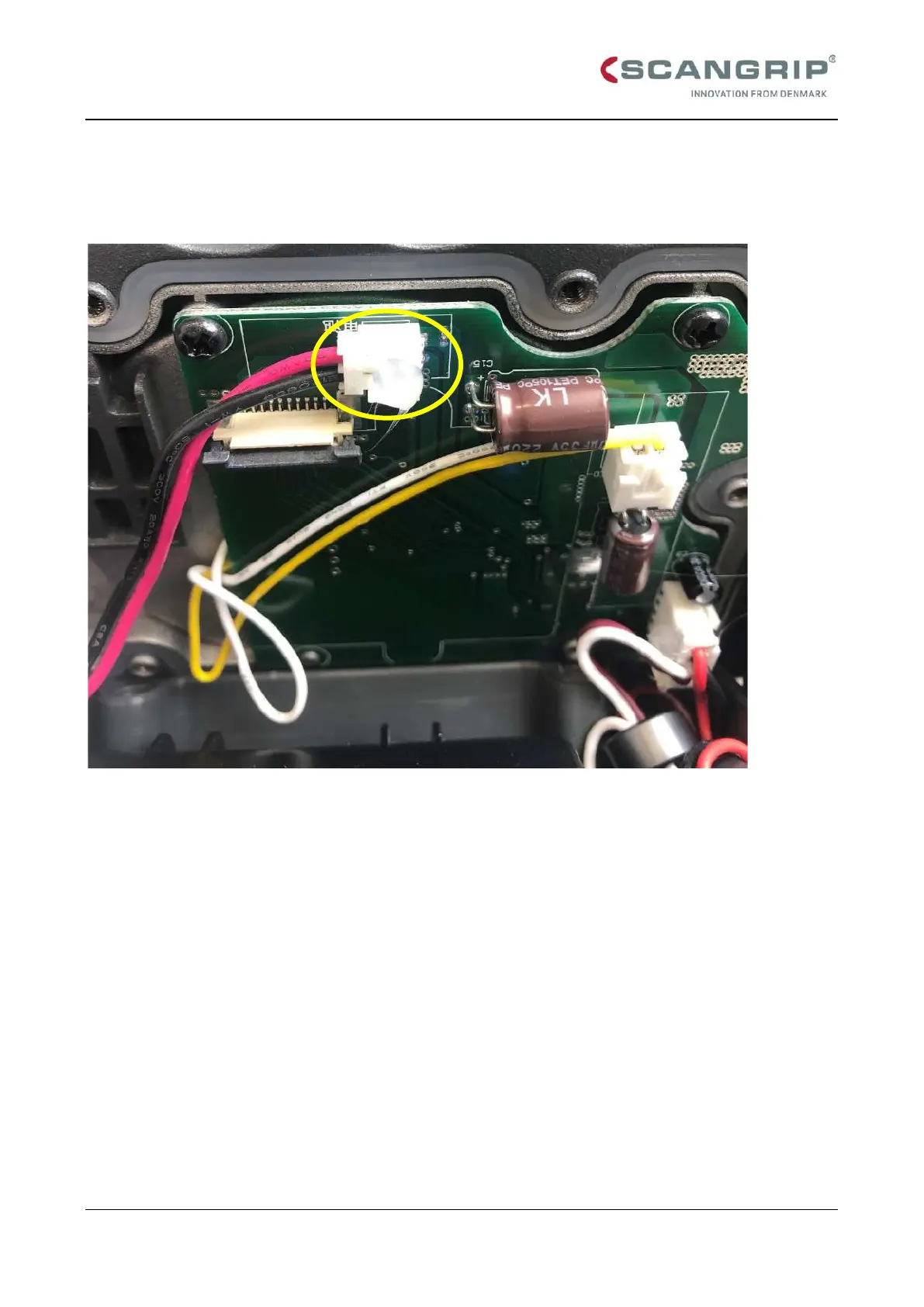

SCANGRIP Nova R - Step 6: Connect Battery Connector
