The provided manual describes various components of the ROKK Mini mounting system by Scanstrut, designed for securing devices in marine and other dynamic environments. The system is modular, allowing users to combine different bases, bodies, and clamps to suit their specific needs.

ROKK Mini Rail Mount - RLS-402

Function Description: The ROKK Mini Rail Mount (RLS-402) is a robust mounting solution designed to attach to rails, providing a stable base for other ROKK Mini components. It is ideal for securing devices like phones, tablets, or other equipment to existing rails on boats, vehicles, or other structures. The mount is designed to withstand dynamic environments, assuming accelerations up to 6g.

Important Technical Specifications:

Rail Diameter Compatibility: 20 - 34 mm (0.8 - 1.3 inches)
Minimum Rail Radius (R MIN): 82 mm (3.2 inches)
Dimensions:
- Height (from rail to top of mount): 62 mm (2.44 inches)
- Width (of rail clamp): 58 mm (2.28 inches)
- Overall height with adjustable body and top plate: 118 mm (4.65 inches)
- Overall width with adjustable body and top plate: 60 mm (2.36 inches)
Maximum Load: 1.2 kg (2.65 lbs)
Material: Product shown with RLS-AM Adjustable Body & RL-502 top plate.
Environmental Rating: Designed for dynamic environments with accelerations up to 6g.

Usage Features: The rail mount provides a secure attachment point for the ROKK Mini adjustable body and various device clamps. Its design allows for easy installation on a range of rail sizes, making it versatile for different applications. The modular nature means it can be combined with other ROKK Mini parts to create a complete mounting solution.

Maintenance Features: No specific maintenance features are detailed for the rail mount itself, but its robust construction suggests durability in harsh environments. Regular inspection for tightness and wear would be advisable.

Rokk Mini Adjustable Body RLS-AM

Function Description: The ROKK Mini Adjustable Body (RLS-AM) is a core component of the ROKK Mini system, providing flexible positioning for mounted devices. It allows for multi-axis adjustment, enabling users to orient their devices at optimal viewing angles. This component acts as an intermediary between a ROKK Mini base (like the rail mount or screw-down base) and a device clamp (like a phone or tablet clamp).

Important Technical Specifications:

Dimensions:
- Overall height (with top plate): 107 mm (4.21 inches)
- Overall width (with top plate): 60 mm (2.36 inches)
Maximum Load: 1.2 kg (2.65 lbs)
Environmental Rating: Designed for dynamic environments with accelerations up to 6g.
Compatibility: Shown with RL-502 top plate and RLS-401 base.

Usage Features: The adjustable body offers significant flexibility in positioning, allowing for rotation and tilt adjustments. This ensures that devices can be comfortably viewed from various angles, enhancing usability in different scenarios. The modular design means it can be easily integrated with other ROKK Mini bases and clamps.

Maintenance Features: No specific maintenance features are detailed. The robust design suggests it is built for durability in demanding conditions.

Universal Phone Clamp RL-509

Function Description: The Universal Phone Clamp (RL-509) is designed to securely hold a wide range of smartphones. It attaches to the ROKK Mini adjustable body, providing a stable and adjustable platform for mobile devices.

Important Technical Specifications:

Device Compatibility: Fits devices with widths from 45 - 95 mm (1.77 - 3.74 inches).
Maximum Load: 1.2 kg (2.65 lbs)
Environmental Rating: Designed for dynamic environments with accelerations up to 6g.

Usage Features: The clamp's adjustable width ensures compatibility with most smartphones, offering a secure grip. When combined with the adjustable body, it allows for optimal positioning of the phone for navigation, communication, or entertainment. The design facilitates easy insertion and removal of the phone.

Maintenance Features: No specific maintenance features are detailed. Regular checks for spring tension and grip integrity would be beneficial.

Installation Components and Accessories

The manual also illustrates various installation components and accessories for the ROKK Mini system:

Screw Down RLS-401:

Function: A fixed base that screws directly onto a surface.
Components: 4 x M4x16MM Posi Self Tap screws, screw down base, pencil, power drill (Ø1/16" / 2.0 mm drill bit), Posi screwdriver.
Usage: Provides a permanent and secure mounting point.

Self-Adhesive RLS-404:

Function: A base that adheres to smooth, non-porous surfaces.
Components: Self-adhesive base.
Usage: Offers a less invasive mounting option for suitable surfaces.

Suction Cup RLS-405:

Function: A temporary mounting base that attaches to non-porous, smooth surfaces like GRP or glass using suction.
Components: Suction cup base.
Usage: Ideal for temporary installations or when drilling is not an option.

Zip Tie RLS-403:

Function: A flexible mounting option that uses zip ties to attach to various structures.
Components: 4 x zip tie, base unit.
Usage: Versatile for attaching to irregular shapes or when a permanent fixture is not desired.

T-Track RLS-407:

Function: A base designed to slide into existing T-tracks, common on boats and other equipment.
Components: T-track base.
Usage: Integrates seamlessly with T-track systems for adjustable positioning.

Rail Mount RLS-402 (Installation Details):

Components: Rail mount base, 6 x rubber patches, 4mm allen key, 2 x M4 x 30mm Socket Head screws.
Usage: Provides a secure grip on rails using rubber inserts and clamping screws.

Tablet Clamp RL-508:

Function: A larger clamp designed to hold tablets securely.
Components: M6 socket head, M6 Spring Washer, M6 20mm penny washer, Tablet Clamp, 6mm Allen Key.
Usage: Provides a stable platform for tablets, allowing for adjustable viewing angles when combined with the ROKK Mini adjustable body.

Phone Clamp RL-509 (Installation Details):

Components: M6 socket head, M6 Spring Washer, Phone Clamp, 6mm Allen Key.
Usage: Similar to the universal phone clamp, but with specific installation components for attachment to the adjustable body.

360 Body RLS-AM:

Function: Illustrates the full range of motion for the adjustable body, including 360° rotation and 140° tilt.
Usage: Highlights the flexibility of the ROKK Mini system for precise device positioning.

General System Features:

Modularity: The ROKK Mini system is highly modular, allowing users to mix and match bases, adjustable bodies, and device clamps to create custom mounting solutions.
Robustness: All components are designed for life at sea and in dynamic environments, with a consistent maximum load rating of 1.2 kg (2.65 lbs) and tested for accelerations up to 6g.
Ease of Installation: The manual provides clear, step-by-step instructions for installing each component, often requiring common tools.
Versatility: The range of bases (screw-down, adhesive, suction cup, rail mount, zip tie, T-track) ensures compatibility with a wide variety of surfaces and applications.

Maintenance (General): While specific maintenance instructions are not detailed for each component, the "designed for life at sea" tagline suggests a focus on durability and resistance to harsh marine environments. Regular inspection of all mounting points, screws, and clamping mechanisms for tightness and wear would be prudent to ensure continued secure operation.

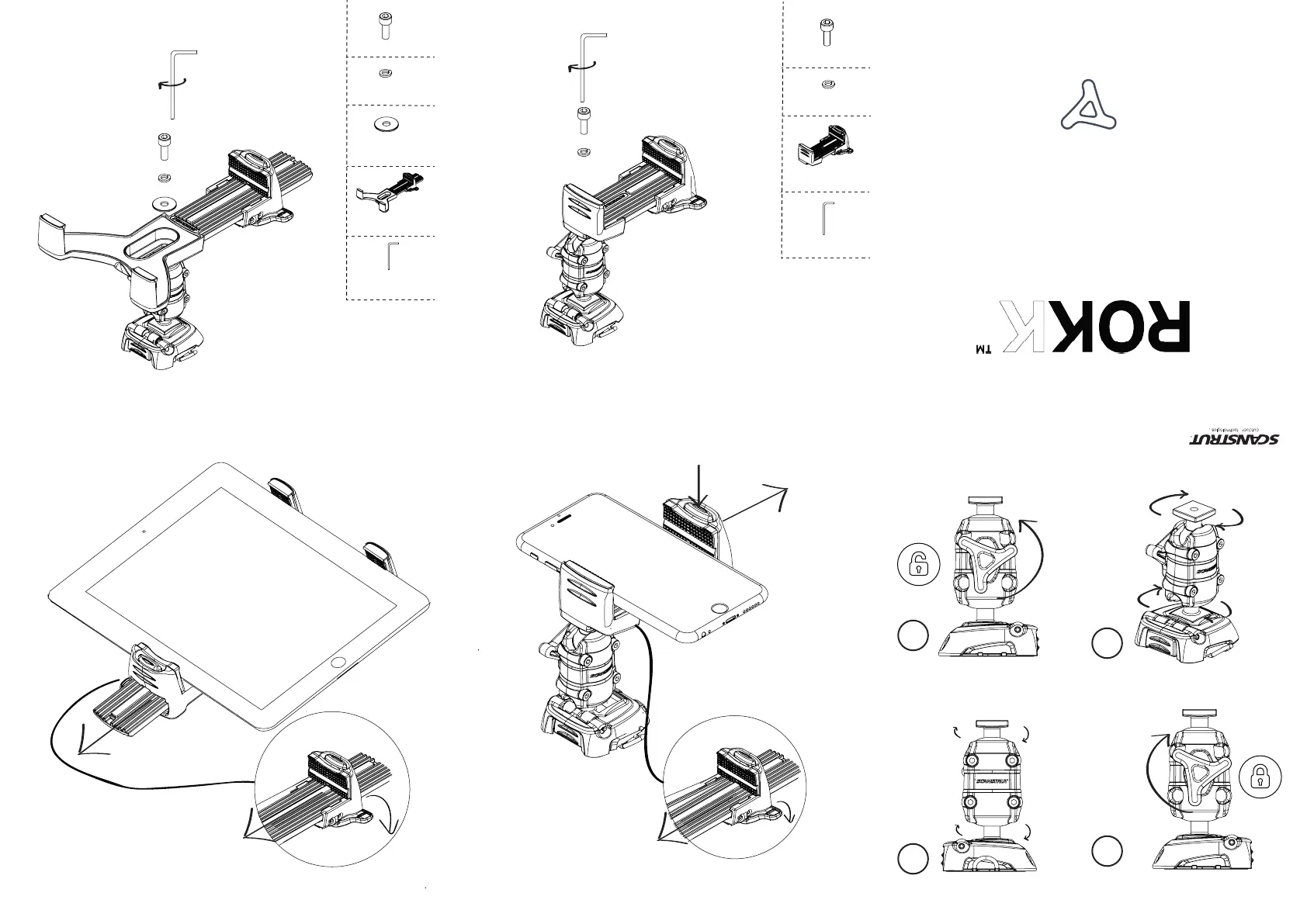

Scanstrut ROKK Mini RL 508 - Clamp and Body Assembly; Tablet Clamp RL-508 and Phone Clamp RL-509 Attachment; 360 Body RLS-AM Adjustment
