• Remove the battery.
• Unscrew and remove the piece
2
.
• Roll up the stroke set
5
then unscew
the mandrel
1
.
• Replace the mandrel.
• It is recommended to oil
or grease the mandrel
before use in order to
prevent premature wear.
100%
75%
50%
25%
OPERATING INSTRUCTIONS
MAINTENANCE / TROUBLESHOOTING / SAFETY INFORMATION
● CHANGE MANDRELS:
● ADJUSTING THE TOOL:
See user manual.
● REMOVE THE BATTERY:
Battery is locked to the riveting tool with a spring.
To remove the battery, press the 2 unlock buttons
6
and slide the
battery.
4 lights on the battery panel allows you to check the remaining
power. Press and hold the blue button to check the battery level :
Green light on the charger:
the battery is fully charged
Red light on the charger:
the battery has to be charged
See user manual.
The tool is equipped with 3
powerful LED lights to enlight
the work place.
Turn on the light only
Press the trigger half way to
turn on the light. The lights will
shutdown after 10’.
Turn on the tool with the lights on
Press the trigger to set the rivet/blind nut. The lights turn on and
remain on until 10’ after the trigger is released.
● BLIND NUT INSTALLATION:
● BATTERY LEVEL INDICATOR:
● LED LIGHTS:
SERVICE TECHNIQUE
28 rue Paul Dubrule - 59810 LESQUIN - Tél. : 03 20 32 98 18 - technique@scellit.com - www.scellit.com
123
4
5
6
7
8
9
10
Before installation rst carry out the ‘tool setting’.
• Insert nut in to the hole and verify that hole/nut/tool are well aligned.
• Press the button during the whole installation cycle (about 1 second).
IMPORTANT :
Accompany the automatic
unscrewing by pulling the tool
back slightly.
1
1 2 3
The information on the battery panel can vary
(+/- 5%) due to environmental conditions.
5

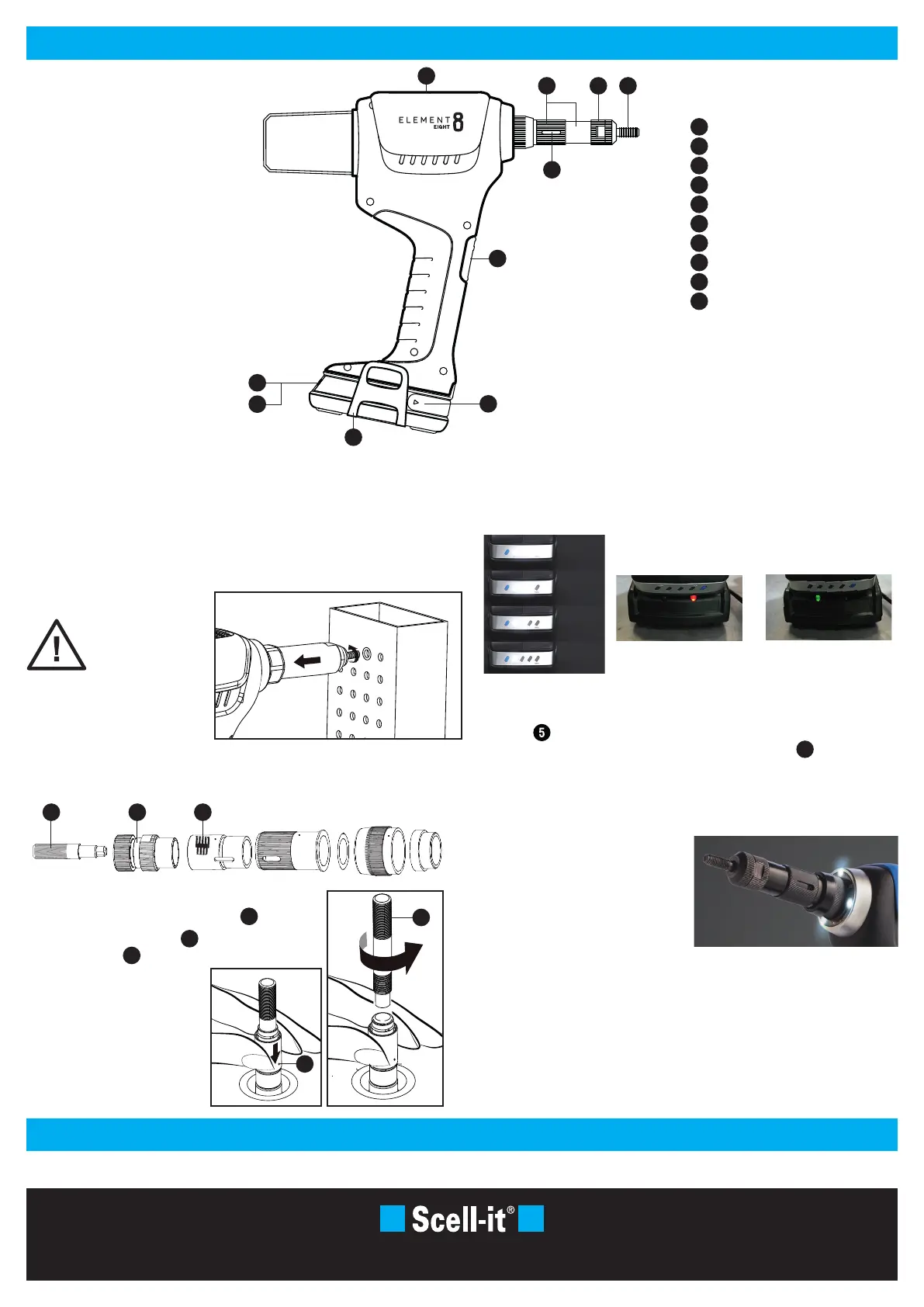

Mandrel
Anvil and locknut
Stroke set with serrations
Hole to release jammed nut
Tool body
Button
Battery switch
Belt clip
Battery level check button
Battery level indication
1
2
3
4
5
6
7
8
9
10
