SCHABEN LA9000 - GREASING PROCEDURES; Lubrication Points and Frequency

- Wipe grease fitting with a clean cloth before greasing
to prevent injecting dirt and grit into joint.
- Replace and repair broken fittings immediately.
- If a fitting will not take grease, remove and clean
thoroughly. Also clean lubricant passageway.
Replace fitting if necessary.
*Note: Grease 20 points 8 hours or daily.
Along with 2 points per coulter. Hubs and
spindles should be greased biannually.
*Note: It is best to grease the machine at
the end of the day to ensure that fertilizer/
chemicals do not have time to start corrod-
ing parts.
GREASING

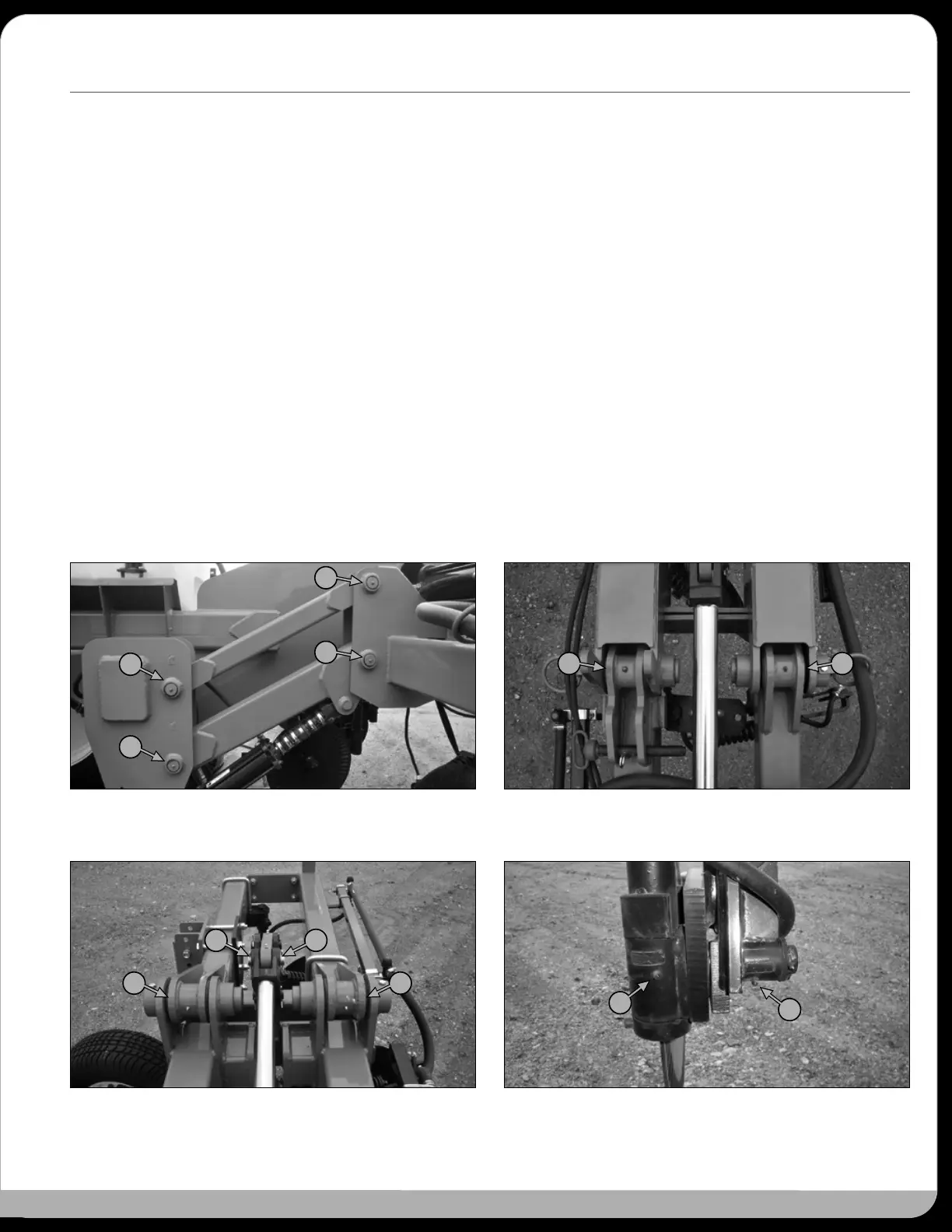

L/R GREASE LOCATIONS
Apply adequate grease to the following:
1. L/R Main Wing Hinge (Fig. 20b)
2. L/R Flip Wing (35’ and 40’) (Fig. 20c)
3. Coulter Pivots (Fig. 20d)
4. Parallel Hinge Bushings (Fig. 20a)
5. Piston Pump (Refer to pump operators manual)
FIG. 20a
4
4
4
4
FIG. 20b
1 1
FIG. 20c
2
2
2
2
FIG. 20d
3
3
SCHABEN INDUSTRIES • COLUMBUS, NE • NEWTON, KS • BAKERSFIELD, CA - 6
