Laser Beam Couplers Series 60SMS
Adjustment_60SMS 10.12.2020 © Schäfter+Kirchhoff GmbH
Schäfter+Kirchhoff GmbH Kieler Str. 212 22525 Hamburg, Germany +49 40 85 39 97-0 info@sukhamburg.de www.sukhamburg.com
3

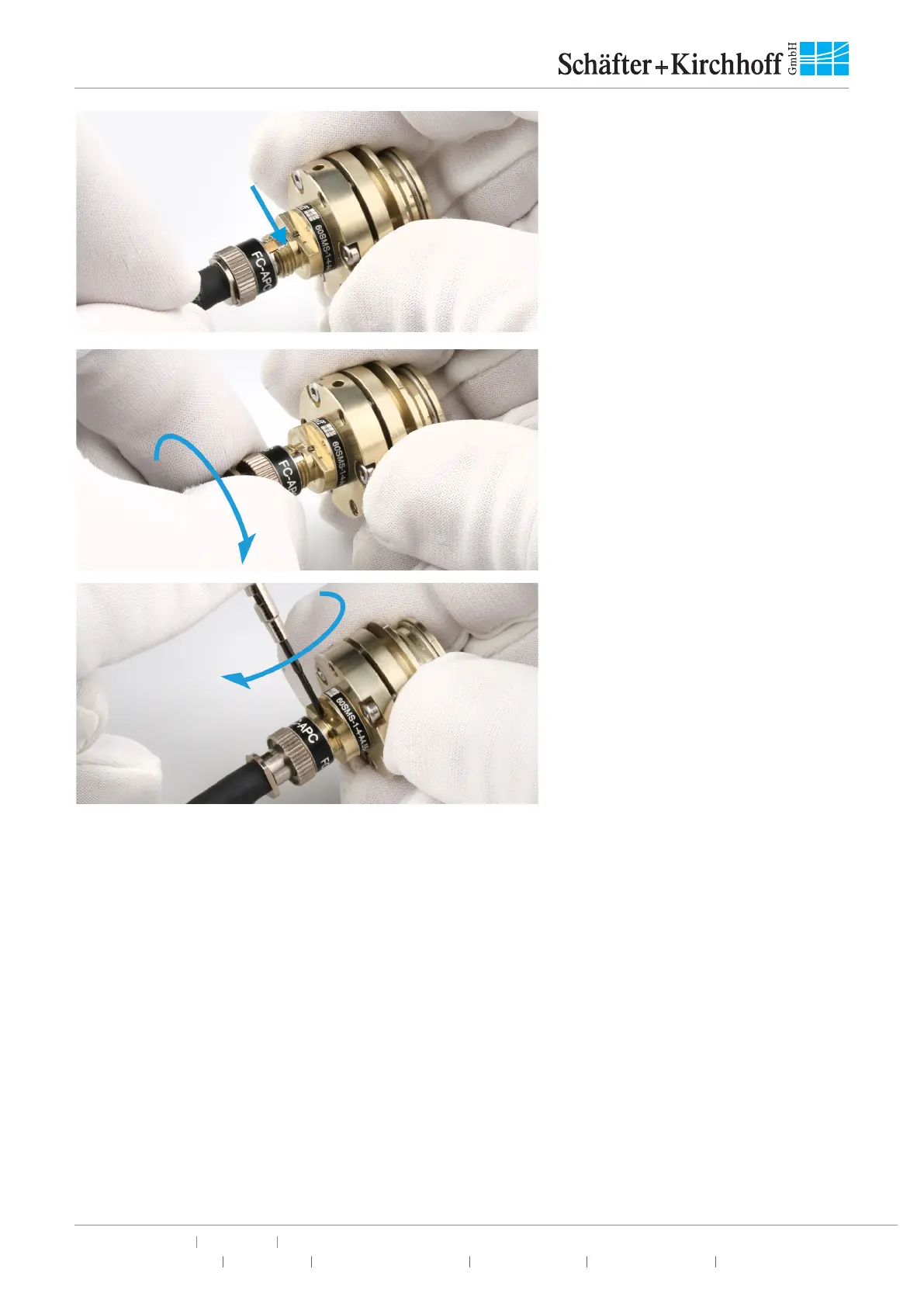

Figure 6:
Then, orient the connector key in a
way that it is pressed gently onto
the right-hand side of the receptacle
notch.
Figure 7:
Gently screw on the connector cap
nut onto the receptacle until it is
finger-tight.
Figure 8:
Finally, gently tighten the fiber grub
screw to reduce the free play of the
ferrule in the receptacle.
The free play in between the connector ferrule and receptacle is only a few microns, but necessary for
inserting the ferrule without force.
The tightened grub screw and the right-hand orientation rule for the connector, ensure a high reproducibility
in mode field position and angle, which is especially important for attaching and reattaching polarization-
maintaining fibers reproducibly.
