Laser Beam Couplers Series 60SMS
Adjustment_60SMS 10.12.2020 © Schäfter+Kirchhoff GmbH
Schäfter+Kirchhoff GmbH Kieler Str. 212 22525 Hamburg, Germany +49 40 85 39 97-0 info@sukhamburg.de www.sukhamburg.com
5

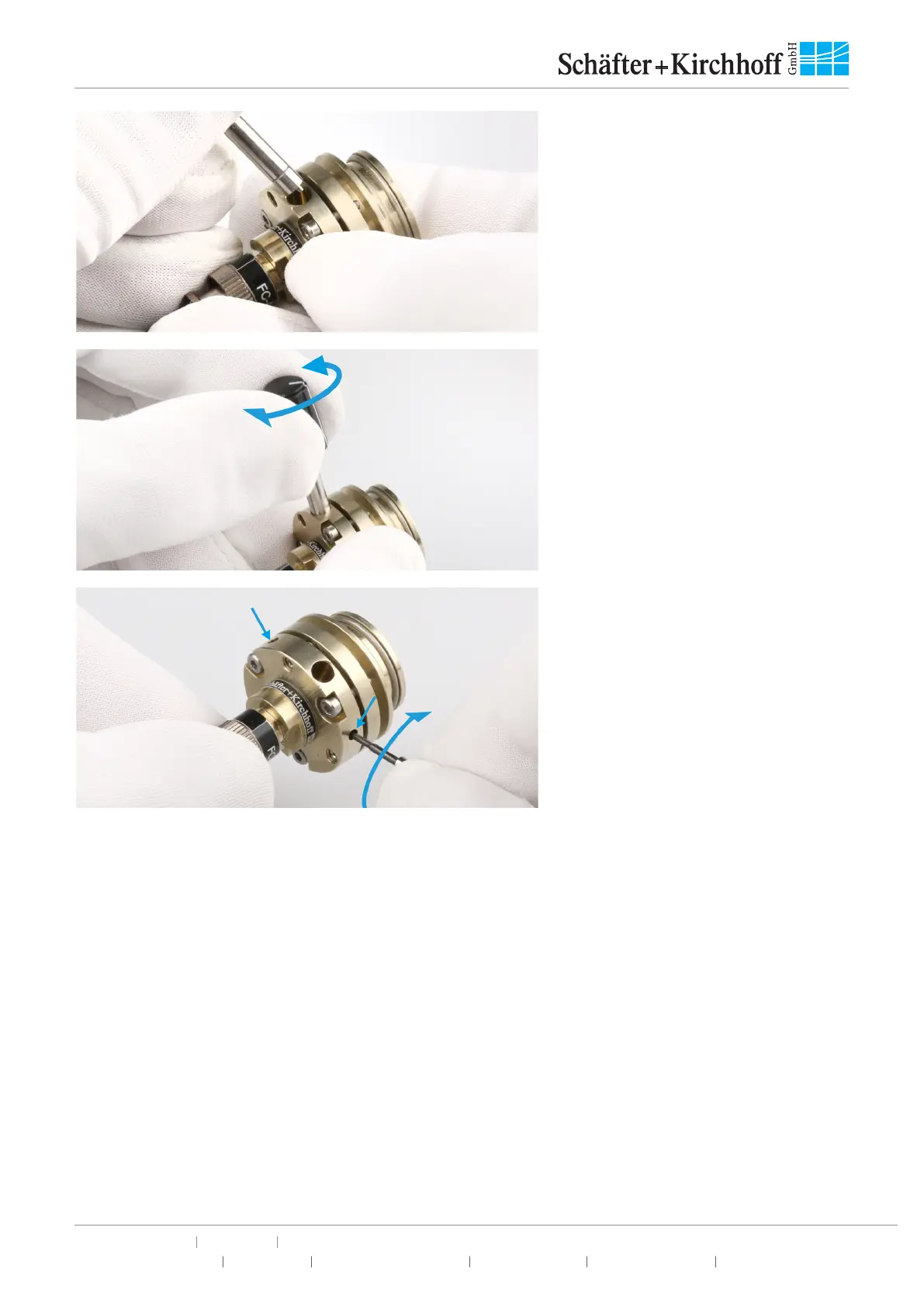

Figure 10:
Insert the eccentric key type 60EX-4 or
type 60EX-5 into the large hole.
Figure 11:
Now, adjust the focus setting by ro-
tating the eccentric key. Adjust the
collimation by minimizing the size of the
laser spot on the target about half the
Rayleigh length z
R
away.
Figure 12:
Finally, fix the two grub screws in order
to lock the focus setting.
