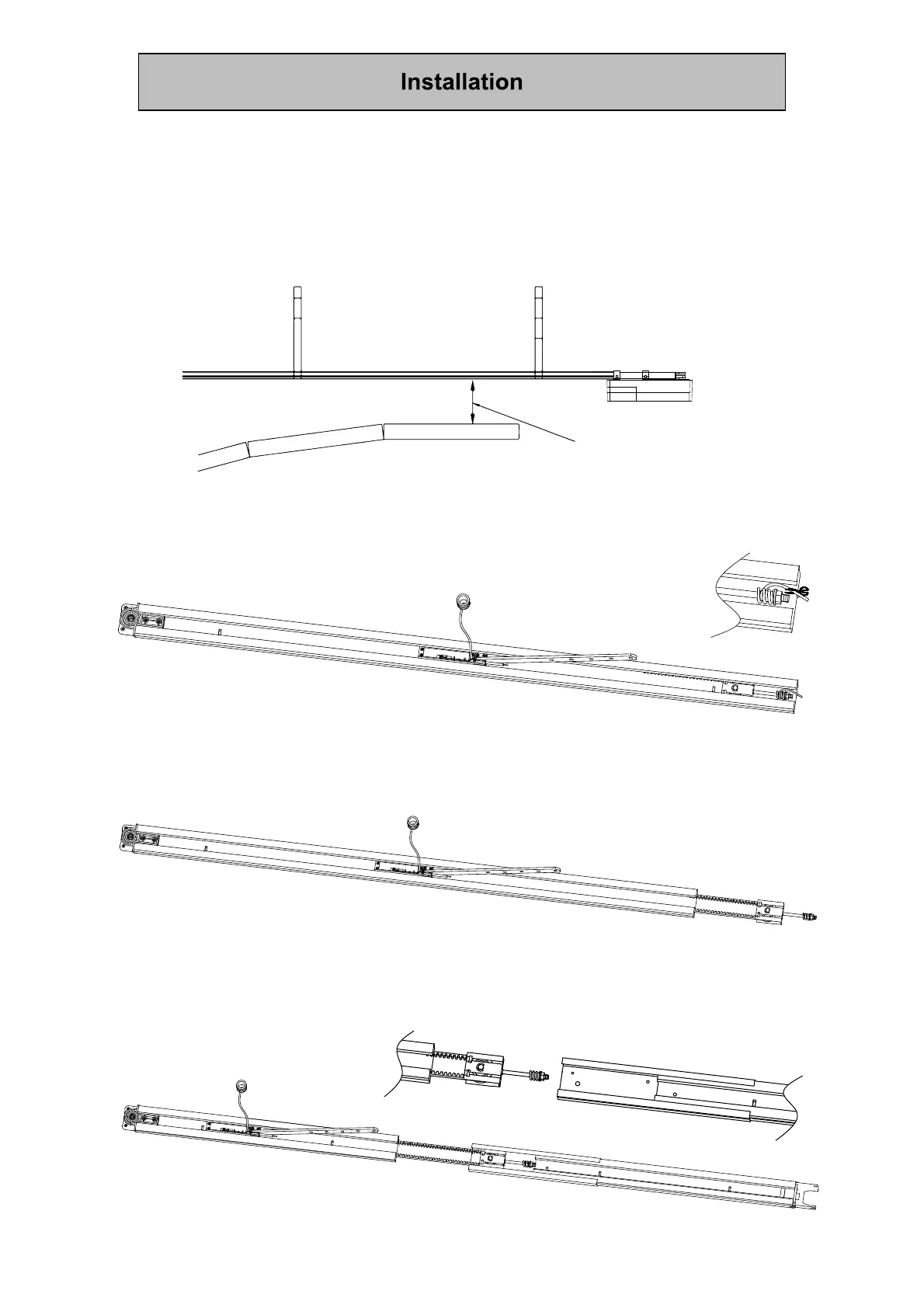

Boom Rail Assembly
Figure 1
1. Separate the cable tie from the first section of the rail.
2. Pull the belt with the belt wheel out of the first section of the rail.
3. Slide the belt wheel with the toothed belt into the second section of the rail. Now join the two
parts of the rail together using the connector piece.
Requirements
A distance of 30 mm and a maximum of 400 mm is required between the rails and the door in order to mount
the operator correctly.
!!! You can find an extensive installation video at www.schartec.de !!!
Figure 2
Figure 3
Figure 4
35
min. 30 mm distance
