Step 3
Place the Easy-Click bracket anywhere along the rail. Position it
where you would like to mount the boom to the ceiling (generally
towards the motor end). Once the bracket is in position, twist until
the bracket 'clicks' into position then bend the 2 side pieces under
to secure the bracket to the boom.
Step 1
Attach the opener to the boom rail using the motor shaft sleeve
(A). Secure the rail to the opener with the 2 “U” brackets and the
6 mm nuts (F) supplied.
Step 2
Place the boom rail and opener assembly centrally on the garage
floor with the opener opposite the garage door. Lift the front of the
rail up to the wall bracket. Insert the clevis pin and secure it with
the split pin supplied (C).
Step 4
Lift and support the opener with a ladder so it is positioned
centrally and level.
WARNING: Do not allow children around the door, opener or
supporting ladder -- serious injury and/or damage may result
from failure to follow this warning.
Figure 8
Figure 9
Figure 10

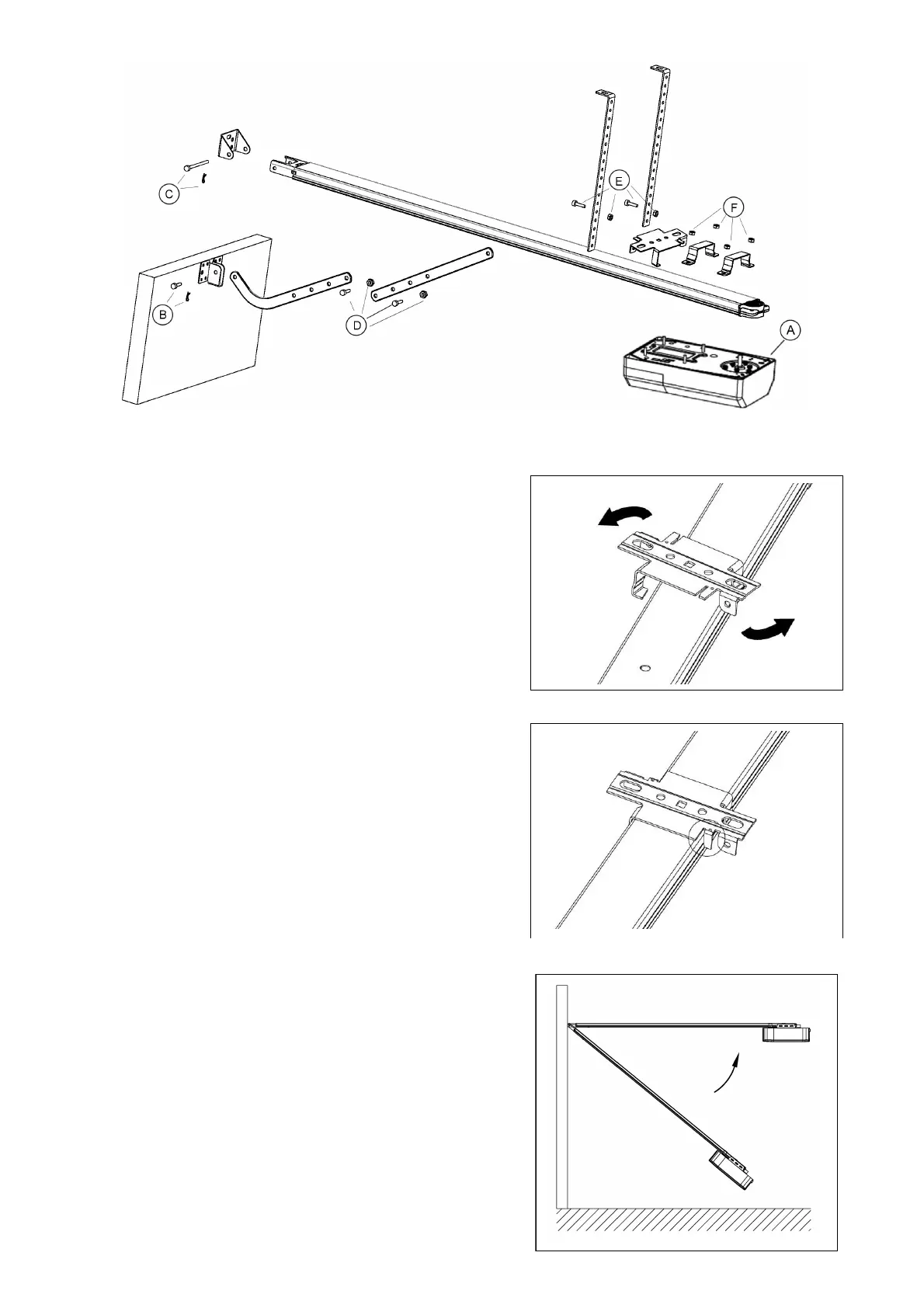

Installing the boom rail and opener
Figure 7
