Schartec Move 1000 - Page 43

43
+12 PE GND PB DOOR GND +35
O/S/C
Push-Button /
Key-Switch
+12 PE GND PB DOOR GND +35
Signalleuchte
24-35V DC
Max. 500 mA
+12 PE GND PB DOOR GND +35
Schlupftür
+12 PE GND PB DOOR GND +35
+ -
+ -
COM OUT
NC NO
Anschluss Lichtschranke

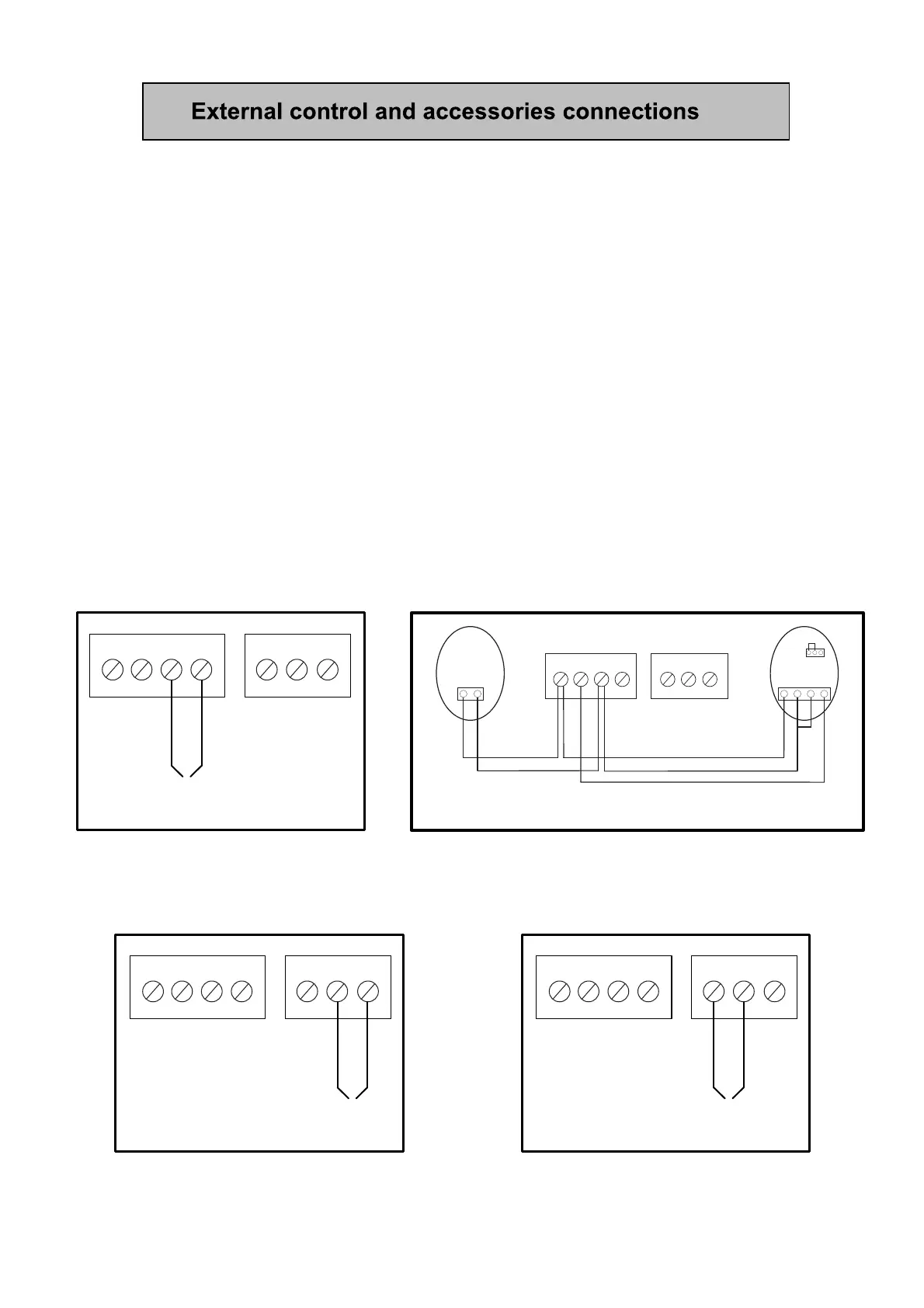

Figure 14 Figure 15
Figure 16 Figure 17
1. The O/S/C connection
This connection is used for a push-button or a key-switch.
2. Photocell connection
Connecting a photocell increases the safety surrounding your garage door.
WARNING! Remove the bridge in the connection row if you use a photocell and make sure to review its
function before use.
3. Warning light connection
This connection is suited for the following warning lights: 24-35V DC, max. 12 Watt, max 500 mA.
4. Wicket Door connection (door-in-door)
For garage doors that have a built-in “pass” or “wicket” door. This function ensure that the garage door can’t
be opened unless the small pass door is closed.
WARNING! Remove the bridge in the connection row if you use a photocell and make sure to review its
function before use.
