Schenker ZEN 100 User Manual

4 – INSTALLATION COD: 150Z24.B.2021
EN
THE PRESENT MANUAL BELONGS TO - Schenker Italia - ALL RIGHTS RESERVED
21

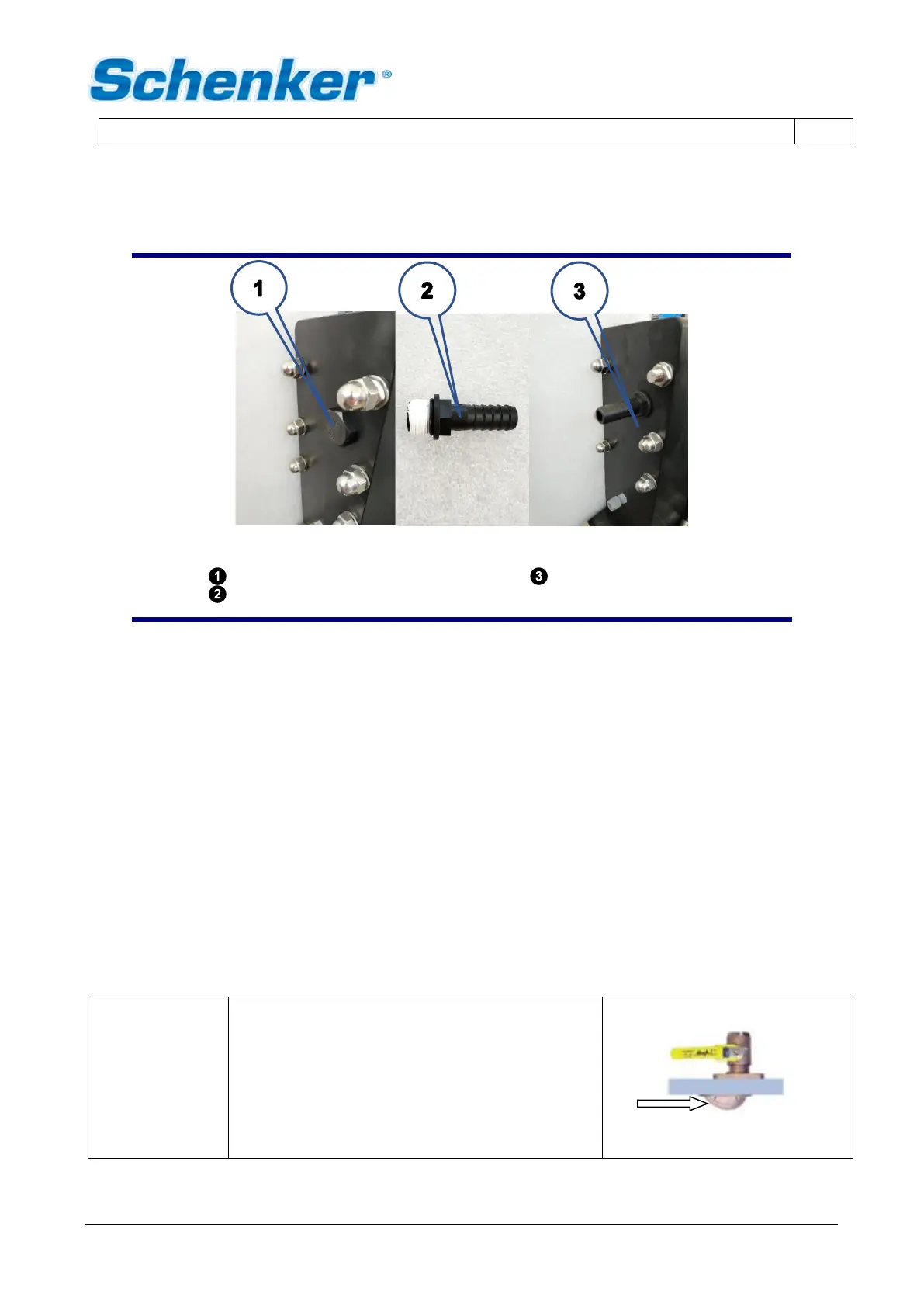

There is a plug on the right side of the watermaker (1). This plug has to be removed with a key #27 and has
to be replaced with a housebarb (2), provided with the installation kit. It could be installed with a key #24 until
its mechanical stop. Don’t exceed with the torque.
SEAWATER IN INSTALLATION
FIG. 4-6
Plug
Final installation
IN housebarb
4.2.3 Accessories
The non-return valve has to be installed vertically as close as possible to the seawater intake, following the
direction of the arrow.
The active carbon filter (and the attached electrovalve) has to be placed next to the pump group, if possible,
vertically and easily accessible.
4.3 Installation
4.3.1 Water intake and discharge
For a correct installation of the watermaker, it is necessary to arrange the following water intake and discharge
out of the board:
• Seawater intake.
• Fresh water intake for washing.
• Brine discharge.
4.3.2 Seawater intake
Seacock with
through-hull
fitting
The ideal seawater intake should be 3/4" minimum
and located in a central position, well under the
waterline even when the vessel is well heeled over.
A scoop skin fitting is recommended. It must be
oriented to the bow of the boat.
In case of powerboats with a cruising speed above
15 knot it is advised to make a small hole (8 mm.
diameter) on the back of the shape, in order to
reduce dynamic prevalence during navigation.
Size 3/4”
