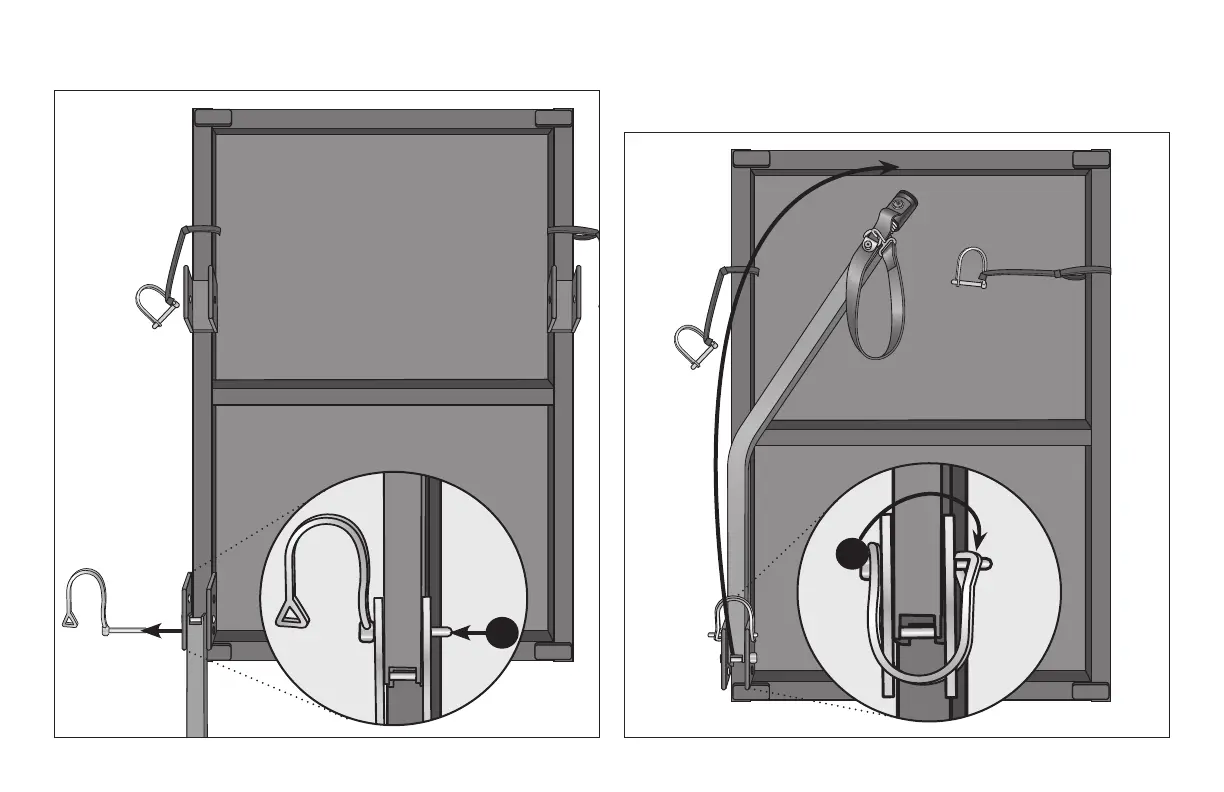

Figure 6.5 Figure 6.6
❺ Remove the locking pin from the tow bracket. Figure 6.5 ❻ Rotate the tow bar back into the frame. Insert the locking pin
through the tow bar and frame. Secure the safety loop over
the end of the locking pin. Figure 6.6
21 Schwinn Cargo Trailer • model 13-SC320
5
6
