This section shows how to assemble the angled arm clamp.
The picture below shows the two modules of the angled arm
clamp, which are upper and lower.

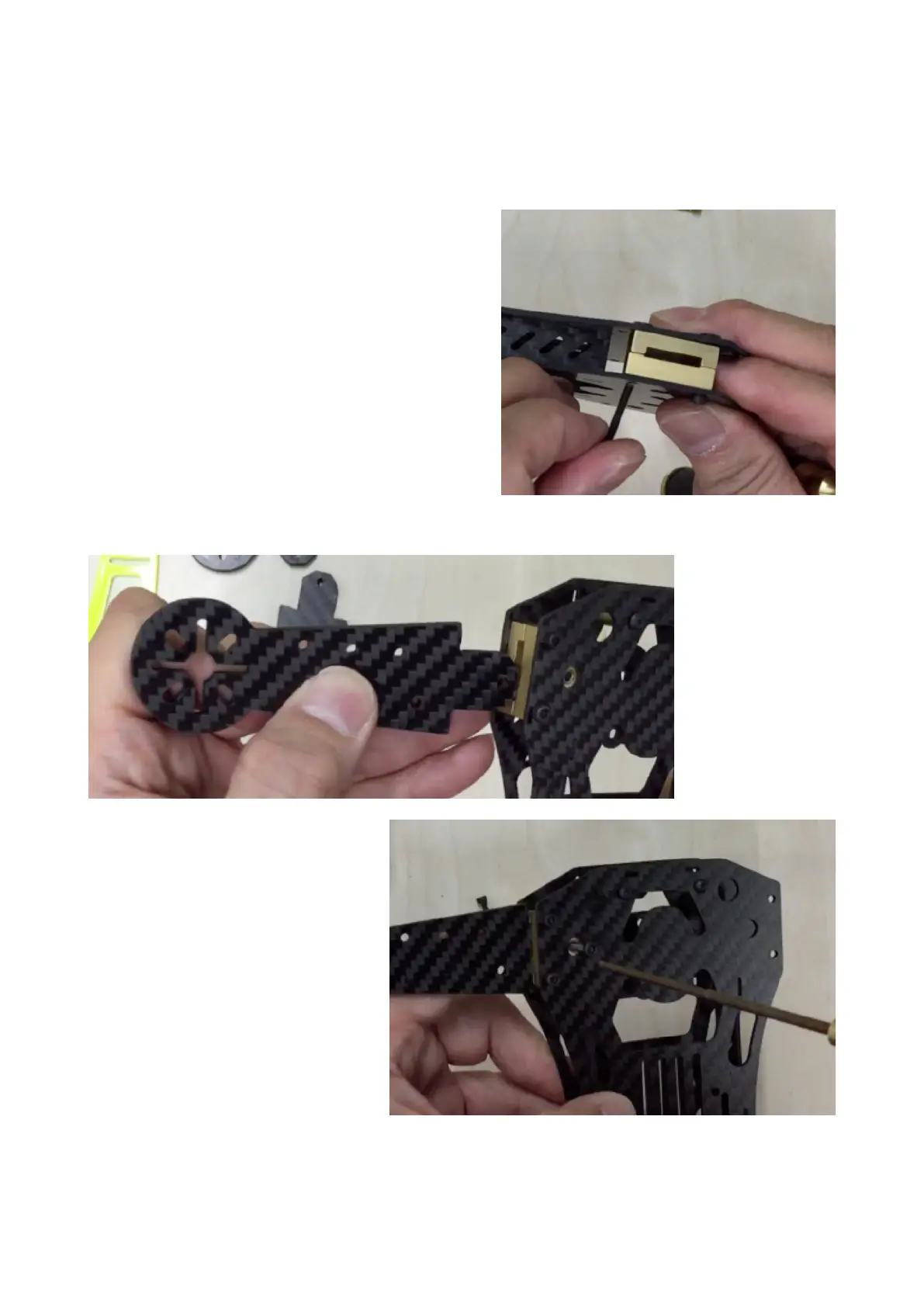

Position the upper and lower
modules in between the decks
using M2.5 *14 hexagon head to
go through the frame and the
clamp but do not tighten at this
stage.
Slot in the 3mm carbon
motor arm into the clamp (front
motor arm).
Use M2.5 *12 hexagon
screw fix through the
motor arm and tighten
the screws along with
the additional two M2.5
*14 screws.
