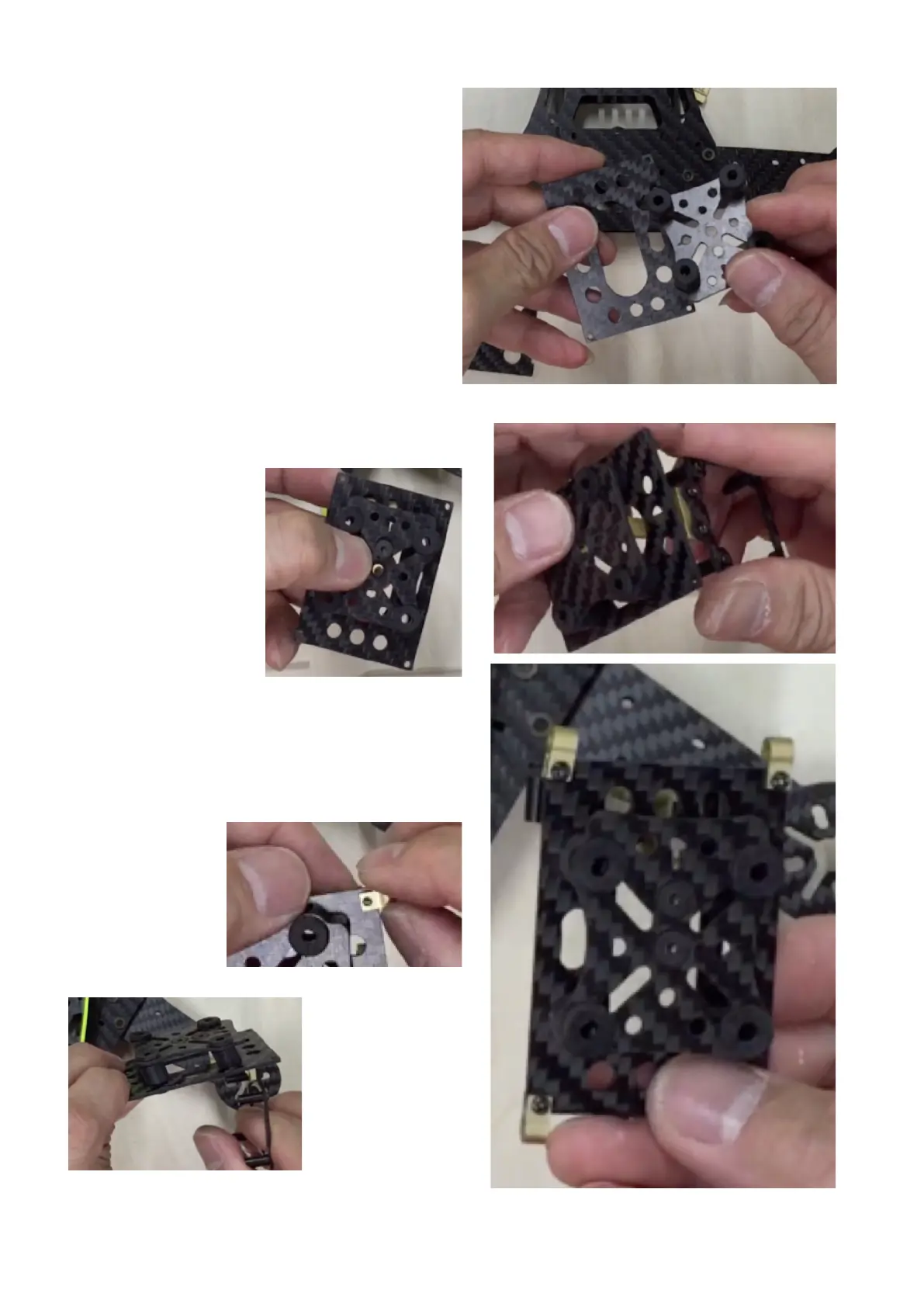

This section shows how to
assemble the camera
damping system. Insert the
damper in between the lens
upper and lower board.
Use M2 *4 Phillips’ head to fix
the camera mounted on the L
type arm.
Then attach the other side to
the damping plate(lens upper
board) with the aid of M3 *6 flat
head screws.
Put on the
fixing plate bracket. Please,
take note of the direction of the
thread side.
With above
instruction
in place, you
are done
with the
dampener.
