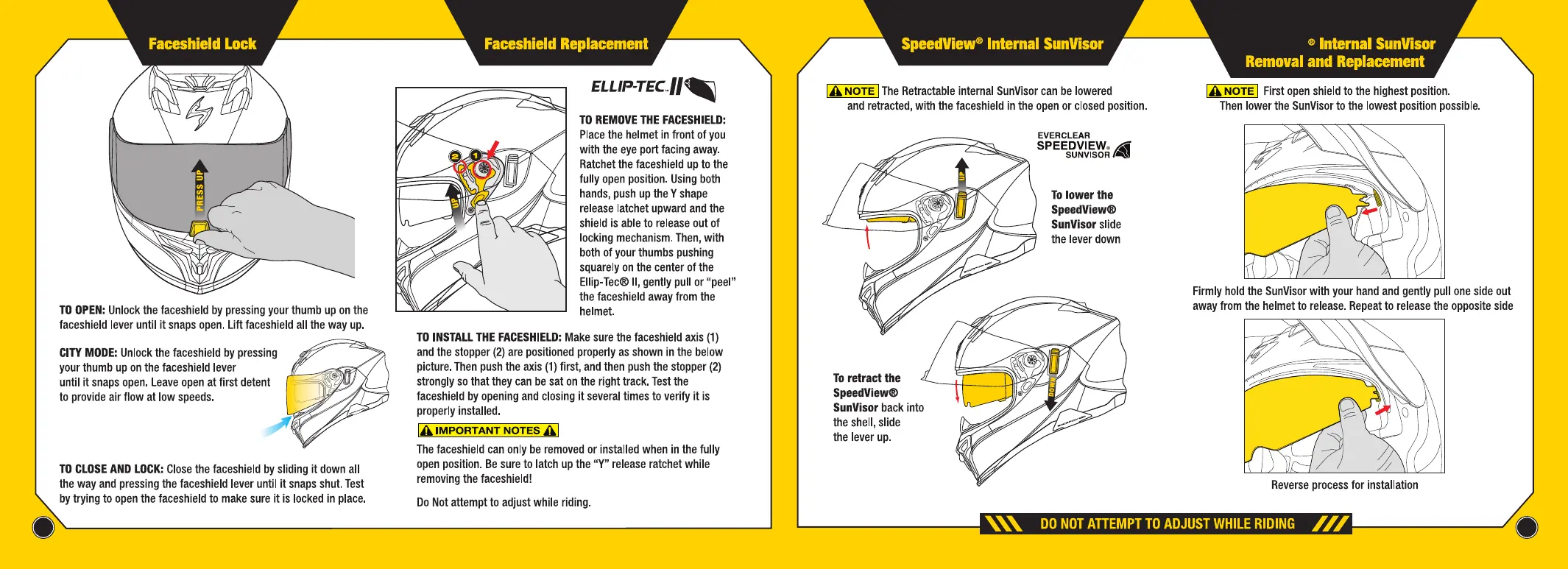

TO OPEN: Unlock the faceshield by pressing your thumb up on the
faceshield lever until it snaps open. Lift faceshield all the way up.
CITY MODE: Unlock the faceshield by pressing
your thumb up on the faceshield lever
until it snaps open. Leave open at first detent
to provide air flow at low speeds.
TO CLOSE AND LOCK: Close the faceshield by sliding it down all
the way and pressing the faceshield lever until it snaps shut. Test
by trying to open the faceshield to make sure it is locked in place.
ELLIP-TEC.1/~
TO REMOVE THE FACESHIELD:
Place the helmet in front of you
with the eye port facing away.
Ratchet the faceshield up to the
fully open position. Using both
hands, push up the Y shape
release latchet upward and the
shield is able to release out of
locking mechanism. Then, with
both of your thumbs pushing
squarely on the center of the
Ellip-Tec® II, gently pull or "peel"
the faceshield away from the
helmet.
TO INSTALL THE FACESHIELD: Make sure the faceshield axis (1)
and the stopper (2) are positioned properly as shown in the below
picture. Then push the axis (1) first, and then push the stopper (2)
strongly so that they can be sat on the right track. Test the
faceshield by opening and closing it several times to verify it is
properly installed.
IA IMPORTANT NOTES Al
The faceshield can only be removed or installed when in the fully
open position. Be sure to latch up the "Y" release ratchet while
removing the faceshield!
Do Not attempt to adjust while riding.
•'------------------__,J
IA NOTE I The Retractable internal SunVisor can be lowered
and retracted, with the faceshield in the open or closed position.
To retract the
SpeedView®
SunVisor back into
the shell, slide
the lever up.
EVE RC LEAR
SPEEDVIEW.
~
SUNVISOR /4l
To lower the
SpeedView®
SunVisor slide
the lever down
IA NOTE I First open shield to the highest position.
Then lower the SunVisor to the lowest position possible.
Firmly hold the SunVisor with your hand and gently pull one side out
away from the helmet to release. Repeat to release the opposite side
Reverse process for installation
''' DO NOT ATTEMPT TO ADJUST WHILE RIDING / / /
•
US
SpeedView
US
3 4
To Next Page
