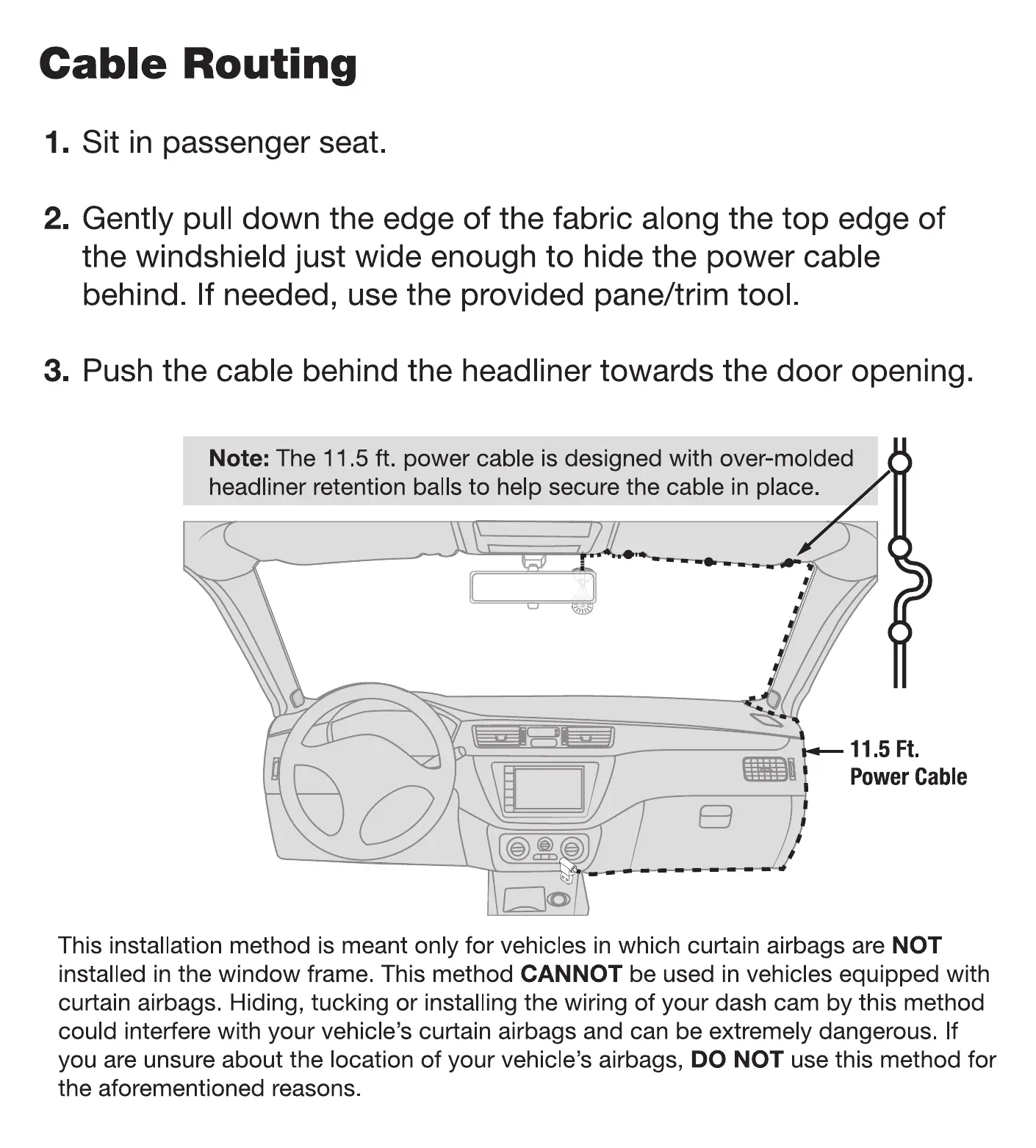

Cable Routing
I. Sit in passenger seat.
2. Gently pull down the edge of the fabric along the top edge of
the windshield just wide enough to hide the power cable
behind. If needed, use the provided pane/trim tool
3. Push the cable behind the headliner towards the door opening
Note: The 11.5 ft. power cable is designed with over-molded
headliner retention balls to help secure the cable in p ace
11.5 Ft.
Power Cable
This installation method is meant only for vehicles in which curtain airbags are NOT
instal ed in the window frame. This method CANNOT be used in vehicles equipped with
curtain airbags. Hiding, tucking or installing the wiring of your dash cam by this method
could interfere with your vehicle's curtain airbags and can be extremely dangerous. If
you are unsure about the location of your vehicle's airbags, DO NOT use this method for
the aforementioned reasons.
4.
5.
6.
Open passenger door and conceal the cable behind or between
the trim and the door opening
*IMPORTANT*: Use caution to ensure the cable won't be
pinched, crushed or placed near any sharp surfaces.
Route the cable down to the passenger footwell
Conceal the remaining cable under the carpet toward the location
of the USB power socket.
Easy Install: For vehicles with curtain airbags.
Use the provided adhesive cable guides to route
cable along the edge of windshield.
Scan the QR code to watch a video on
how to hide the cable.
https://youtu be/rvl aqOoEOrlJ
To Next Page
