SCOTT R-316 User Manual

Lh
AM LW

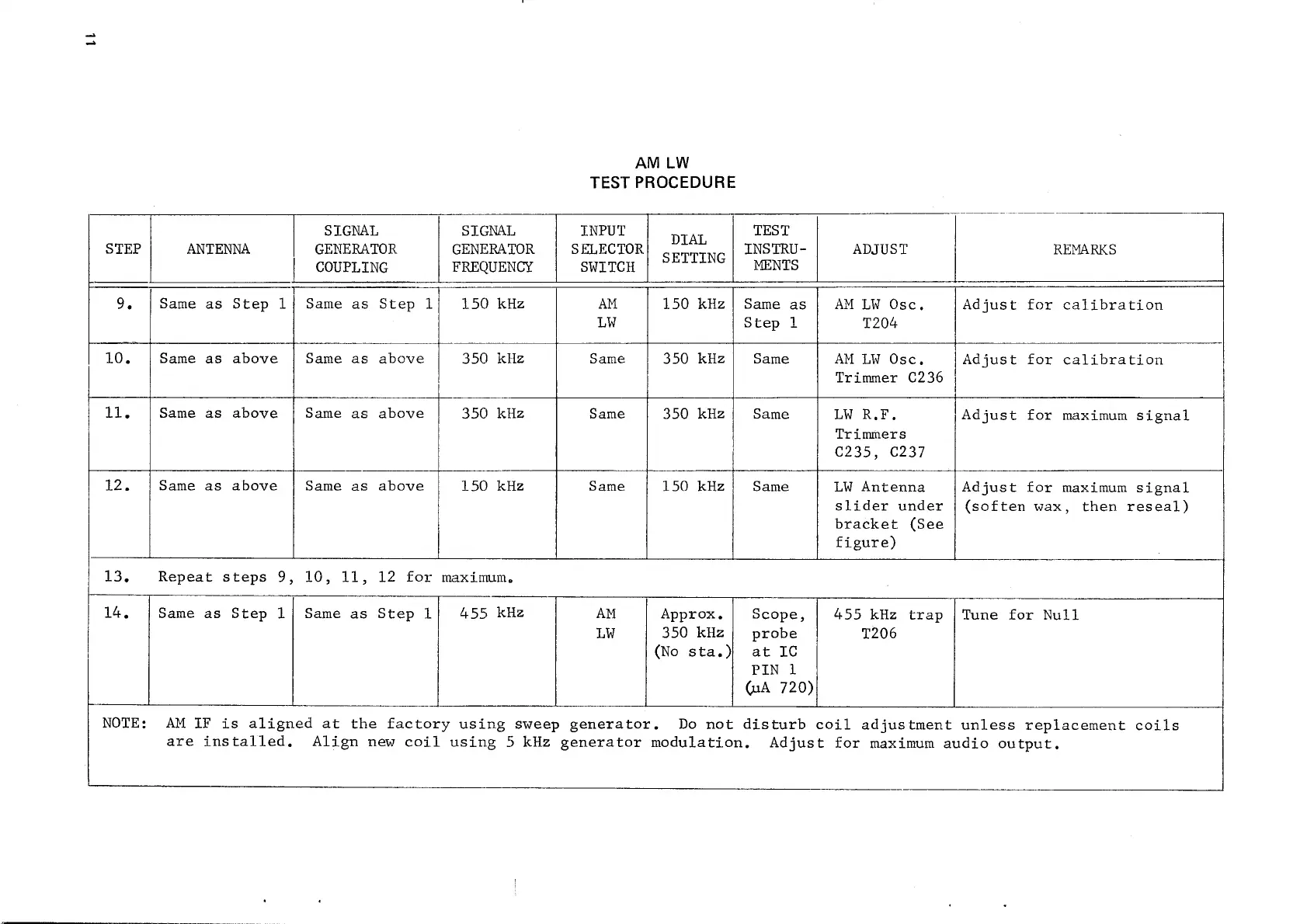

TEST PROCEDURE
SIGNAL SIGNAL INPUT DIAL TEST
STEP ANTENNA GENERATOR GENERATOR SELECTOR SETTING INSTRU - ADJUST REMARKS
COUPLING FREQUENCY SWITCH MENTS
9. | Same as Step 1; Same as Step 1 150 kHz AM 150 kHz! Same as AM LW Osc. Adjust for calibration
LW Step 1 T204
10, Same as above | Same as above 350 kHz Same 350 kHz Same AM LW Osc. Adjust for calibration
Trimmer C236
li. Same as above | Same as above 350 kHz Same 350 kHz | Same LW RLF. Adjust for maximum signal
Trimmers
C235, C237
12. Same as above Same as above 150 kHz Same 150 kHz Same LW Antenna Adjust for maximum signal
slider under | (soften wax, then reseal)
bracket (See
figure)
13. Repeat steps 9, 10, 11, 12 for maximum.
14, Same as Step 1] Same as Step 1 455 kHz AM Approx. Scope, 455 kHz trap | Tune for Null
LW 350 kHz{ probe T206
(No sta.)}} at IC
PIN 1
(aA 720)
NOTE: AM IF is aligned at the factory using sweep generator. Do not disturb coil adjustment unless replacement coils
are installed, Align new coil using 5 kHz generator modulation, Adjust for maximum audio output.
