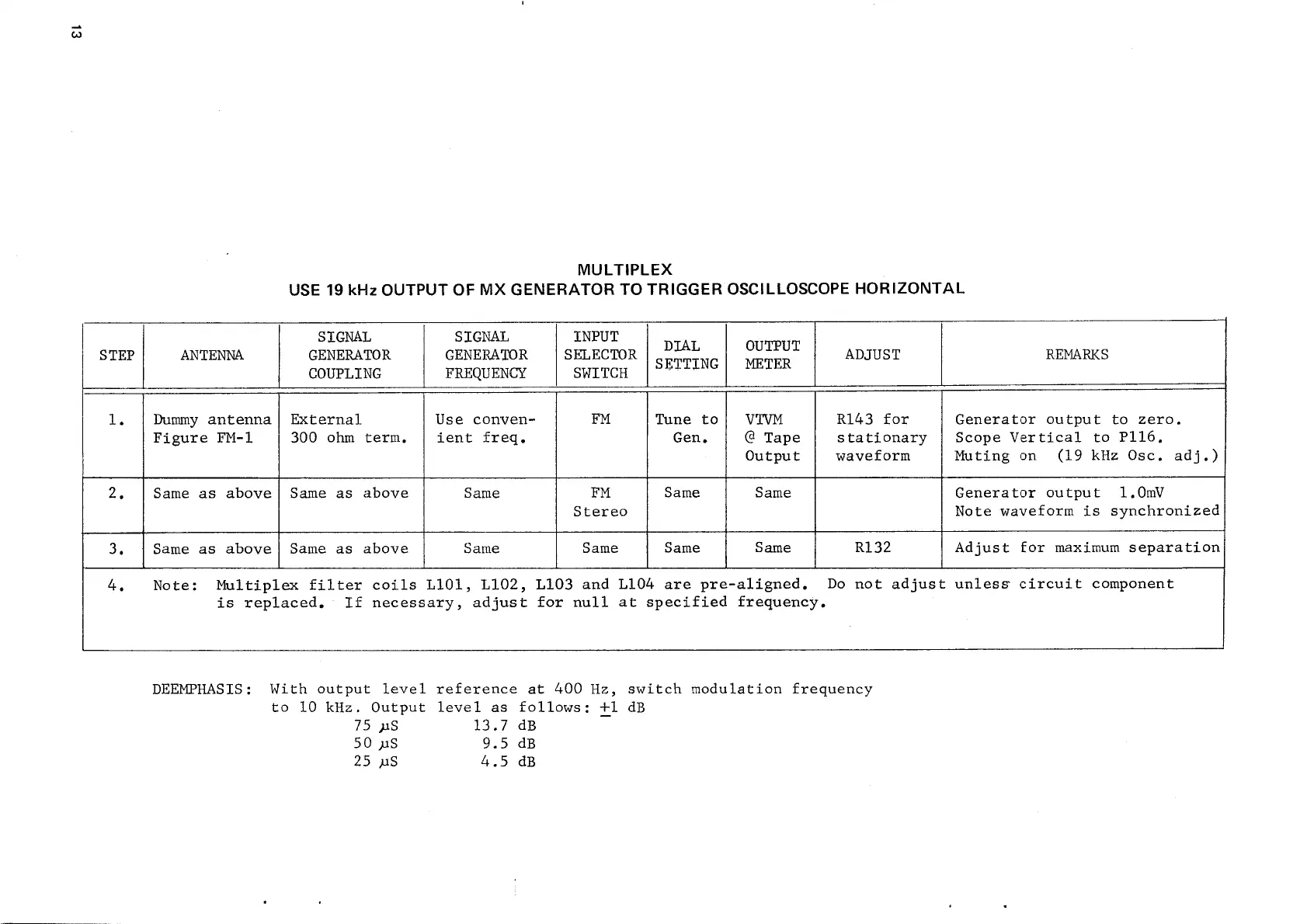

MULTIPLEX
USE 19 kHz OUTPUT OF MX GENERATOR TO TRIGGER OSCILLOSCOPE HORIZONTAL
SIGNAL SIGNAL INPUT
STEP ANTENNA GENERATOR GENERATOR | SELECTOR SREIN C METER ADJUST REMARKS
COUPLING FREQUENCY switch | 52!
1. Dummy antenna | External Use conven- FM Tune to} VIVM R143 for Generator output to zero.
Figure FM-1 300 ohm term. ient freq. Gen. @ Tape stationary Scope Vertical to P116.
Output waveform Muting on (19 kHz Osc. adj.)
2. Same as above| Same as above Same FM Same Same Generator output 1.0mV
Stereo Note waveform is synchronized
3. Same as above| Same as above Same Same Same Same R132 Adjust for maximum separation
4. Note: Multiplex filter coils L101, L102, L103 and L104 are pre-aligned. Do not adjust unless circuit component
is replaced, If necessary, adjust for null at specified frequency.
DEEMPHASIS: With output level reference at 400 Hz, switch modulation frequency
to 10 kHz. Output level as follows: +1 dB
75 ys 13.7 dB
50 us 9.5 dB
25 wS 4.5 dB
