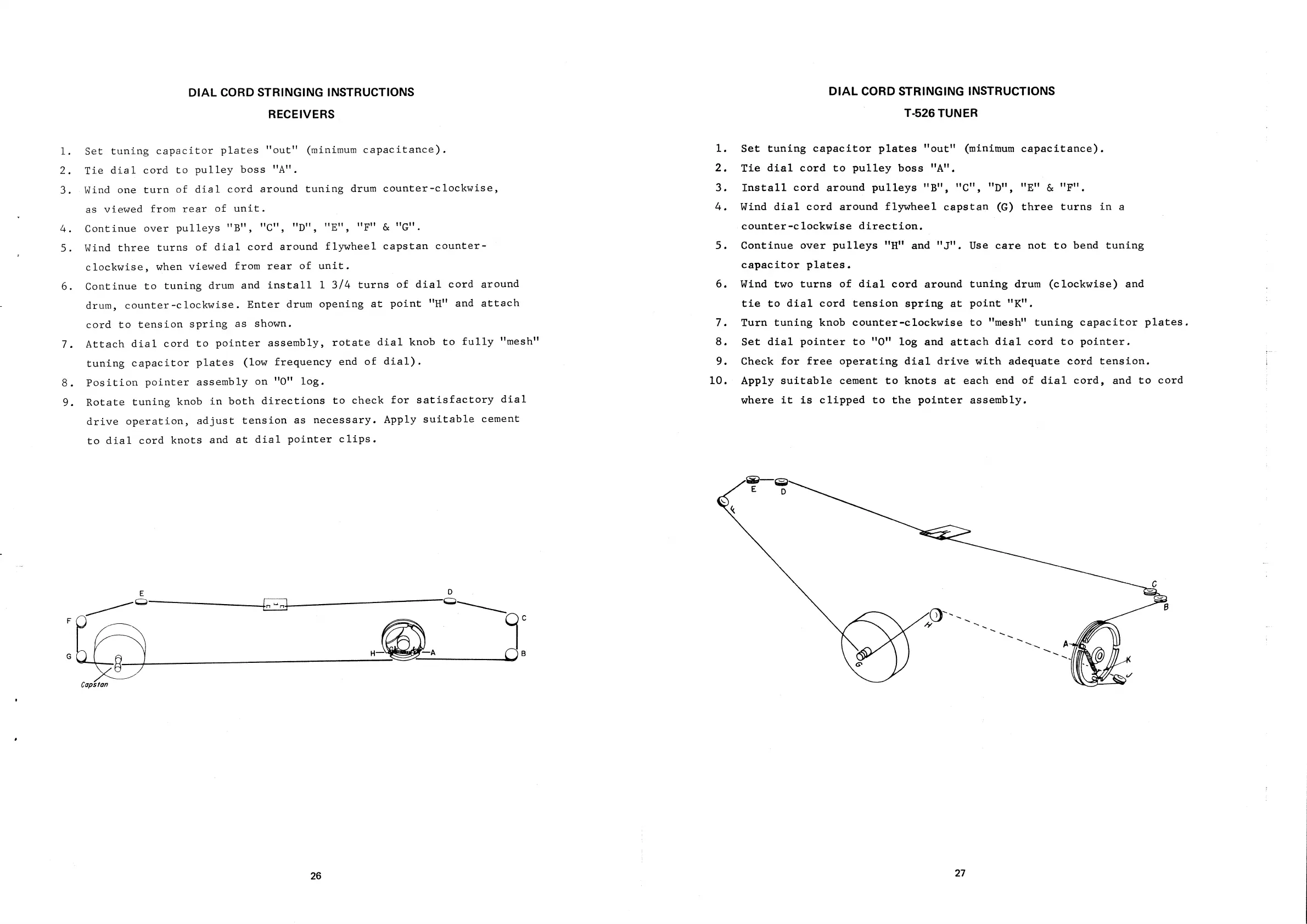

SCOTT R-316 User Manual

—
DIAL
CORD
STRINGING
INSTRUCTIONS
RECEIVERS
Set
tuning
capacitor
plates
"out"
(minimum
capacitance).
Tie
dial
cord
to
pulley
boss
"A".
Wind
one
turn
of
dial
cord
around
tuning
drum
counter-clockwise,
as
viewed
from
rear
of
unit.
Continue
over
pulleys
"B",
"C",
"D",
"E",
"F'
&
"G".
Wind
three
turns
of
dial
cord
around
flywheel
capstan
counter-
clockwise,
when
viewed
from
rear
of
unit.
Continue
to
tuning
drum
and
install
1
3/4
turns
of
dial
cord
around
drum,
counter-clockwise.
Enter
drum
opening
at
point
"H''
and
attach
cord
to
tension
spring
as
shown.
Attach
dial
cord
to
pointer
assembly,
rotate
dial
knob
to
fully
"mesh"
tuning
capacitor
plates
(low
frequency
end
of
dial).
Position
pointer
assembly
on
"0"
log.
Rotate
tuning
knob
in
both
directions
to
check
for
satisfactory
dial
drive
operation,
adjust
tension
as
necessary.
Apply
suitable
cement
to
dial
cord
knots
and
at
dial
pointer
clips.
“(J
Q
H—
—A
()B
xe
_/
Capstan
26
DIAL
CORD
STRINGING
INSTRUCTIONS
T-526
TUNER
Set
tuning
capacitor
plates
"out"
(minimum
capacitance).
Tie
dial
cord
to
pulley
boss
"A",
Install
cord
around
pulleys
"B",
"Cc",
"D',
"E"
&
"EF",
Wind
dial
cord
around
flywheel
capstan
(G)
three
turns
in
a
counter-clockwise
direction.
Continue
over
pulleys
"H'"
and
"J",
Use
care
not
to
bend
tuning
capacitor
plates.
Wind
two
turns
of
dial
cord
around
tuning
drum
(clockwise)
and
tie
to
dial
cord
tension
spring
at
point
"K".
Turn
tuning
knob
counter-clockwise
to
"mesh"
tuning
capacitor
plates.
Set
dial
pointer
to
"0"
log
and
attach
dial
cord
to
pointer.
Check
for
free
operating
dial
drive
with
adequate
cord
tension.
Apply
suitable
cement
to
knots
at
each
end
of
dial
cord,
and
to
cord
where
it
is
clipped
to
the
pointer
assembly.
27
