AM
LW

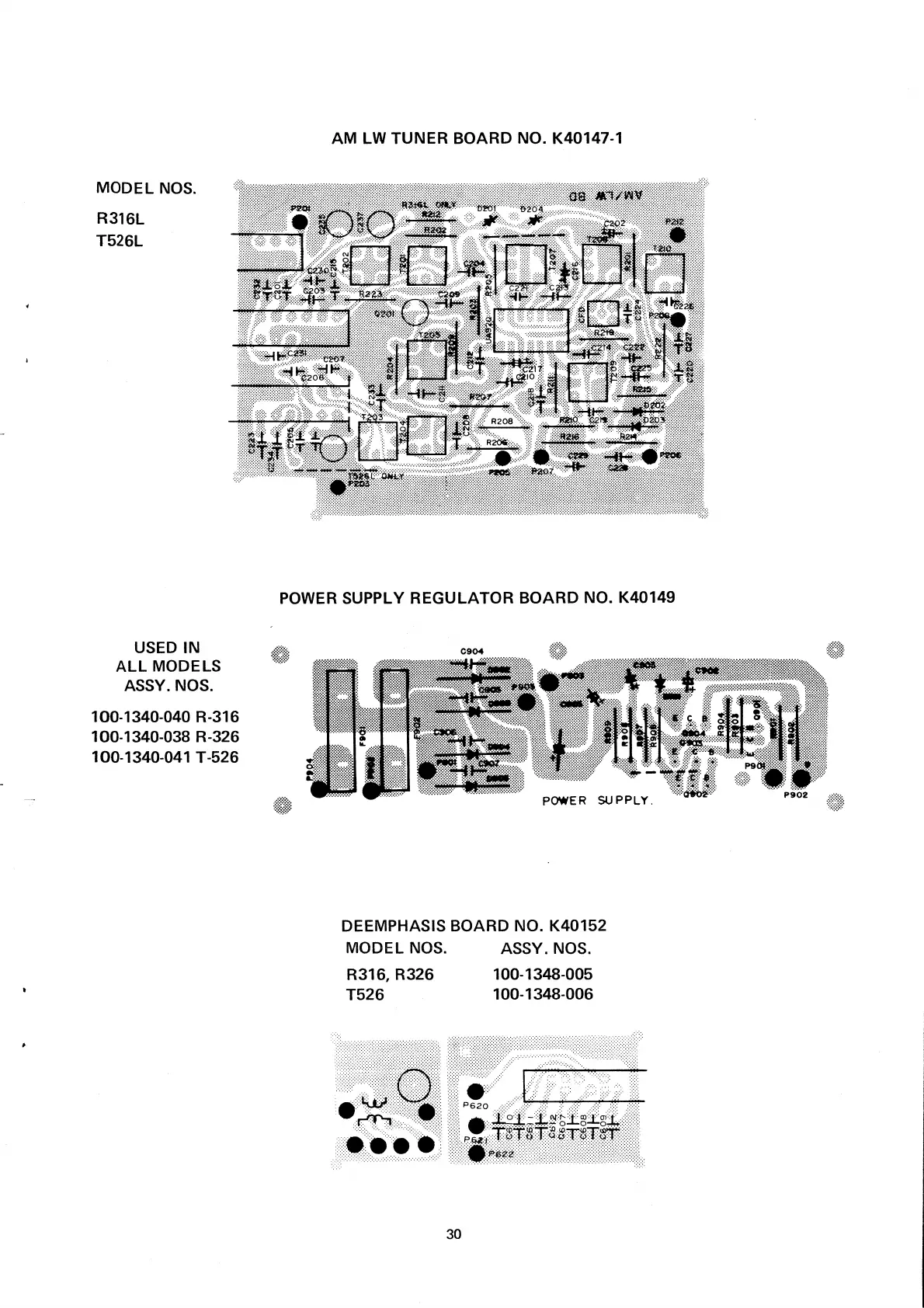

TUNER
BOARD
NO.
K40147-1
MODEL
NOS.
R316L
T526L
POWER
SUPPLY
REGULATOR
BOARD
NO.
K40149
USED
IN
ALL
MODELS
ASSY. NOS.
100-1340-040
R-316
100-1340-038
R-326
100-1340-041
T-526
POWER
SUPPLY.
DEEMPHASIS
BOARD
NO.
K40152
MODEL
NOS.
ASSY.
NOS.
R316,
R326
100-1348-005
T526
100-1348-006
