ENGLISH / SPARK TECH MANUAL

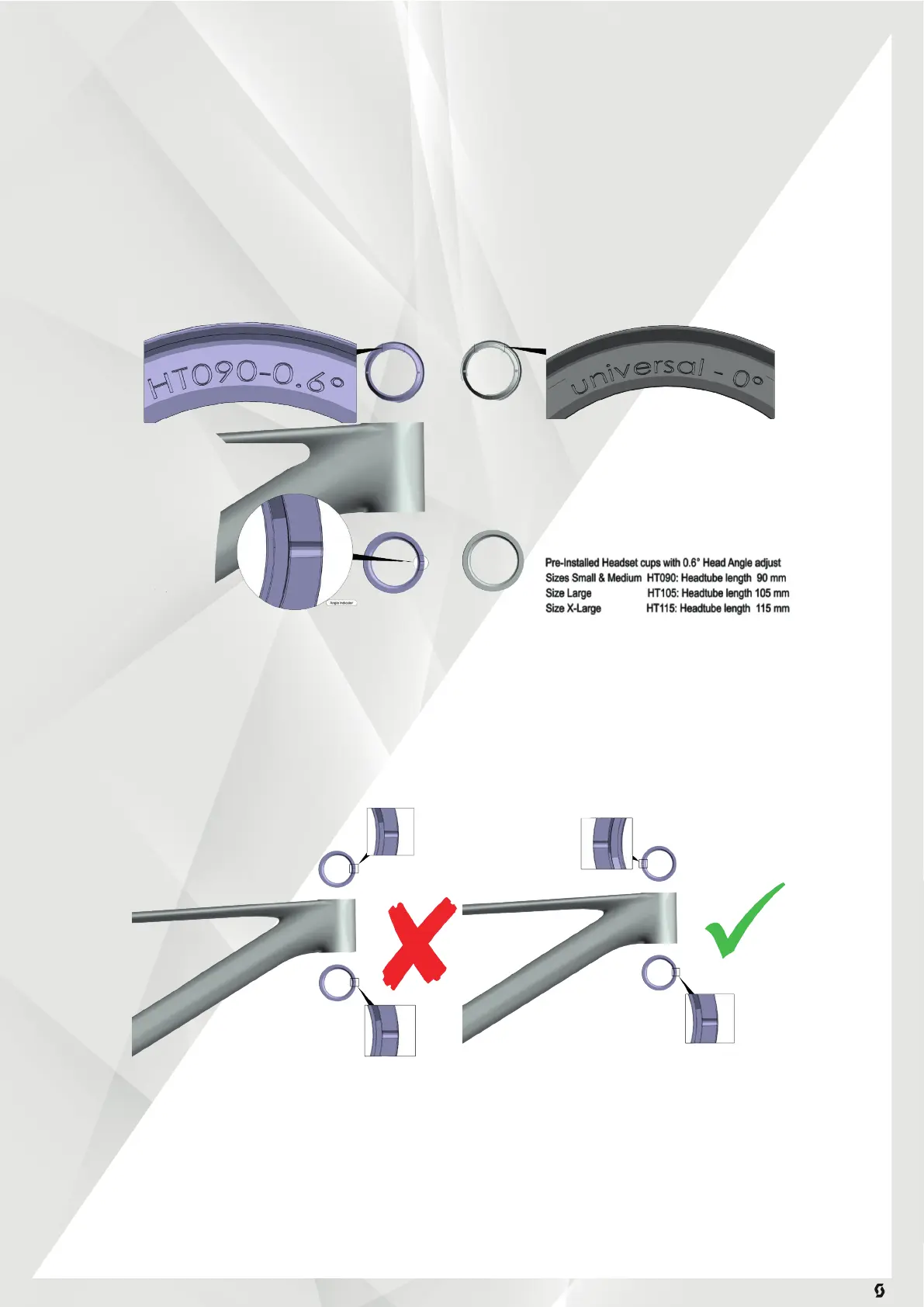

Headset indication and orientation, it is important to have the headset installed
correctly depending on the setup. There are two types, 0° and 0.6°, these can be
identified from the stamp on the inner surface of the headset cup.
For 0.6° this can be installed at + or – but it is essential that the angle indication
markers on the headset are set opposite to each other, top facing forward and
bottom facing backwards (or vice versa).
