7. CPU Section
The CPU section is in fact the daughter card that fits directly on the KeyPad
controller PCB (see figure 23 for location).

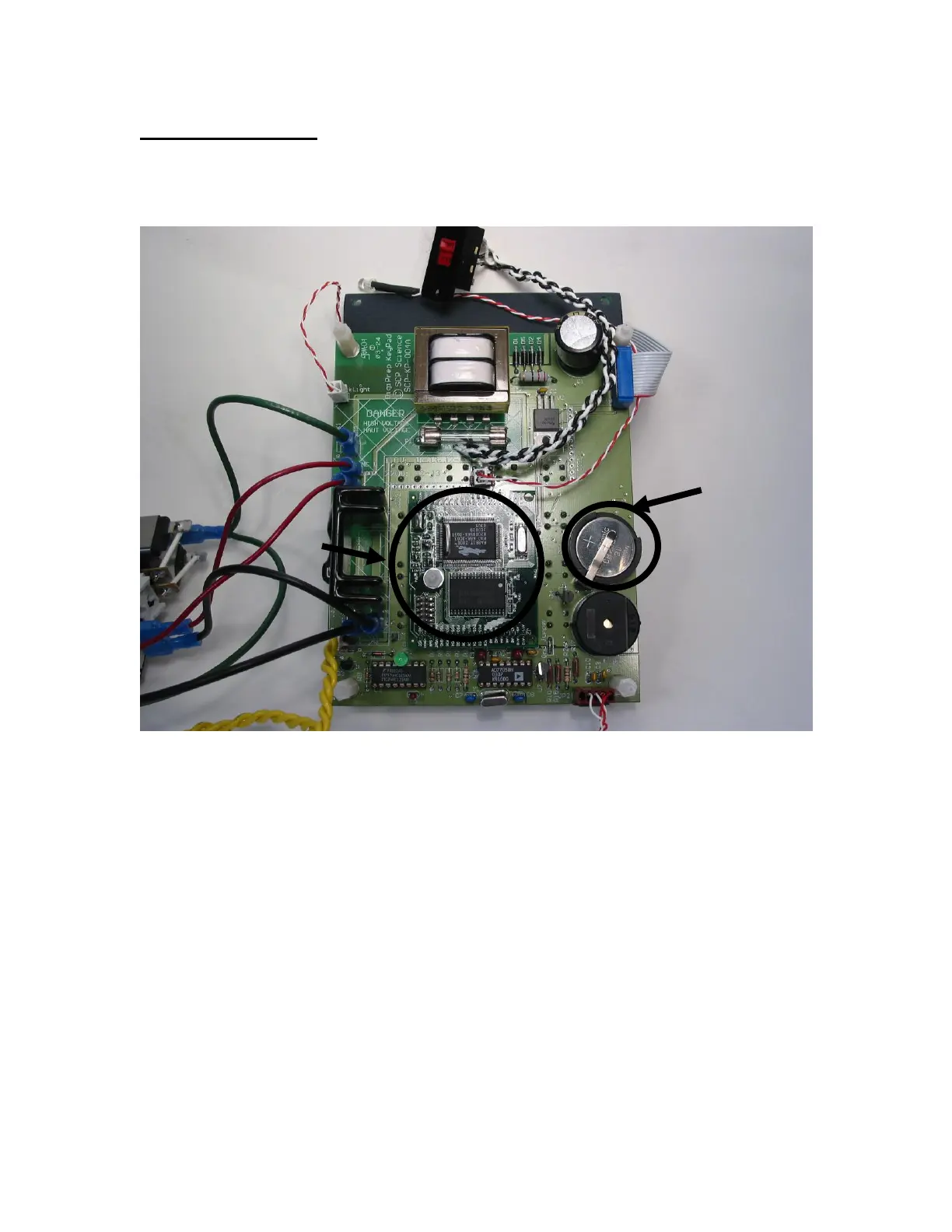

Figure 23: CPU daughter card location
Legend:
1. CPU daughter card
2. Battery backup
If any of the sections 1 to 4 has been verified and a CPU problem is suspected
then try the following sections.
7.1 CPU board insertion
If a long and clear sound is heard when powering up the KeyPad System
 Make sure that the power switch is OFF before doing the following
item.
 Fully insert the CPU daughter card on the mother board
 See section 1.4 for more detail on CPU diagnostic.
