• DO NOT wire/t a plug to this appliance. The appliance must be
electrical connected to a fused xed supply, which is tted with a
13Amp fuse.
• All ttings must be installed by a competent person in accordance
with the current IET Wiring Regulations (BS7671). If in doubt,
consult a qualied electrician.
• This product is suitable for use in living areas, and Bathroom (dry)
Outside Volume only (see diagram below and current IET Wiring
Regulations for details). It is not suitable for Bathroom Volumes 0,
1 and 2. If being tted in a bathroom a 30mA RCD must be used.
This appliance does not come tted/supplied with a fused plug.

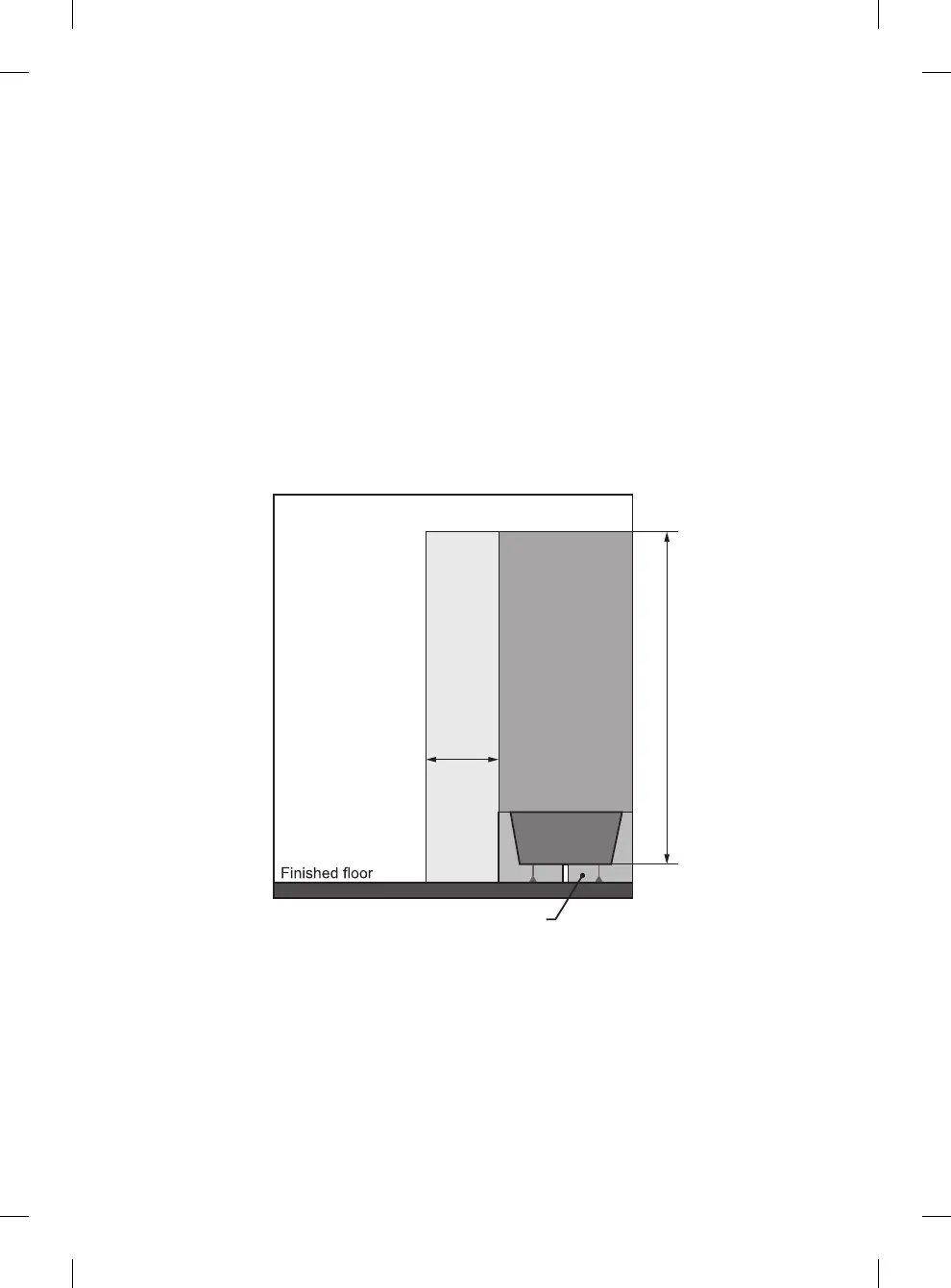

• Always refer to the Reference Drawing for Bathroom Installation.
Note: The below drawing is for reference only.
0,60 m
Volume 2 Volume 1
2,25 m
Volume 0
Outside volume
Ground
Hidden volume
• Full details can be found in the current IET Wiring Regulations
(BS7671).
