The King Gubby Designs Sculpfun S9 Z Axis Adjuster is an accessory designed to enhance the functionality of the Sculpfun S9 laser engraver by providing Z-axis adjustment capabilities. This manual outlines the installation process and important considerations for its use.

Function Description:

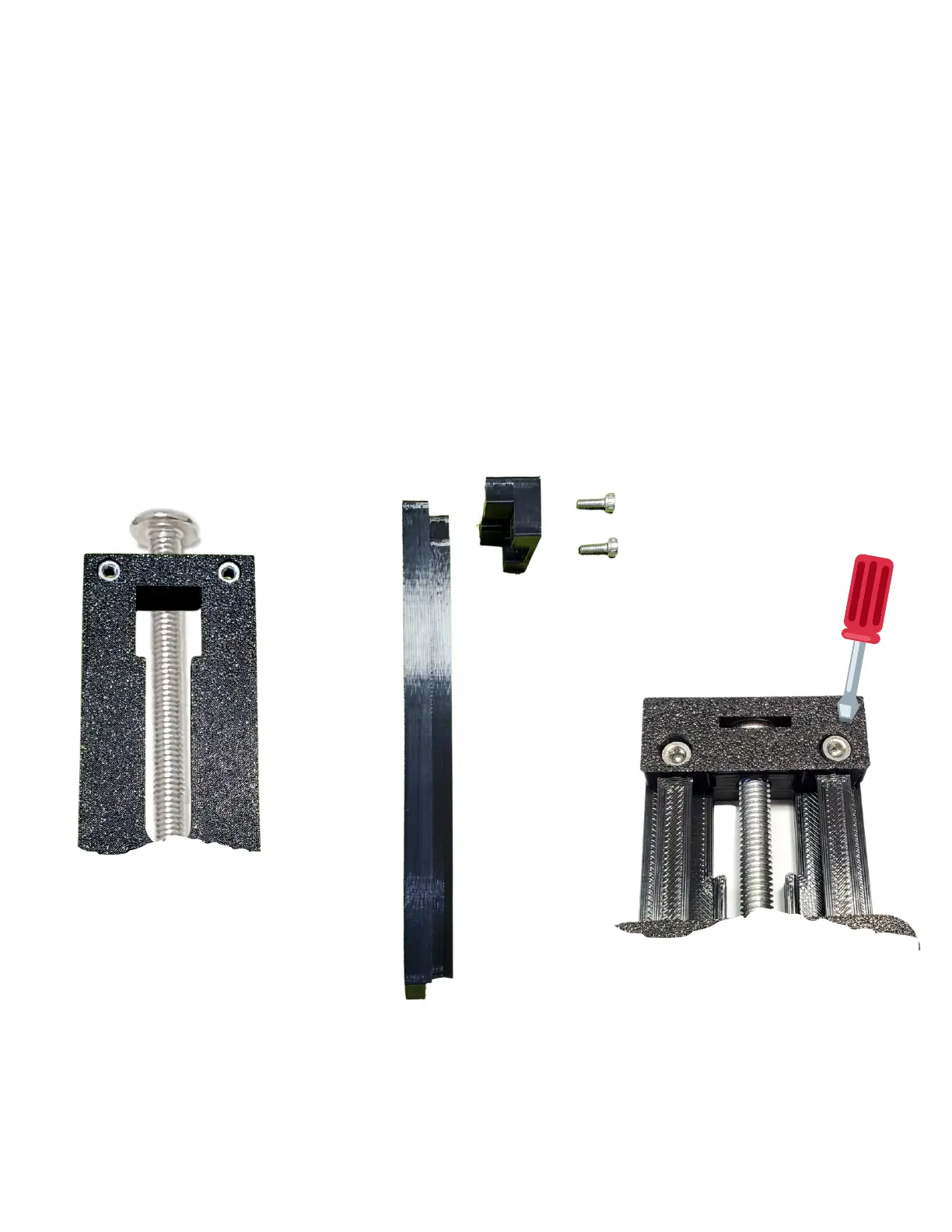

The Z Axis Adjuster allows users to precisely control the vertical position (Z-axis) of the Sculpfun S9 laser module. This adjustment is crucial for achieving optimal focus on materials of varying thicknesses, which is essential for high-quality engraving and cutting results. By enabling easy height modification, the adjuster eliminates the need for manual shimming or repositioning of the material, streamlining the workflow and improving accuracy. The design incorporates a module plate that attaches to the laser module, a carriage plate that mounts to the existing laser carriage, and a mechanism involving an M6 bolt and barrel nut for vertical movement. A bolt clip is included to secure the adjustment bolt, preventing accidental unscrewing during operation.

Important Technical Specifications (Derived from the manual and product images):

Compatibility: Specifically designed for the Sculpfun S9 laser engraver. It is explicitly stated that it will not work with the Sculpfun S10.
Laser Module Compatibility: Designed for the Sculpfun S9 laser module with specifications:
- Wavelength: 450±5nm
- Focus Type: Fixed-focus
- Max Input of Laser Module: 12V 3A
- Maximum Laser Power: 5.5W
- Compliance: IEC 60825-1:2014
Materials: The adjuster components appear to be made from a durable, possibly 3D-printed, material (e.g., ABS or PETG) given the visible layer lines in the images.
Fasteners: The kit includes various M3 and M4 screws, M3 and M4 hex nuts, M4 countersunk screws, an M6 bolt (75mm), and a barrel nut.
Tools: A 4mm T-handle wrench is provided for installation.
Adjustment Mechanism: Utilizes a threaded M6 bolt and barrel nut for smooth vertical adjustment.

Usage Features:

Precise Z-Axis Control: The primary feature is the ability to finely adjust the laser module's height, which is critical for maintaining optimal focus across different material thicknesses. This enhances engraving precision and cutting efficiency.
Easy Installation: The manual provides a step-by-step guide for installation, starting with prepping the module adapter, attaching it to the laser module, then mounting the Z-axis module plate, prepping and attaching the carriage plate, and finally assembling the Z-axis mechanism.
Secure Locking Mechanism: A bolt clip is included to lock the M6 adjustment bolt in place once the desired height is set, preventing unintended changes during operation due to vibrations or movement.
Customizable Module Position: The module plate offers multiple hole positions, allowing users to choose their desired initial height or range of adjustment for the laser module.
Ergonomic T-Handle Wrench: The included 4mm T-handle wrench is designed to rest on the laser's aluminum extrusion, keeping it conveniently accessible and preventing it from being misplaced.
Optional Knob Upgrades: The manual mentions the availability of optional knob upgrades for the Z-axis adjuster, which would likely provide a more ergonomic and tool-free adjustment experience.

Maintenance Features:

Lubrication Recommendation: The manual advises oiling the dovetail channels on both sides of the module plate. Dry lubricant is preferred, but any lubricant is acceptable. This helps ensure smooth and consistent vertical movement of the laser module.
Home Stop Adjustment: A critical maintenance step highlighted is the need to check and potentially adjust the laser's home stop after installing the Z-axis adjuster. This is crucial to prevent damage to the laser module by ensuring the home stop switch is engaged before the module makes contact with the front rail. Users are instructed to manually home the laser, observe the gap, and adjust the home stop contact switch if necessary, referring to their laser's manual for specific locations.
Belt Retightening: After adjusting the home stop, users are reminded to retighten their laser's belt(s), which is a standard maintenance practice to ensure optimal performance and prevent skipping.
Clear Installation Instructions: The detailed, step-by-step instructions with accompanying images aid in correct installation, minimizing errors that could lead to maintenance issues.

In summary, the King Gubby Designs Sculpfun S9 Z Axis Adjuster is a purpose-built enhancement for the Sculpfun S9 laser engraver, offering precise Z-axis control, straightforward installation, and important maintenance considerations to ensure safe and effective operation.
