Operation & Maintenance Manual──LG946L Wheel Loader
41
Lingong Construction Machinery Co. Ltd. or their accredited representative.

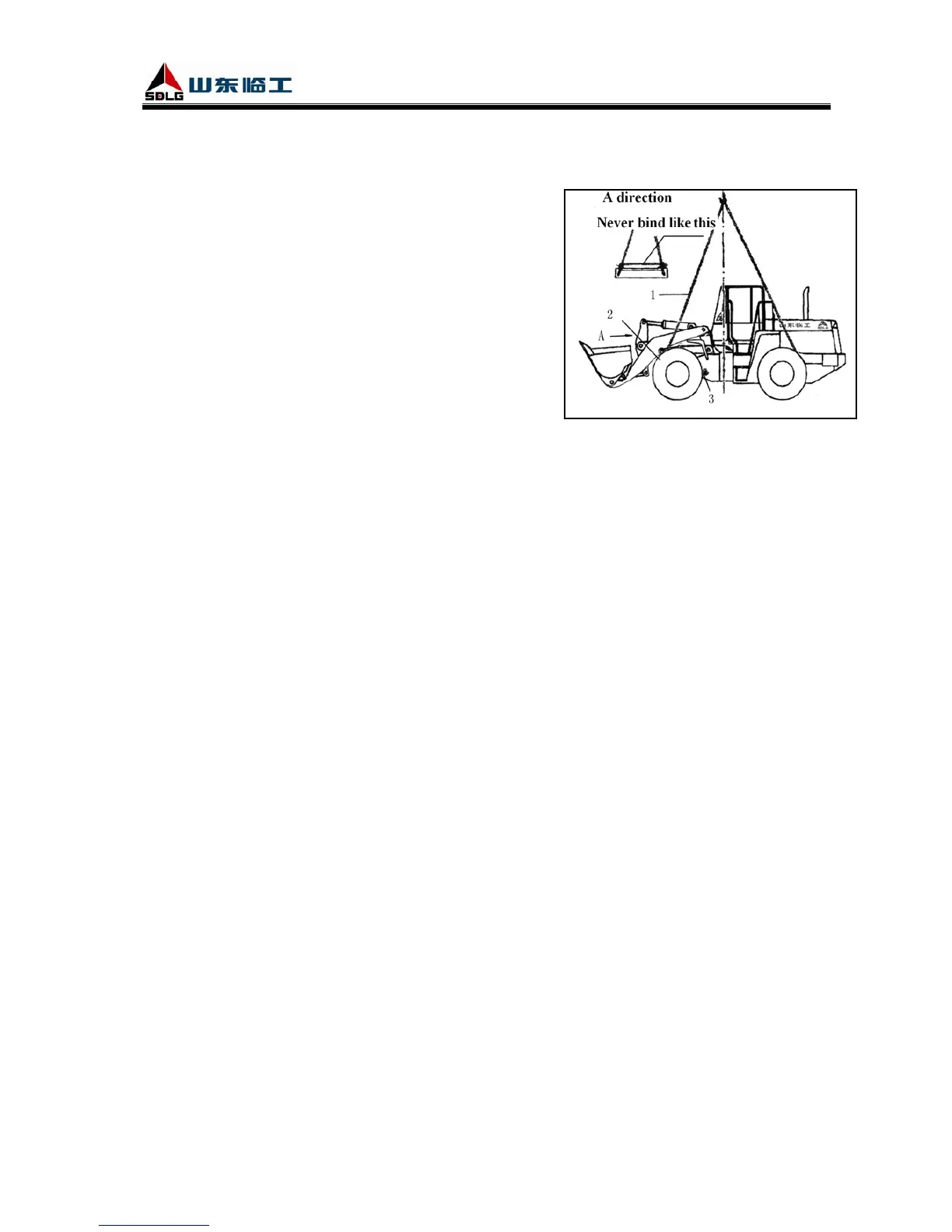

9.3 Lifting
Use the hook of the front and rear frame to transport the
machine to ship or train.
Select proper lifting equipment according to the weight
of the loader, otherwise it is dangerous to surpass the
weight limit.
z Notices for lifting:
Make sure the loader is in the transporting state.
The front and rear frame should be in the middle
position. Lock the machine using the lock bar to prevent rotation of the front and rear
frame during lifting.
All the control levers (or handles) should be in the middle position.
Stop the engine, lock all the equipment using keys and then remove.
No one is allowed to stay in the operator cab.
Never lift the machine using steel wire connecting the two hooks on the front frame.
It is allowed to lift the machine using 4 steel wires of the same length (no shorter than
7m).
Keep the machine horizontal during lifting.
Prevent damage to hood, operator cab, and hydraulic pipes.
No person or car is allowed to pass under the machine during lifting.
Draw back the lock bar to turn the machine after lifting.
z Connect the turning equipment using the lock bar after lifting onto the ship (train), wedge
the tire and bind the machine tightly to prevent movement during transportation.
