Operation & Maintenance Manual──LG958L/LG959 Wheel Loader
114
3 BRAKE SYSTEM
Brake system is used when the machine decelerates, stops or for long-term parking on the level
ground or slight incline. The brake system of this machine is composed of a driving brake system and
parking brake system.

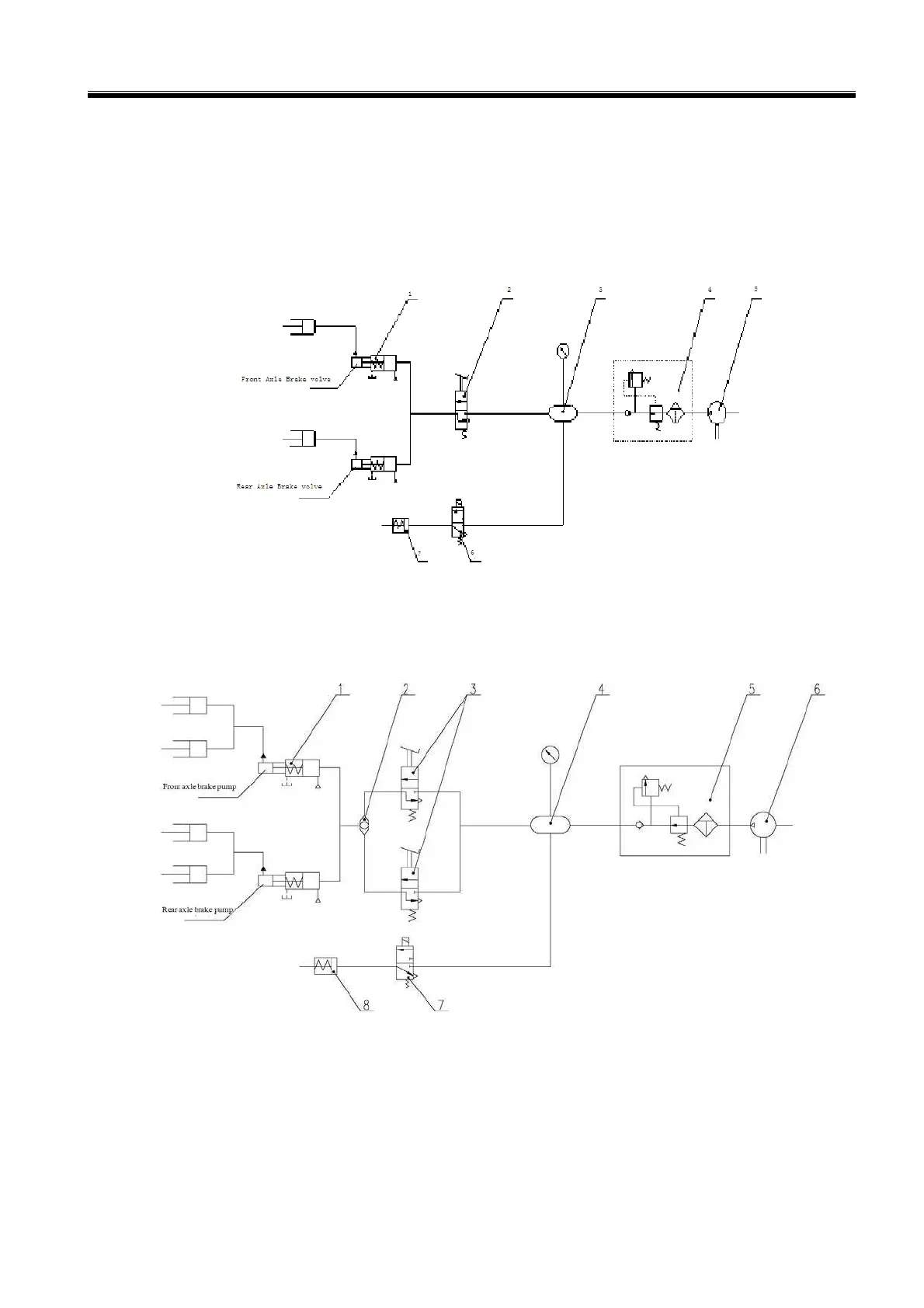

1. Air Booster Pump 2. Air Brake Valve 3. Air Tank
4. Combination Valve of Oil Water Separator 5. Air Compressor 6. Brake Magnetic Valve
7. Parking Brake Air Chamber
Figure 5-3 Single Brake Pedal Braking Diagram
1. Air Booster Pump 2. Shuttle Valve 3. Air Brake Valve 4. Air Tank
5. Combination Valve of Oil Water Separator 6. Air Compressor 7. Brake Magnetic Valve
8. Parking Brake Air Chamber
Figure 5-4 Double Brake Pedals Braking Diagram
