Section 08 PROPULSION SYSTEM
Sub-Section 03 (DRIVE SYSTEM)
08-03-11

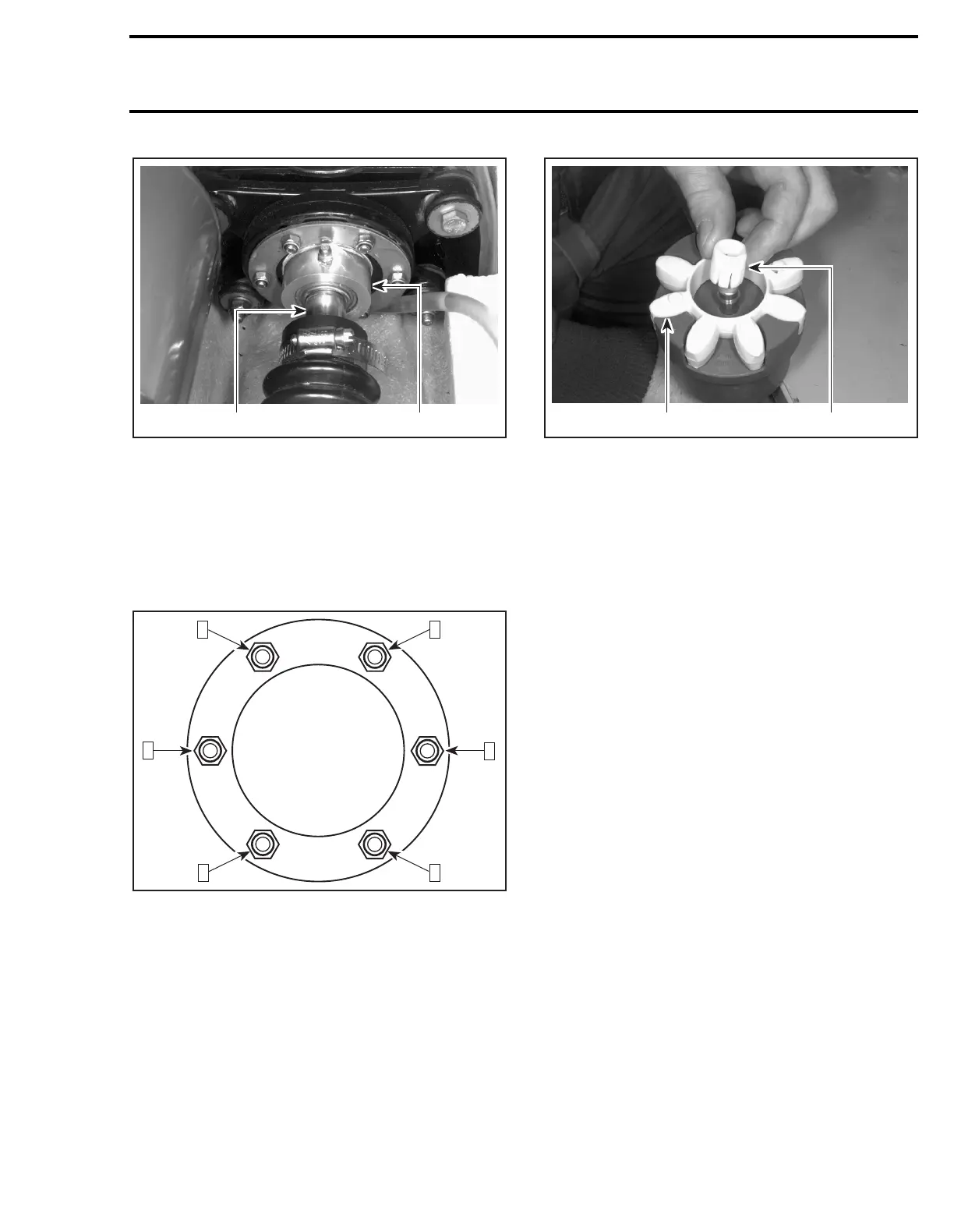

1. Alignment tool
2. Seal carrier
Torque seal carrier nuts
no. 19
to 7 N•m (62 lbf•
in
)
in a criss-cross sequence as per following illustra-
tion.
NOTE:
It is very important to tighten nuts of seal
carrier in a criss-cross sequence to maintain its
alignment.
16,17, Damper and Bushing
Make sure to install dampers
no. 16
and bushings
no. 17
on front drive shaft
no. 8
.
ENGINE SIDE SHOWN
1. Damper
2. Bushing
7,20, Front Drive Shaft and Coupler
Install front drive shaft
no. 7
and coupler
no. 20
.
4,15, Rear Drive Shaft and Damper
Install damper
no. 15
on rear drive shaft.
All Models Except the XP and HX
15, Damper
Install damper
no. 15
on drive shaft
no. 3
.
NOTE:
Make sure dampers were not left in PTO
flywheel or impeller.
F05I08A
1 2
F05I0EA
6
4
25
3
1
F05I0FA
1
2
