26
The gauge is illuminated whenever the
navigation lights are used.

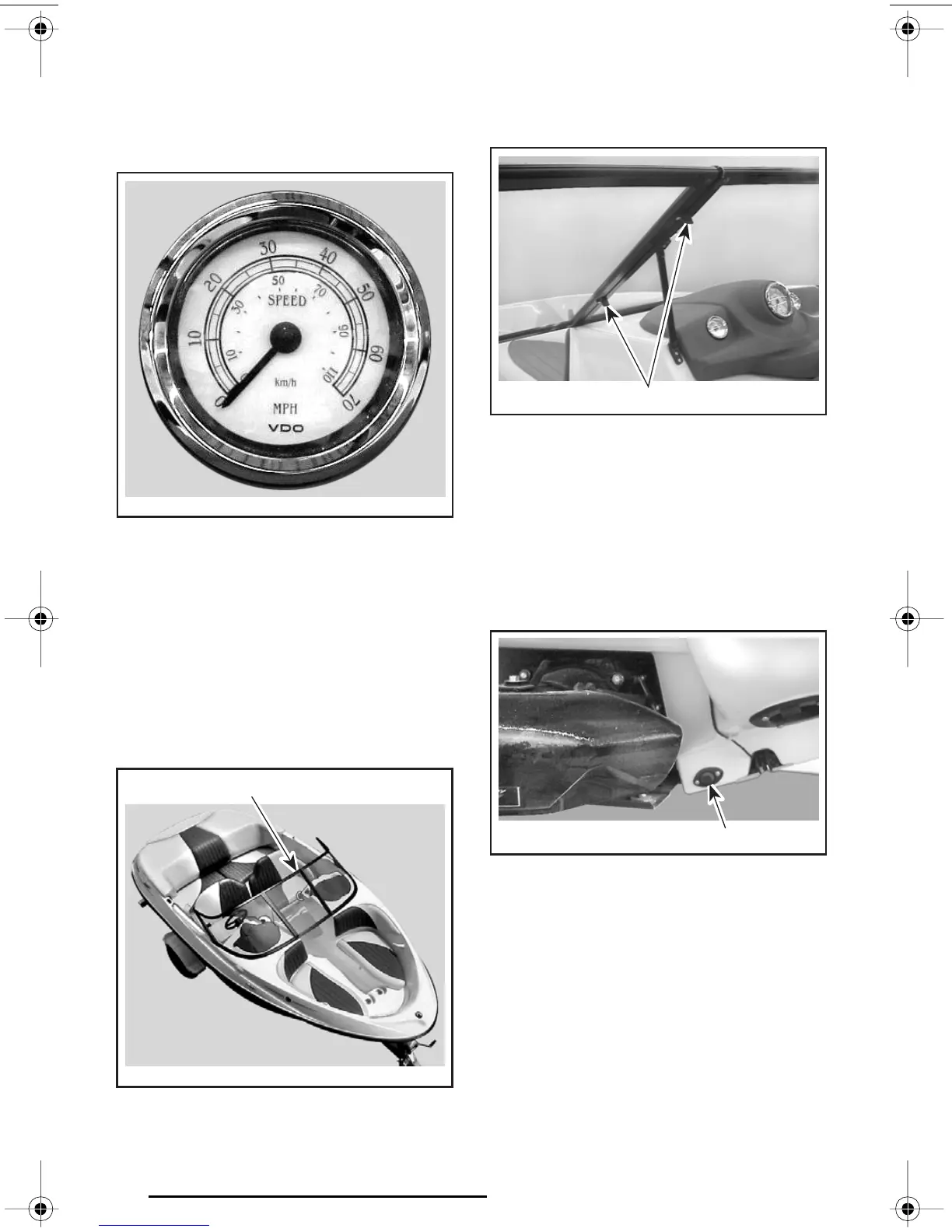

13) Speedometer
Analog speedometer indicates the
speed of the craft in miles per hour
(MPH) and kilometers per hour (km/h).
The gauge is illuminated whenever the
navigation lights are used.
A speed sensor mounted on the hull
near M
2
Jet Drive sends the signal to the
speedometer.
14) Windshield
1. Windshield
To open windshield door, unlock both
latches then open it, as shown in the
following photo.
1. Unlock both latches
15) Bilge Drain Plugs
Should water be found in the bilge, it
can be easily drained by unscrewing
the drain plugs.
Tilt the craft slightly to the rear so that
the water can completely flow out of
the bilge.
1. Bilge drain plug
16) Grab Handles
Provide a handhold for the passengers.
CAUTION: Never use the grab han-
dles to pull anything or to lift the craft.
Refer to components location illustra-
tions at the beginning of this section
for grab handles location.
F10H0IY
F10L2JY
1
1
F10L31Y
F10L2OY
1
lmo2001-004a.book Page 26 Friday, November 3, 2000 3:27 PM
