1. Stern eyelets
27) Bow Light
Mandatory red/green light. See Light
Switch as mentioned earlier in this
section.
28) Removable Stern Light
Mandatory stern white light.
It is recommended to keep it in rear
seat storage compartment at all times
except when needed.
To remove from storage compart-
ment, pull it out. Snap in place to store
again.
Installation
– Lift connector cap.
– Insert post in connector hole. En-
sure to align hole keyway with post
screw head.
– Firmly push downward to engage
terminals.
– Push lock ring downward. Turn until
locked. It may be necessary to
slightly turn it to allow its insertion
in the hole.
– Check light operation. See Naviga-
tion Light Switch as mentioned
earlier in this section.

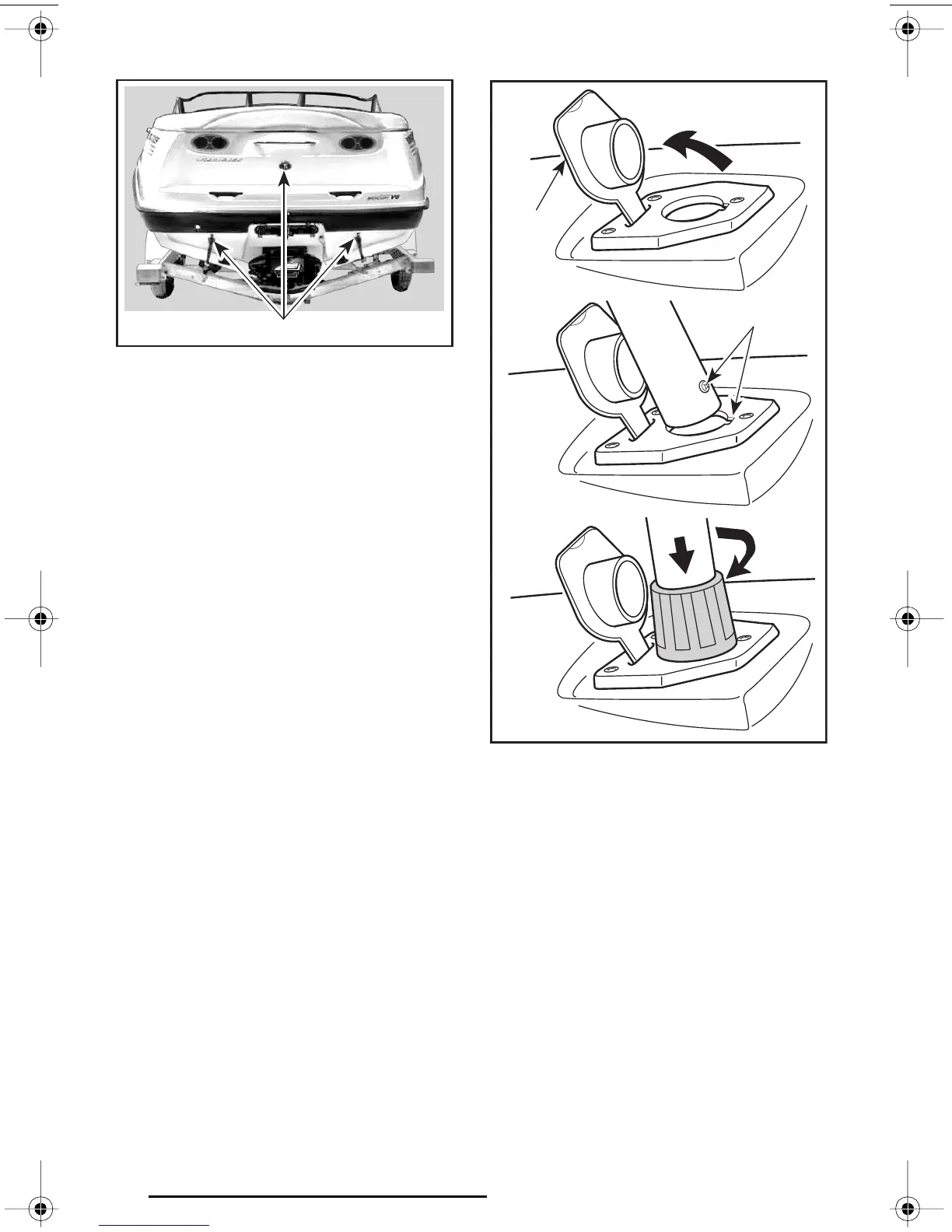

TYPICAL
1. Lift
2. Align screw in groove
3. Push downward
4. Turn to lock
CAUTION: Ensure dielectric grease
is present in connector area of light
to prevent corrosion.
29) Mooring Cleats
When mooring to a dock, it is recom-
mended to secure with both front and
rear cleats. The use of dock lines with
sealed air fenders is recommended to
protect your craft.
CAUTION: Never use mooring cleats
to pull or lift the craft.
