12

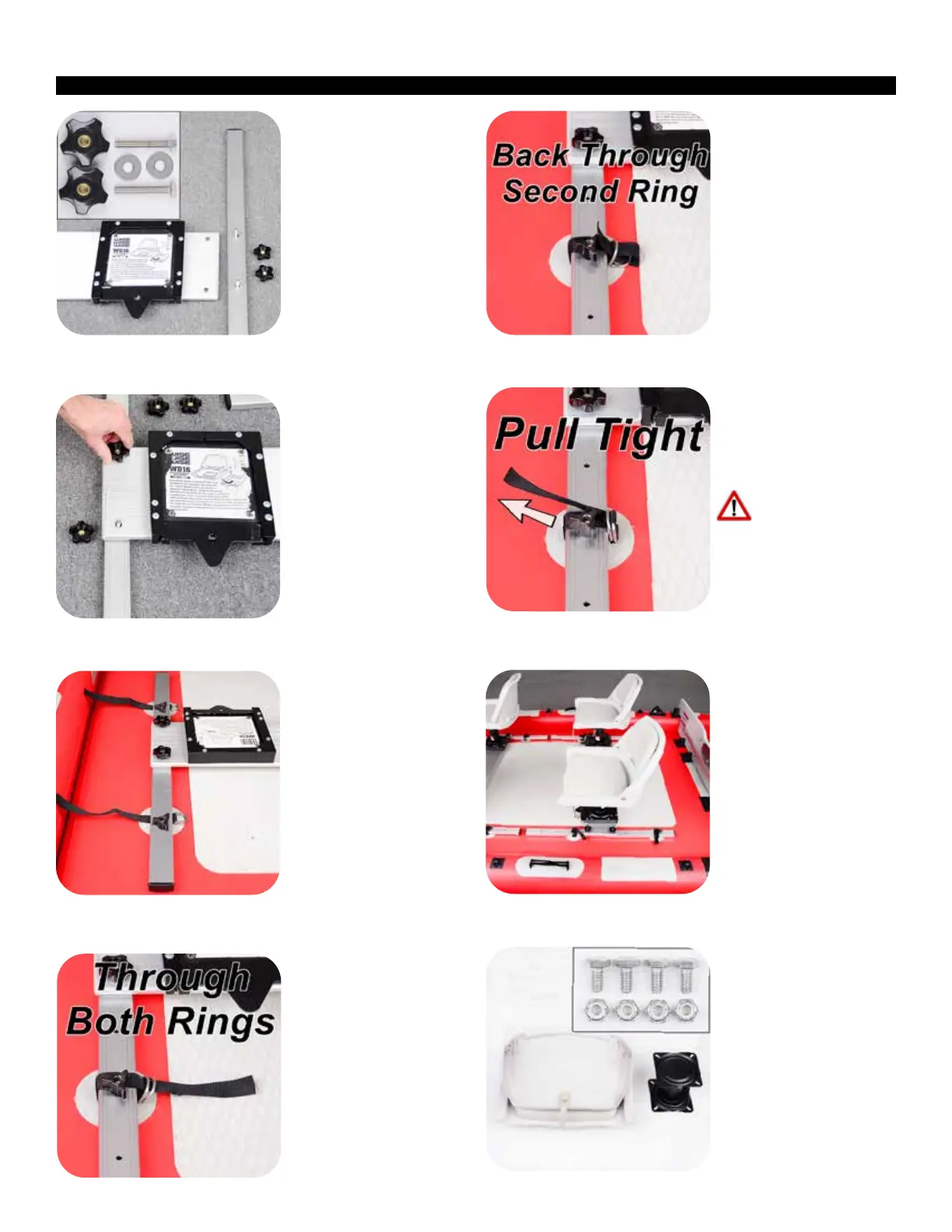

Place frame on the boat.
Frame bars go on top of
floor hold down straps.
Line up adjustment knobs
with hold down straps.
Straps go between the
knobs so the frame cannot
move.
Place a washer on each screw,
run screw through the holes
in the bar. Place the board
over the screws so they are
inserted through the board.
Secure screw with knob.
Note: No washer between
the knob and the board, the
rough top of the board will
help hold the knob from
loosening.
FastCat14.4 | ASSEMBLY & INFLATION
Run strap over bar and
through both rings.
Run strap back through the
first ring.
Pull the strap tight.
Repeat with the other
straps.
Caution: Check straps
for tightness before each
use.
Attach pedestal to Locking
Swivel Seat. Locate swivel
seats, 7” pedestals and
hardware.
Pedestal to seat hardware:
4 - ¼” x ½” hex head screws
4 - ¼” locking nuts
Adjust the seat swivel so it
the bottom and top plate are
out of alignment with each
other to give room for
installing the ½” screws.
Seat Frame Placement
Correct loading of the Fast-
Cat14.4 is important for
safety, performance, and
comfort. Seat frames can
be adjusted fore and aft
by moving the adjustment
knobs. When operating
FastCat14.4 without pas-
sengers, move the adjust-
ment knobs to the back
holes, slide frame forward
and strap frame down.
Attach aluminum bars to
seat frame board using the
hardware:
Seat Frame Hardware (for
each Frame):
4 - M8 x 50 hex head bolts
4 - 1” flat washers
4 - black knobs
To Next Page
