INSTALLATION
MANUAL
Product: Document #: Rev: Page:
SEAKEEPER 6 90402 1 10 of 10
Section 1: MECHANICAL INSTALLATION

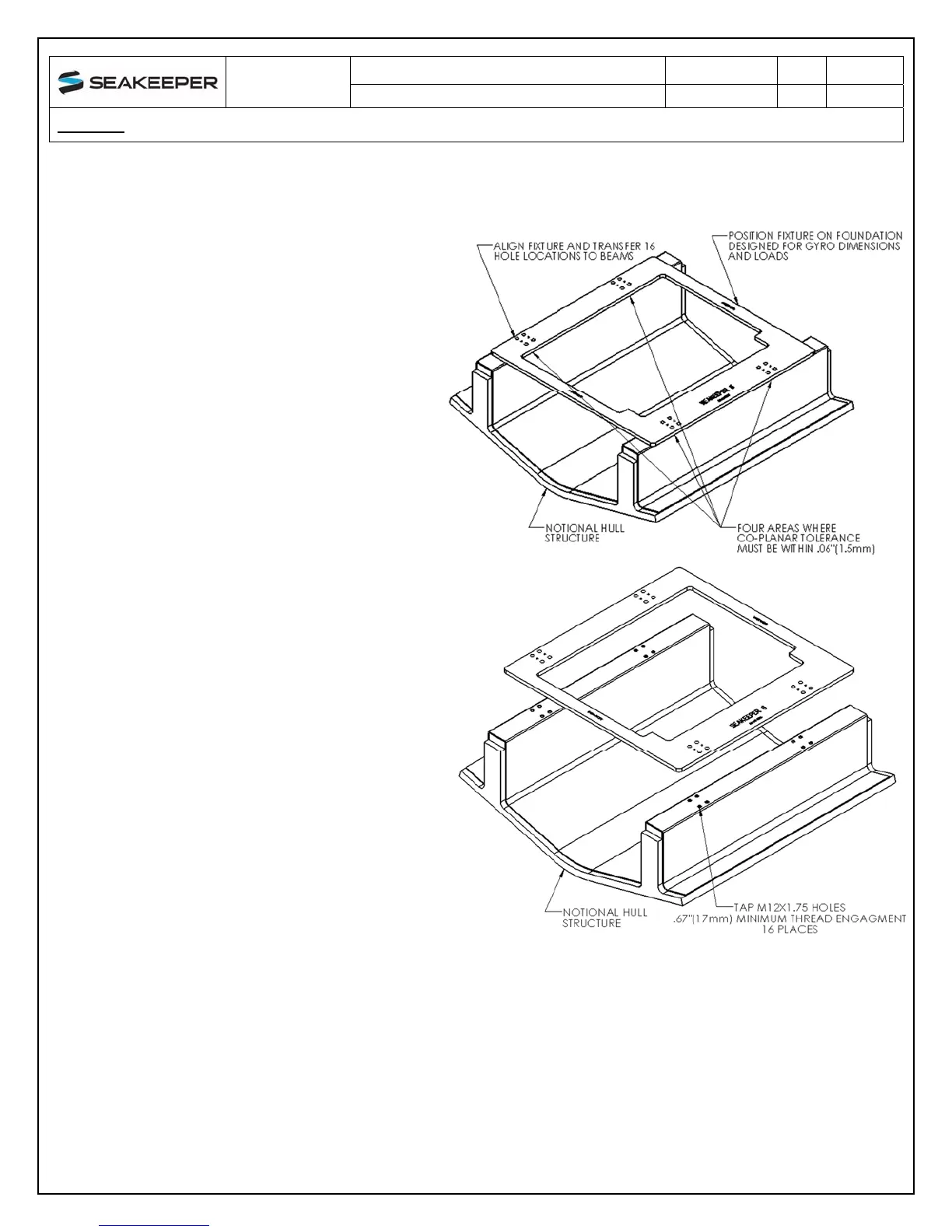

1.5.2 Transfer of Holes to Boat Structure
1) Lower assembled fixture onto hull
structure.
2) The four areas where the feet of
the Seakeeper will rest should be
coplanar to within .06” (1.5mm).
See Figure 9.
3) Align fixture in desired location and
transfer holes from fixture plate to the
foundation structure. Note that holes
in fixture plate are ø0.487” (12 mm).
A transfer punch is supplied with
installation template kit, P/N 90392.
4) Remove fixture and drill and tap
M12X1.75 holes in foundation at
marked locations to mate with holes in
the foundation. Take special care to
drill perpendicular to mounting surface.
Remove any impeding obstructions.
