Section 1: MECHANICAL INSTALLATION
that the overall dimensions of the foundations are square and level and that the adhesive gap is
within Seakeeper’s maximum recommended thickness of .13” or 3mm.
Note: Do NOT use the installation fixture to establish Seakeeper envelope dimensions.
Refer to Drawing No. 90399 for envelope dimensions. A 3-D model of the Seakeeper is
available on the Seakeeper website (www.seakeeper.com) to aid in designing the
Seakeeper foundation and the space around the Seakeeper.
NOTE: MAKE SURE NO OBSTRUCTIONS FROM THE HULL STRUCTURE CAN BE SEEN WITHIN THE INSIDE
OF THE INSTALLATION TEMPLATE KIT (INSIDE THE MARKED RED LINES). SEE DRAWING NO. 90399.

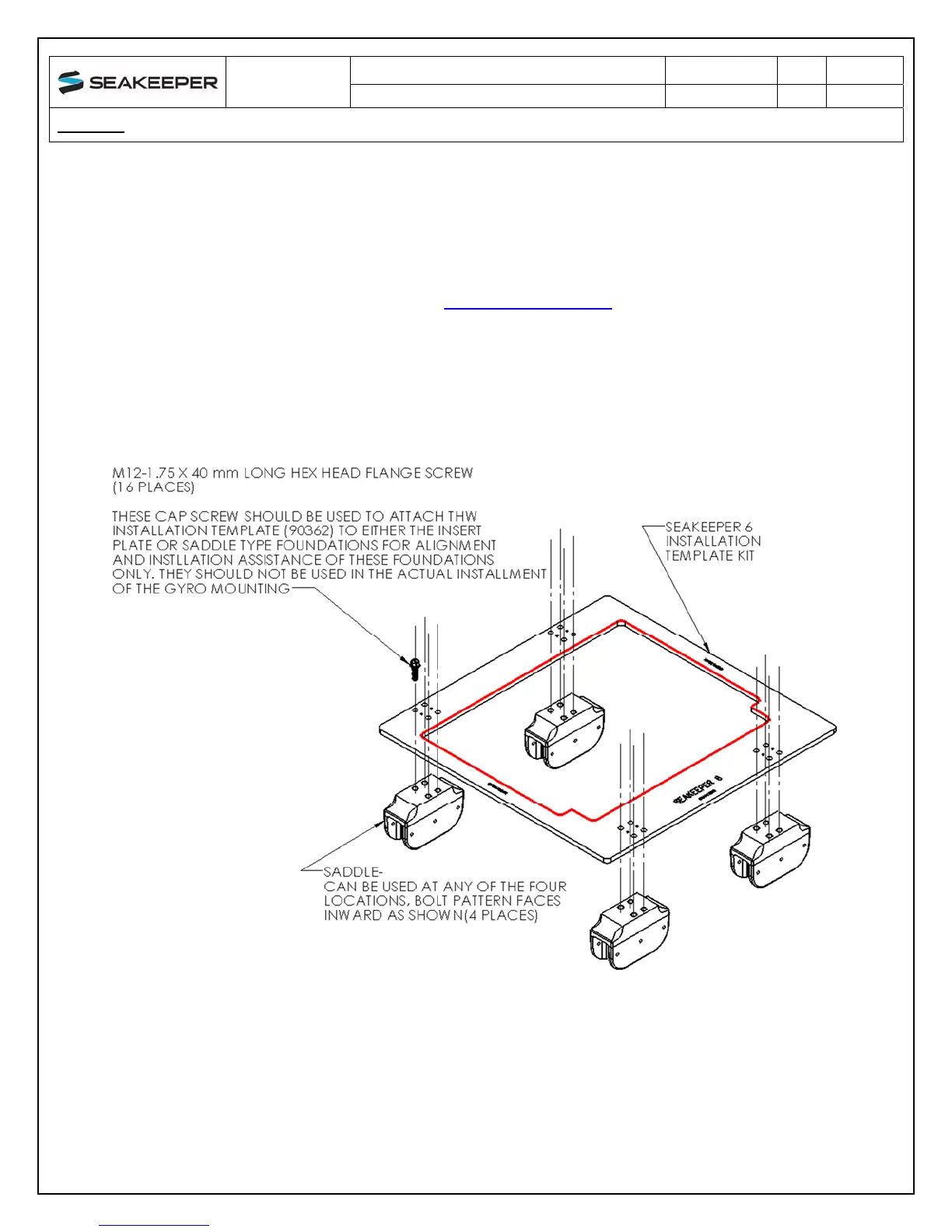

FIGURE 6 – EXPLODED VIEW OF SADDLE INSTALLATION FIXTURE
