610mm approx.

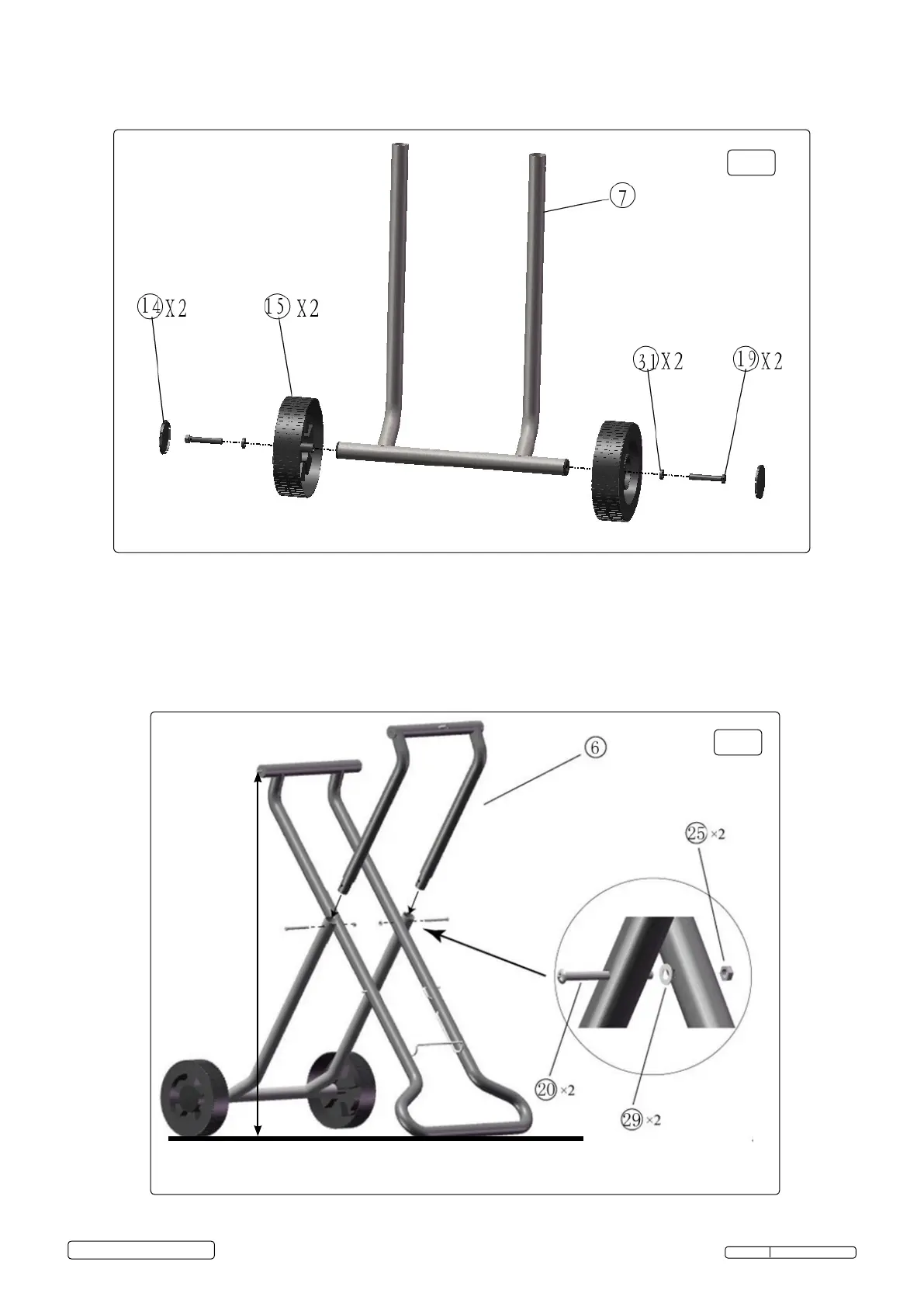

4.3 Fit wheels to lower frame item 7.
4.4 Connect upper frame item 6 to lower frame item 7. Screw fix at this stage to complete "scissor" collapsible frame. The 710mm
dimension is for reference only. See section 5.2 for barbecue module fitting.
fig.8
