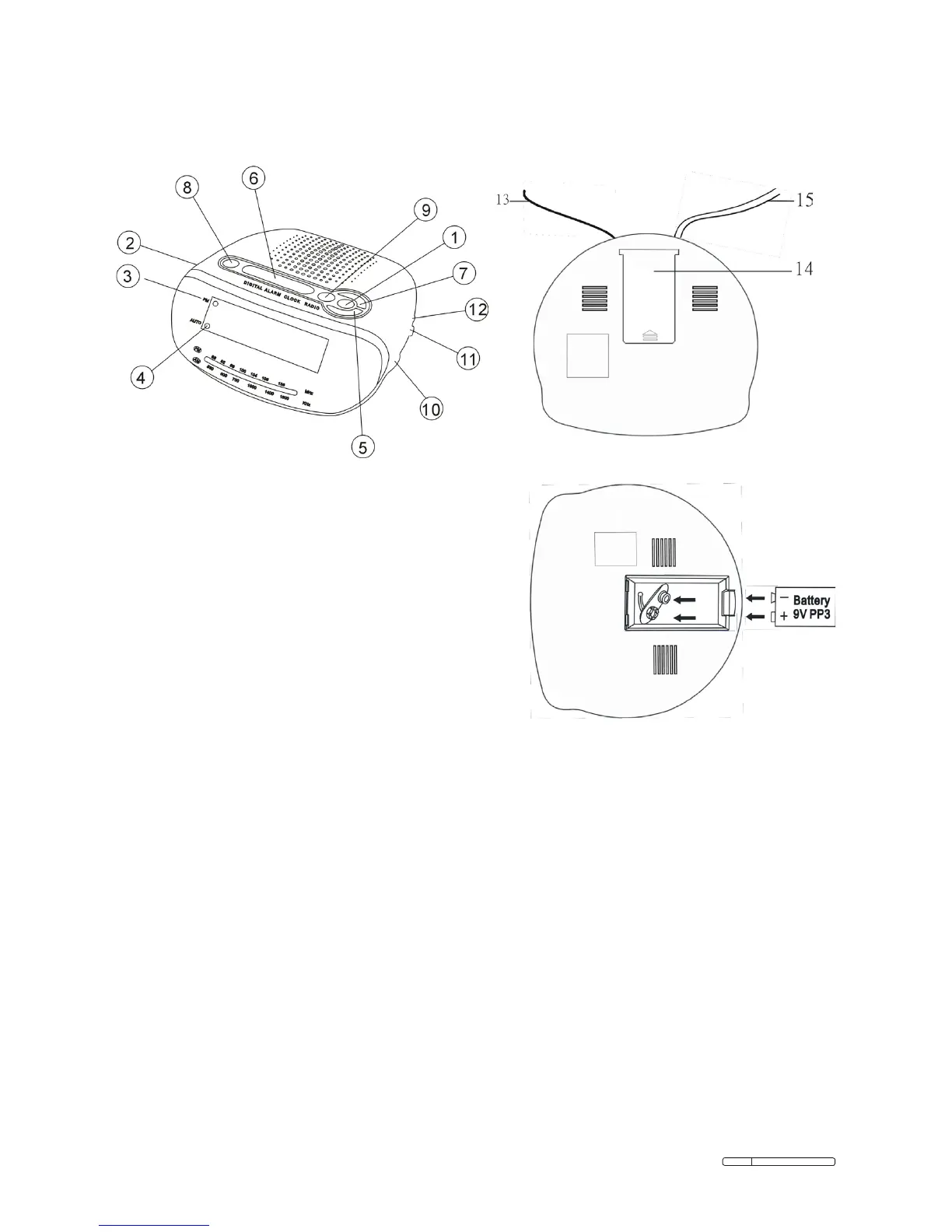

PARTS2.
Top View Underside
Time button1.
Function switch 2.
PM indicator 3.
Auto Indicator 4.
Minute button 5.
Snooze button 6.
Hour button7.
Sleep set button 8.
Alarm button9.
Tuning control knob 10.
Band switch11.
Volume control knob12.
FM antenna 13.
Battery compartment 14.
Power Cable15.
3. FITTING THE BACK UP BATTERY
It is advisable to t a battery (not supplied) in the battery compartment to prevent the loss of the display time and settings
during a power failure.
To install the battery
3.1 Slide off the battery compartment cover from the underside of the unit.
3.2 Insert 1 x 9V heavy-duty alkaline battery. Insert the positive (+) round terminal of the battery into the negative connector.
Fit the round connector into the negative (-) terminal of the battery. Take care to observe the correct polarity (+/ -).
3.3 Ret the battery compartment cover.
3.4 DO NOT expose the batteries or the installed batteries to excessive heat (e.g. re, sunshine or position close to radiators
etc.).
Note! Dispose of used batteries responsibly at local authority household waste recycling facility.
DO NOT dispose of batteries in a re as the batteries may explode.•
Only use 9V batteries in this appliance.•
Be sure to insert correctly taking care to observe the correct polarity (+ and -).•
Use only batteries of the same or equivalent type as recommended.•
DO NOT• recharge non-rechargeable batteries.
Never try to dismantle batteries.•
DO NOT• short-circuit the supply terminals.
Always remove exhausted or dead batteries from the product, do not dispose of in re.•
Remove batteries from the product before extended storage.•
CR01 Issue No: 1 - 24/06/09
